Using data from the Experimental Earthscape Facility (Jurassic tank) to visualize basin-scale stratigraphic architecture

Thomas Hickson
University of St. Thomas
Author Profile

This activity was selected for the On the Cutting Edge Reviewed Teaching Collection

This activity has received positive reviews in a peer review process involving five review categories. The five categories included in the process are

  • Scientific Accuracy
  • Alignment of Learning Goals, Activities, and Assessments
  • Pedagogic Effectiveness
  • Robustness (usability and dependability of all components)
  • Completeness of the ActivitySheet web page

For more information about the peer review process itself, please see

This page first made public: Jul 3, 2006


Students use digital imagery from an experimental subsiding sedimentary basin to visualize the controls on basin-scale facies architecture, Walther's law, and sequence stratigraphic concepts. Students must predict which of three variables (base level, sediment supply, or subsidence rate) was altered to produce the stratigraphy. This project helps forge a strong link between real-world depositional environments, their resultant deposits, and how these systems respond to external and internal forcings.

Used this activity? Share your experiences and modifications



Undergraduate required course in sedimentology and stratigraphy, offered at the junior level. This is the last of three, long projects that comprise the entire course.

Skills and concepts that students must have mastered

Students should have some exposure to the facies concept and they should know what is meant by 'depositional environment.' They should know what a stratigraphic section looks like and they should have some minor background on Walther's Law (but this is great place to introduce it, too).

How the activity is situated in the course

This is the last of three, long projects that comprise the bulk of my course. Each project zooms outward in terms of scale, covering larger and larger portions of sedimentary basins. I like it in this position because it integrates so much of the range of sedimentary geology.


Content/concepts goals for this activity

Walther's Law; chronostratigraphic correlation; sequence stratigraphy; basin modeling; depositional environments; tectonics and sedimentation

Higher order thinking skills goals for this activity

Students must formulate an hypothesis and support it based on their interpretation of the digital image data. They must synthesize a range of ideas and concepts to do this and they are forced to choose an interpretation and support it. The project also forges a strong link between stratigraphy and analog modeling of sedimentary basins.

Other skills goals for this activity

Poster preparation and presentation. Computer drafting of posters.

Description of the activity/assignment

Prior to this project, students have measured sections in the field and have had a lot of experience interpreting physical processes of sedimentation from real sedimentary sequences. They have had in-depth exposure to three depositional systems (deep water, shelf, and beach), but not much exposure to others. I typically show them some good quality seismic lines of a continental margin right before this project begins. I take them on a tour of the tank, but this is not required. Instead, students can read the GSA Today article on Jurassic Tank that summarizes how it works, what it's used for, etc.:

Paola,C., Mullin, J., Ellis, C., Mohrig, D., Swenson, J., Parker, G., Hickson, T., Heller, P., Pratson, L., Syvitski, J., Sheets, B., Strong, N., 2001, Experimental Stratigraphy; GSA Today, Geological Society of America, Vol. 11, pp. 4-9.

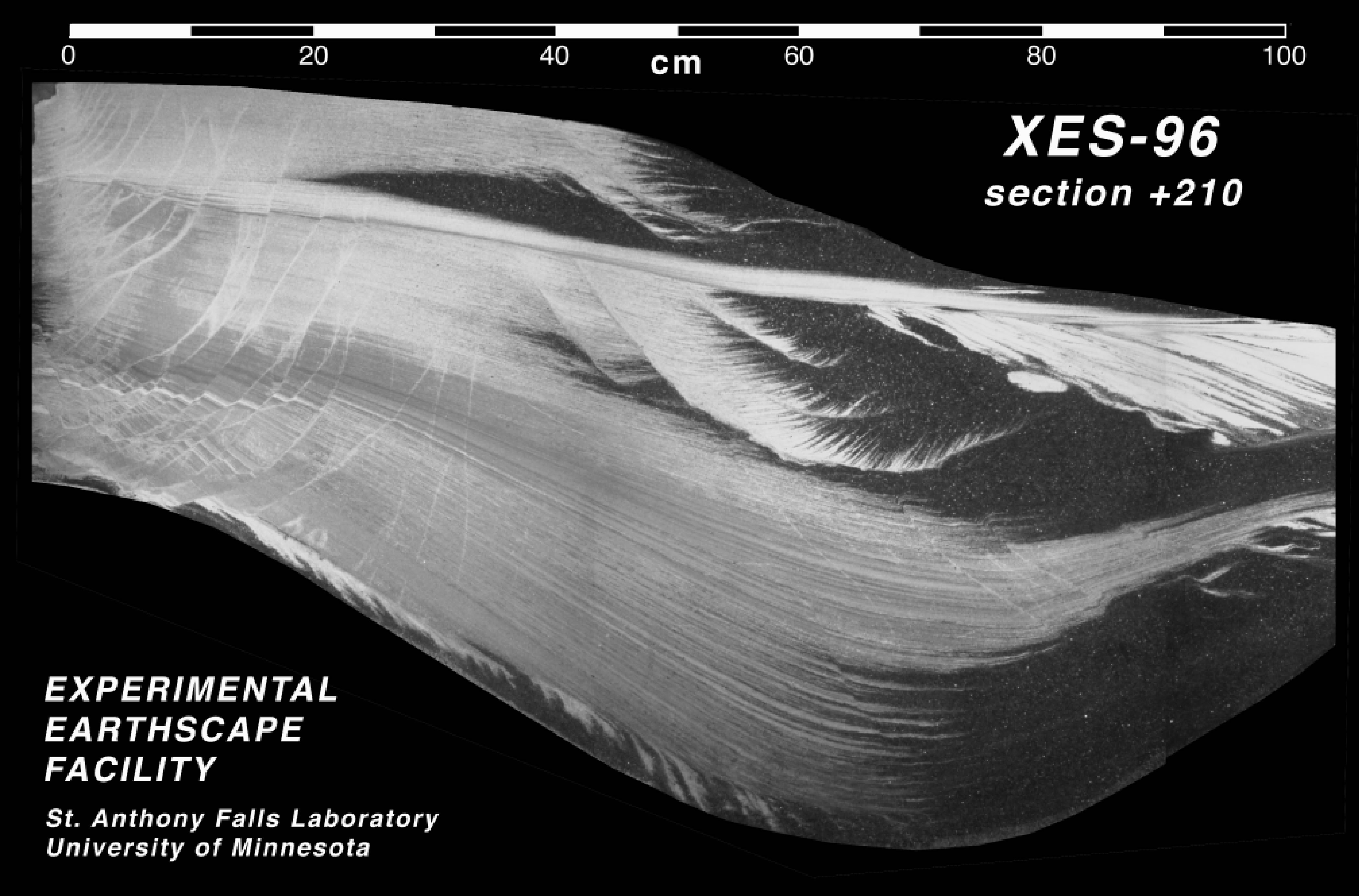

The students have three weeks to complete the poster that is the final product for this project and, because this is part of a project-based course, I do very little formal lecturing during this project. I act as a facilitator, directing students to readings, Fuzzim basin modeling software, web resources, and, importantly, the resources that help them understand how Jurassic Tank works. In class, students are given a dip section image of stratigraphy produced in Jurassic Tank, their 'outcrop' or 'seismic line'. They then must answer three major questions (each a different component of their poster). First, what real-world depositional environments might the JT deposit effectively emulate? JT deposits can be viewed as an analog for several different, real-world environments (laterally linked and vertically stacked via Walther's Law); on a digital version of their dip section, students label these different environments by outlining their deposits in different colors and they provide images of these environments downloaded from the web or scanned in. Second, what would measured sections look like at three different locations on the cross section and what would a correlation diagram look like? The measured sections should embody the real-world depositional environments that they outlined above (i.e. the facies should be realistic representations of facies encountered in each depositional environment). The stratigraphic sections shouldn't just be coal and sand, but should take into account the actual sedimentary features one might expect to find in the depositional environments that they cross. Third, what parameter was changed to create the stratigraphy in the dip section and how was that parameter changed through time? At this point, students know that one of three rates were changed: rate of base level rise or fall, subsidence rate, or sediment feed rate. They need to choose one and defend their interpretation. The beauty of this exercise is that a defensible interpretation can be made for any of these forcings; this is an important concept to get across in the end.

Determining whether students have met the goals

They submit a .pdf version of their poster and I assess the overall quality, depth of analysis, quality of the analysis, etc. I have not developed a grading rubric for this poster yet, but I intend to.

More information about assessment tools and techniques.

Download teaching materials and tips

Other Materials

Supporting references/URLs

Paola,C., Mullin, J., Ellis, C., Mohrig, D., Swenson, J., Parker, G., Hickson, T., Heller, P., Pratson, L., Syvitski, J., Sheets, B., Strong, N., 2001, Experimental Stratigraphy; GSA Today, Geological Society of America, Vol. 11, pp. 4-9.
