Systems Geobiology Powers of 10
Bruce W. Fouke
,
Department of Geology, Department of Microbiology, Institute for Genomic Biology, University of Illinois Urbana-Champaign
This activity was selected for the On the Cutting Edge Exemplary Teaching Collection
Resources in this top level collection a) must have scored Exemplary or Very Good in all five review categories, and must also rate as "Exemplary" in at least three of the five categories. The five categories included in the peer review process are
- Scientific Accuracy
- Alignment of Learning Goals, Activities, and Assessments
- Pedagogic Effectiveness
- Robustness (usability and dependability of all components)
- Completeness of the ActivitySheet web page
For more information about the peer review process itself, please see https://serc.carleton.edu/teachearth/activity_review.html.
- First Publication: April 19, 2010
- Reviewed: October 22, 2012 -- Reviewed by the On the Cutting Edge Activity Review Process
Summary

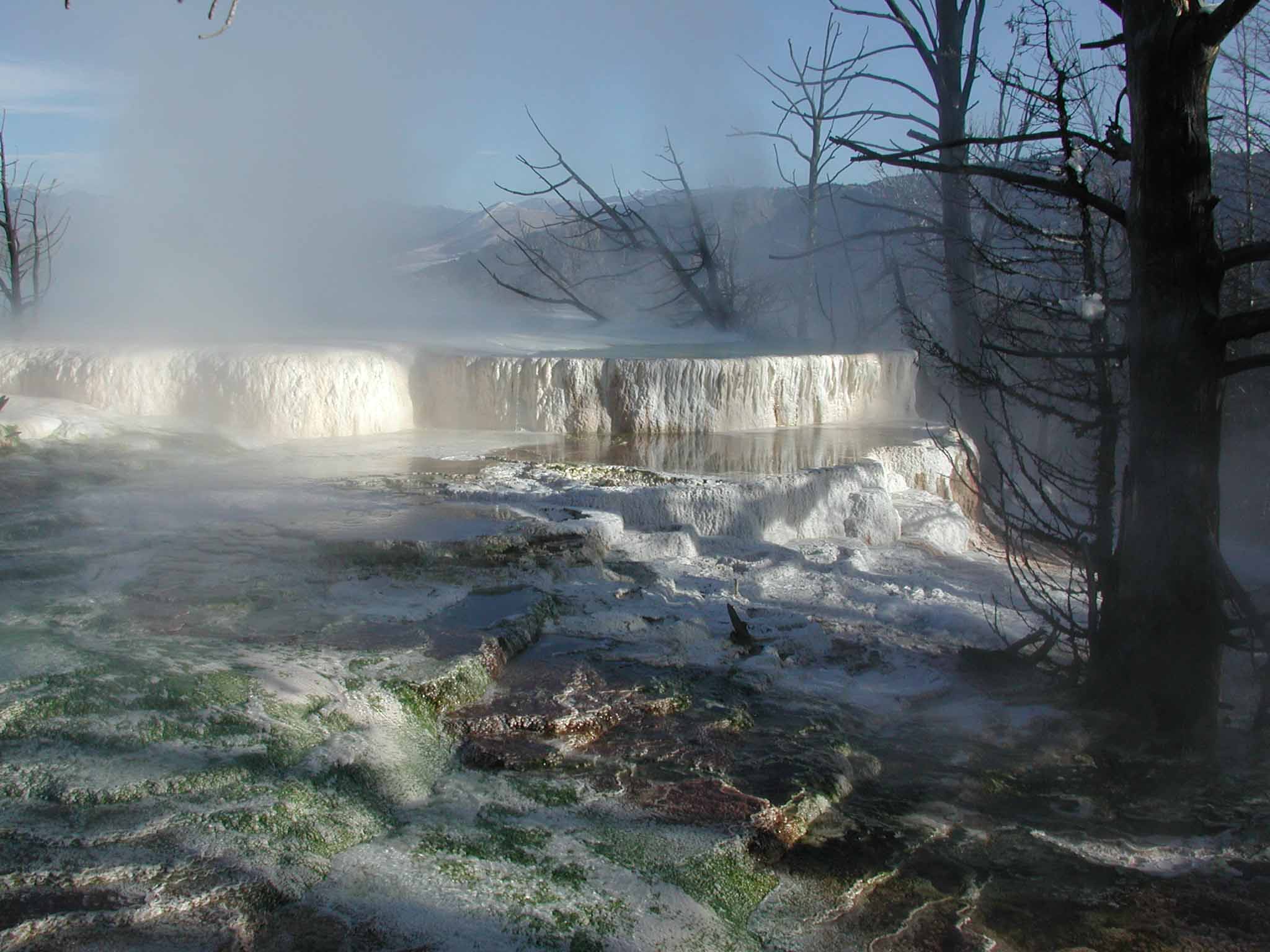

Angel Terrace Spring AT-1, Mammoth Hot Springs, Yellowstone National Park
![[creative commons]](/images/creativecommons_16.png)
Provenance: Created by the author of the page containing this file.
Reuse: This item is offered under a Creative Commons Attribution-NonCommercial-ShareAlike license http://creativecommons.org/licenses/by-nc-sa/3.0/ You may reuse this item for non-commercial purposes as long as you provide attribution and offer any derivative works under a similar license.
Systems Geobiology is the study of complex interactions arising from the interplay of biological, geological, physical, chemical and even social systems across multiple spatial (microns to thousands of kilometers) and temporal (nanoseconds to eons) scales.
Systems Geobiology is distinct from Systems Biology and Biocomplexity in that these complex interactions are linked geological processes such a sediment deposition and mineral precipitation, thus allowing modern complex systems to be reconstructed from the ancient rock record.
Therefore, Systems Geobiology requires: (1) Tracking and prediction of organismal response to, and control of, environmental change utilizing the geological record. (2) Analysis of suites of fundamental physical, chemical and biological components within their geological and environmental context. (3) Linkage of biological processes with geological processes (i.e. sediment deposition, mineral precipitation, fluid hydrodynamics, etc.). (4) Integration across broad scales of time (nanoseconds to eons) and space (nanometers to light years).
This exercise allows students to systematically evaluate the spatial and temporal Powers of 10" scales across which it is necessary to conduct Systems Geobiology analyses.
Context
Audience
Undergraduate Course (Juniors and Seniors)
Graduate Course (M.Sc., Ph.D. and Postdocs)
Skills and concepts that students must have mastered
Students need to know the metric system for spatial and temporal measurements, as well as the numeric prefixes (yocto-, zepto-, atto-, femto-, pico-, nano-, micro-, milli-, kilo-, mega-, giga-, tera-, peta-, exa-, zetta, yotta-). Students also need to know the basic concepts of exponential notation, orders of magnitude differences and have seen the Powers of 10 movie.
How the activity is situated in the course
This activity is conducted in the second class. In the first class, a review is provided of: (1) the metric system for spatial and temporal measurements; (2) the numeric prefixes (yocto-, zepto-, atto-, femto-, pico-, nano-, micro-, milli-, kilo-, mega-, giga-, tera-, peta-, exa-, zetta, yotta-); (3) exponential notation; (4) orders of magnitude differences; and (5) Powers of 10 movie.
Goals
Content/concepts goals for this activity
The goal of this activity is to have students transition from an external theoretical understanding of the spatial and temporal scales over which integrative Systems Geobiology science is conducted, to a tangible systematically first hand experience with the scales required for conducting holistic integrative science.
Higher order thinking skills goals for this activity
The higher order thinking skill of this exercise is to be able to turn their "Powers of Observation" into a "Powers of 10" numerical breakdown and structuring of a complex environment.
Other skills goals for this activity
The primary goal is to utilize and practice their Socratic reasoning skills via observation and knowledge of spatial and temporal frameworks.
Description of the activity/assignment
The newly emerging field of Systems Geobiology requires linkage of biological processes with geological processes across broad scales of time (nanoseconds to eons) and space (nanometers to light years). Students are asked to specifically identify the scales of time and space across which Systems Geobiology research needs to be completed. They do this by making direct observations of a field photograph taken at Mammoth Hot Springs in Yellowstone National Park. Students then translate 10 of their observations onto Powers of 10 charts. This is followed by a class discussion of their results on topics such as: What is missing? How will these analyses be synthesized across such broad scales?
Determining whether students have met the goals
The students evaluate the completeness of each other's observations and Powers of 10 formulation.
More information about assessment tools and techniques.Teaching materials and tips
Activity Description/Assignment (Acrobat (PDF) 3.9MB Apr18 10)
Solution Set
This file is only accessible to verified educators. If you are a teacher or faculty member and would like access to this file please enter your email address to be verified as belonging to an educator.
