Unit 2: Identifying faulting styles, rates and histories through analysis of geomorphic characteristics (Lidar)
These materials have been reviewed for their alignment with the Next Generation Science Standards as detailed below. Visit InTeGrate and the NGSS to learn more.
OverviewStudents observe and identify different faulting styles using LiDAR-derived topographic data and Google Earth images. They quantify rates of change and use a model to convey changes on Earth's surface.
Science and Engineering Practices
Using Mathematics and Computational Thinking: Apply ratios, rates, percentages, and unit conversions in the context of complicated measurement problems involving quantities with derived or compound units (such as mg/mL, kg/m3, acre-feet, etc.). HS-P5.5:
Planning and Carrying Out Investigations: Select appropriate tools to collect, record, analyze, and evaluate data. HS-P3.4:
Engaging in Argument from Evidence: Make and defend a claim based on evidence about the natural world or the effectiveness of a design solution that reflects scientific knowledge and student-generated evidence. HS-P7.5:
Developing and Using Models: Develop and/or use a model (including mathematical and computational) to generate data to support explanations, predict phenomena, analyze systems, and/or solve problems. HS-P2.6:
Analyzing and Interpreting Data: Compare and contrast various types of data sets (e.g., self-generated, archival) to examine consistency of measurements and observations. HS-P4.4:
Analyzing and Interpreting Data: Analyze data using tools, technologies, and/or models (e.g., computational, mathematical) in order to make valid and reliable scientific claims or determine an optimal design solution. HS-P4.1:
Cross Cutting Concepts
Stability and Change: Change and rates of change can be quantified and modeled over very short or very long periods of time. Some system changes are irreversible. HS-C7.2:
Patterns: Empirical evidence is needed to identify patterns. HS-C1.5:
Patterns: Different patterns may be observed at each of the scales at which a system is studied and can provide evidence for causality in explanations of phenomena HS-C1.1:
Disciplinary Core Ideas
Natural Hazards: Mapping the history of natural hazards in a region, combined with an understanding of related geologic forces can help forecast the locations and likelihoods of future events. MS-ESS3.B1:
Plate Tectonics and Large-Scale System Interactions: Plate tectonics is the unifying theory that explains the past and current movements of the rocks at Earth’s surface and provides a framework for understanding its geologic history. Plate movements are responsible for most continental and ocean-floor features and for the distribution of most rocks and minerals within Earth’s crust. HS-ESS2.B2:
This material was developed and reviewed through the GETSI curricular materials development process. This rigorous, structured process includes:
- team-based development to ensure materials are appropriate across multiple educational settings.
- multiple iterative reviews and feedback cycles through the course of material development with input to the authoring team from both project editors and an external assessment team.
- real in-class or field camp/course testing of materials in multiple courses with external review of student assessment data.
- multiple reviews to ensure the materials meet the GETSI materials rubric which codifies best practices in curricular development, student assessment and pedagogic techniques.
- created or reviewed by content experts for accuracy of the science content.
This page first made public: Dec 14, 2015
Unit 2 Learning Outcomes
- Students will determine the most reliable geomorphic features to identify active faults and will learn how these features may be similar or different for different fault types.
- Students will identify variations in their ability to evaluate and quantify characteristic geomorphic features and changes to these features using different image types (lidar images vs. Google Earth satellite images). They also will define the accuracy of data they collect from the two types of images.
- Students will consider that the images represent a form of time series that can be used to evaluate the relationship between the earthquake cycle and landscape evolution.
Supports Module Goals 2 and 3 and Earth Science Big Ideas ESBI-1: Earth scientists use repeatable observations and testable ideas to understand and explain our planet, ESBI-3: Earth is a complex system of interacting rock, water, air, and life, and ESBI-4: Earth is continuously changing. (links open in new windows)
Unit 2 Teaching Objectives
- Cognitive: Characterize geomorphic features that correspond to different fault types and identify specific fault types using lidar and Google Earth satellite images. Develop fault motion and surficial processes explanations for the spatial and temporal variations observed.
- Promote skills in reading and interpreting maps and topographic profiles, some of which illustrate snapshots in time and some of which illustrate changes over time (time series).
- Facilitate a synthesis of multiple types of observational tools and basis for measurements (lidar, Google Earth) to make predictions about the behavior of a natural system.
- Encourage reflection about the various local, regional, and climate-dependent interplay between fault displacements and surficial processes that may contribute to changes in a natural system and interplay and competition between these mechanisms.
- Encourage reflection about the role of uncertainty in scientists' understanding of a complex system.
Context for Use
The content in Unit 2 is appropriate for advanced geology/geoscience courses conducted at the junior and/or senior level in which geodesy data can be introduced in conjunction with traditional presentations of material on faults and faulting; this would typically be in a course on structural geology but could also be part of a course on tectonics, geomorphology, geophysics, or advanced geohazards. Units 2 and 3 activities can easily be adapted for lecture and lab settings as a series of interactive lecture activities, a lengthier in-class activity, or as part of a laboratory investigation of the use of geodesy to understand faulting and the recognition of active fault types.
In the Imaging Active Tectonics module, Unit 2 may follow a preparatory exercise that provides experience with the basic tools and also establishes a set of criteria for recognizing the geomorphic features most characteristic of different fault types. Some preparatory lecture time may be required to introduce the concept of tectonic geomorphology, such that students are aware of the relationship between the creation of topographic relief through faulting and the surficial processes that are actively modifying the landscape. Key features include fault scarps; the position, shape, and longitudinal profile of streams; and the location of stream terraces, water gaps, wind gaps, and altered stream networks (e.g. stream piracy). Since these features develop and are modified over time, application of geochronology needs to be considered as well as the potential for changes in climate that can influence sediment transport and/or deposition. Since this work is most effective when there are high-quality images to analyze, we are complementing satellite images with lidar images (primarily airborne lidar). The resolution of lidar data allows for vertical and horizontal resolution at the 20–40 cm level.
If the entire two-week module will not be utilized, we recommend pairing Unit 2 with Unit 4: The phenomenology of earthquakes from InSAR data and Unit 5: How do earthquakes affect society? to give students an opportunity to investigate the recognition of a fault, the specific characteristics of fault geometry and displacement for a specific earthquake, and assessment of the impact of an earthquake on urban and developing population centers. Unit 1: "If an earthquake happens in the desert . . .?" provides the motivation for undertaking the other exercises, but this context may be provided in lectures and other instructional modes such as a PowerPoint presentation.
Description and Teaching Materials
In Unit 2, students learn that geomorphic features of the landscape strongly reflect the type of active fault that is present, and they learn the history of fault displacement. In many if not all cases, the type of fault and history of fault movement can be determined. To that end, in the initial activity in Unit 2 (student exercise Section 2.2a), students begin by completing a brief, written exercise that requires them to identify key geomorphic features associated with active faults, which may have been described in previous lectures and assigned readings. This ideally includes example images of the three main fault types with the fault trace shown so the students can examine the images to identify specific geomorphic features associated with each type of fault. This can be done using either Internet access with prepared overlays for Google Earth or alternatively, instructors can print hard copies of the maps or project an image of the maps and complete the exercise during class time.
In Section 2.2b of the Student Exercise, students are provided access to a set of lidar images that can be evaluated separately or as an overlay displayed on a Google Earth satellite image. There are several ways to implement Unit 2; one is to follow a traditional laboratory format, where students work in small groups and individually and submit a written report at the conclusion of the lab. Alternatively, a mixture of techniques may be used including discussions in small, stationary groups or small, mobile groups in the context of a gallery walk. The lab handout provided with this exercise has been written with the assumption that the material will be covered in a traditional laboratory fashion with limited large group interaction. Small groups may be created to facilitate discussion, but individual reports would be required to provide a means of assessment of individual progress.
If a more interactive process is desired, or if this is to be undertaken as part of a lecture period, portions of the material can be handled differently. For Section 2.3 on the Wallace Creek segment of the San Andreas Fault, multiple groups can be formed and each group can work on a different portion of the fault. Students will measure small offsets in their assigned section(s) of the fault and plot the offsets as a function of position along the fault. If the errors introduced by differences in the measurement techniques used are reasonable, then the scale and repeatability of individual offsets should become apparent as shown in the plot from Zielke et al., 2010.
If you are unfamiliar with Google Earth, there are instructions for basic use of this program that can be found on the SERC website Teaching with Google Earth. Alternatively all the same data sets are available below as posters that can be printed at a variety of sizes for running the activity without computers.
Lidar data are primarily from OpenTopography data portal and acquired by National Center for Airborne Laser Mapping (NCALM).
Unit 2 student exercise (Microsoft Word 212kB Nov27 15)
LiDAR KMZ data files - normal, reverse, strike-slip (Zip Archive 96.4MB Dec5 15)
LiDAR KMZ Wallace Creek (San Andreas Fault) (KMZ File 15.3MB Apr6 15) (in case it is handy to have the Wallace Creek lidar data separate, it is also within the larger zipped lidar KMZ data file)
LiDAR Visualization Images - normal, reverse, strike-slip (Zip Archive 29.8MB Apr7 15)

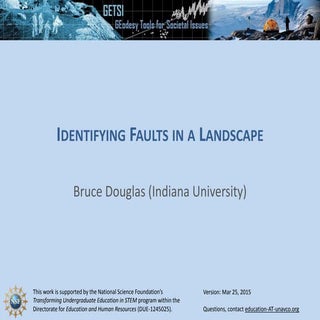

Unit 2 Tectonic Geomorphology Presentation (PowerPoint 2007 (.pptx) 4MB Nov27 15)

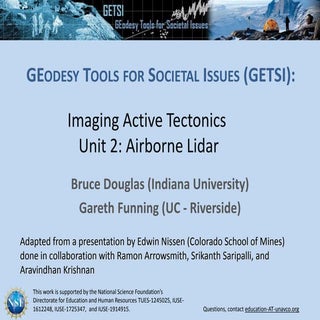

Unit 2 LiDAR Presentation (PowerPoint 2007 (.pptx) 32.9MB Feb8 19)
Teaching Notes and Tips
- Before students undertake the lab, they should be made aware of some useful tips and resources, and ideally, have the chance to practice/investigate their use and implementation. If any of the Google Earth (KMZ) files do not appear to be rendering properly, encourage students to zoom in or out or try to view the data from directly overhead rather than obliquely. This usually clears up viewing issues.
- The Google Earth and pdf map files provided in this exercise contain faults as mapped by the USGS Quaternary Fault Database. This database is very valuable for identifying potentially active faults; however you will want to caution students that many of the fault locations have not been updated since the acquisition of lidar data. Students may note that the faults are not in "the right place" based on where the fault is clearly visible in the high resolution lidar images. This is an opportunity to discuss with the students how scientific knowledge can be refined as methods improve. Using this newer data, students can "do better" than USGS scientists because they are using more recent technology.
Adding study areas
Although this unit provides a suite of case study sites, you may wish to have your students access more data sets so they know how to search and access lidar data in the future. OpenTopography provides an easily accessible data portal for lidar. A selection of the OpenTopography datasets come already available in Google Earth format. If you wish to access any data sets from OpenTopography that do not automatically come with Google Earth KMZ files (as described in #1 below), you can follow the UNAVCO instructions to generate a KMZ of any OpenTopography lidar data set. OpenTopgraphy Video Tutorials also describe this process and other data access procedures.
Unit 2 supplemental student handout (Microsoft Word 2007 (.docx) 349kB Nov27 15) - Example handout containing the information below
- Accessing lidar data through OpenTopography
The OpenTopography portal is a collection of open access lidar data. Over 150 raw data sets (i.e. point clouds) are available, and can be manipulated and processed into more useful products, such as bare earth DEMs, with specialized software (e.g. the latest version of ArcGIS; this is beyond the scope of this lab, but detailed instructions on how to do this can be found online) For around 30 of the data sets, kmz files of hillshade bare earth images are available, which are perfect for our purposes. To access these:
- Visit www.opentopography.org.
- Click on the Data tab beneath the logo at the top of the page.
- Click on the Google Earth Files link that will appear beneath the Data tab.
- A list of download links should appear below. You can filter them by location (state), if that is useful, e.g. to obtain data from the major active faults in California, which are covered by these files:
- EarthScope Southern & Eastern California Lidar Imagery (#24)
- EarthScope Northern California Lidar Imagery (#28)
- To download these two files, right-click on the links and choose "Save Link As" (or the equivalent in your browser).
- You can also view OpenTopgraphy Video Tutorials to help become familiar with this process.
If you are unfamiliar with Google Earth, there are instructions for basic use of this program that can be found on the SERC website Teaching with Google Earth. After a bit of practice, students can learn to manipulate the main imagery controls. Once students find a particularly useful or instructive view and want to save the on-screen image in Google Earth (perhaps to include in a project report), they should:
- Go under the File menu and highlight Save with the mouse pointer; from the submenu that should appear, select Save Image;
- Choose a suitable file name and place to save it and click OK;
- You now have a jpeg screenshot!
Producing annotated jpeg or png images is fairly easy when you have access to packages such as Adobe Photoshop or Illustrator or Microsoft PowerPoint. There are also some online alternatives. One we found that does a good job is Pixlr Editor (pixlr.com/editor). Here, you can upload an image to the site from your computer, add simple line and text annotations, and save it back to your computer, all with an interface reminiscent of Photoshop. Be sure to make the text of your annotations big enough to be legible when your image is imported into a word processor.
Various free methods are available online for the simple plotting of histograms. For those with spreadsheet skills, it is possible to use the charting capabilities of Google Docs spreadsheets for this purpose. However, for most purposes, I would advise using the online tool at www.shodor.org/interactivate/activities/Histogram/ which works well.
- From the drop-down menu "Select a data set" and choose "My Data."
- Click the Clear Title and Clear Data buttons.
- Enter an appropriate X-axis title under Title.
- Enter your data in the large window at the bottom, one data point per line. (It is probably best if you do this as you go along, i.e. enter data as you collect it, otherwise it gets a little tedious.) When you are done, click Update Data.
- Enter an appropriate interval (bin) size under Interval Size and click Update Interval.
- Enter an appropriate X minimum value (ideally a multiple of your interval size) and then click Set X Min.
- Once you are happy with your histogram, make a screen grab of it.
- Press Shift+Print Screen to take a screen grab and copy it to the Windows clipboard.
- Open Microsoft Paint, and paste the screen grab into the window (Control+V).
- Use the select tool to select the area of the plot.
- Click on the Crop icon to crop the image to the selection area.
- Save the image to your computer as a png or jpeg file.
Example #1: Within the context of implementation of Section 2.2a as a modified gallery walk, several informal and formal methods may be used to assess gallery walks available on the SERC website. Ultimately, students should be able to identify the three main fault types and provide the evidence they used to determine which type of fault was present. During the discussions that follow, and in each of the small-group presentations, students should be encouraged to share: concerns about the uniqueness of the methods; whether the most diagnostic features are unique to a single fault type or of there is some overlap with other faults; and whether there are features that are ambiguous or have certain length scales that must be taken into account.
Example #2: Faculty may collect student criteria lists and evidence maps at the end of the class meeting, either one set from each student or one combined set of maps from each group before and after presentations and discussions.
Example #3: Depending on the classroom setup and time constraints, faculty may choose to have group report-outs after the presentation and discussion. The faculty member could moderate the report-outs by projecting a slide of the prediction and evidence maps, asking selected groups for their predictions and rationale, populating the maps as the groups respond, and asking for alternative predictions and rationale from other groups. Alternatively, individual groups could be called to the front of the classroom to populate the maps (perhaps one group for each of the four study sites).
Example #4: For Parts 2.2b and 2.3, assessments will follow an evaluation of the student responses to the questions provided. A set of grading rubrics will include a list of criteria for student responses to each of the questions and the additional supporting graphics (concept sketches) that are requested.
Example Unit 2 Assessment Rubric (Microsoft Word 2007 (.docx) 64kB Dec1 15)
