Educator Guide: Lab 2 - Humpty Dumpty and Drought in the Hudson Valley, NY

NOTE: To get access to the Answer Keys for the TREX labs, you will need to 'Request Instructor Access' using the the tab in the navigation menu on the left side of this page. This is to ensure that students are not simply downloading answer keys. Once you get notification that you have been approved, come back to this site and click on the guide that you want. You will enter your email and the guide will automatically be sent to you. You can do this for each of the five labs. Please allow at least 48 hours for approval.

Summary and Learning Objectives

In Lab 2, students go on a virtual expedition to study drought in the Hudson Valley using the same tools and analysis procedures as tree-ring scientists. They explore the Humpty Dumpty talus slope site in Google Maps and learn about the importance of picking study sites where the ecology of the site shows that the trees will be sensitive to climate. Students learn to evaluate patterns in tree-ring records by observing and comparing core samples, and use Climate Explorer, a powerful online tool, to map and evaluate recorded meteorological data. They confirm that tree-rings are recording climate information by comparing their analysis of tree-ring data and observations of 'marker years' from the core samples to the recorded data from Climate Explorer for the same year.

Note: Please download the Student Activity Sheet (pdf or Word version) found in the Printable Materials section of this document if you wish to have students respond to Stop and Think questions as they go through the lab.

Learning Objectives

After completing this lab, students will be able to:

  • describe the nature of dendrochronology and why it is important.
  • explain why it is important to understand the ecological conditions of a site.
  • observe and record ring patters in digital samples and compare tree-ring growth to climate records.

  • describe how the analysis of tree-ring data can be used to describe changes in past climatic conditions.



  • Activity Overview and Teaching Materials

    Detailed overview of what students will do in each part of the lab and how long it will take.

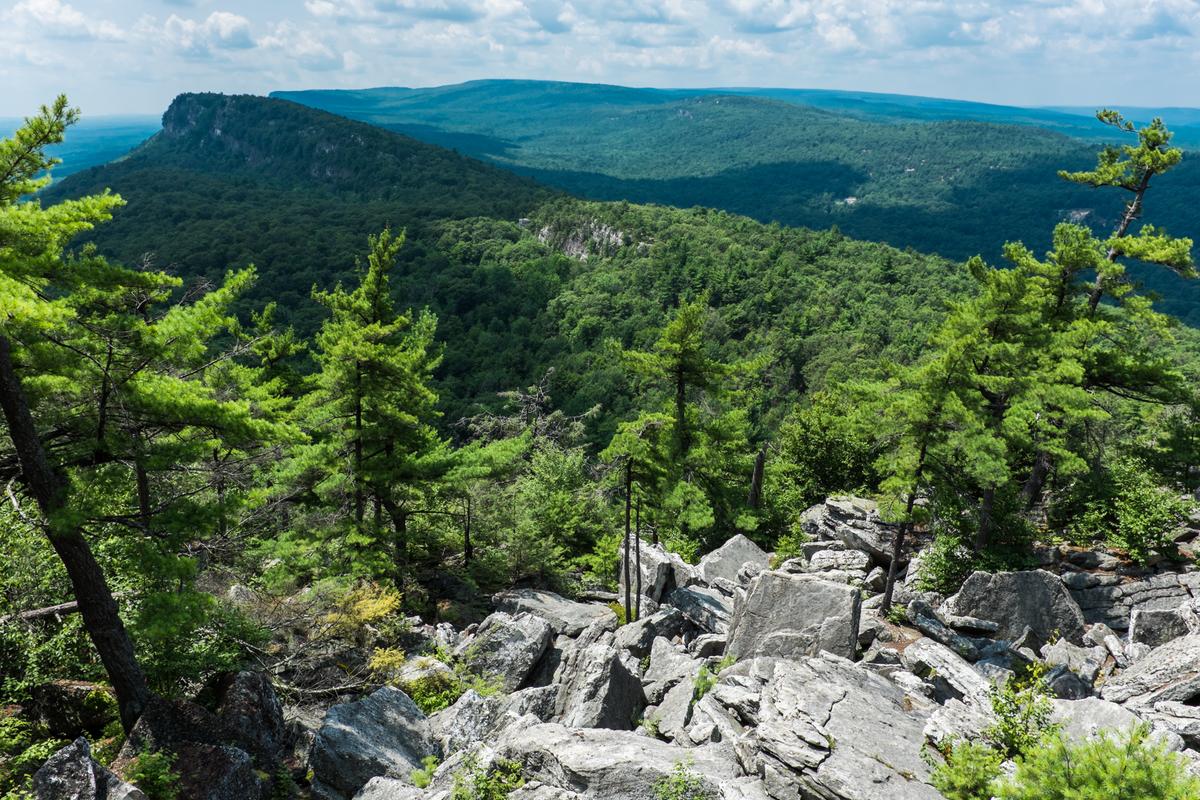

    Part 1: Exploring the Humpty Dumpty Talus Slope

    In Part 1, students go on a virtual expedition to study drought in the Hudson Valley. They explore the Humpty Dumpty talus slope site with Google Maps and learn about the importance of picking study sites where the ecology of the site shows that the trees will be sensitive to climate.

    Part 2: Coring Trees and Observing Ring Patterns

    In Part 2, students learn to evaluate patterns in tree-ring records by observing and comparing core samples. Then they identify "marker years" , In other words, which years consistently stand out for being very narrow or wide compared to their neighbor, and determine when periods of drought existed in the Hudson Valley region.

    Part 3: Gathering Historic Drought Data

    In Part 3, students use Climate Explorer, a powerful online tool, to map and evaluate recorded meteorological data. They then confirm that tree rings are recording climate information by comparing their analysis of tree-ring data and observations of 'marker years' in Part 2 to the recorded data from Climate Explorer from the same year.

    Part 4: Meet the Challenge

    Two optional projects are offered in Part 4 to use as final assessments for the lab. Either (or both) options can be done by students in class or assigned to them as take home assignments.

    Printable Materials

    Download and print files needed for each part of the lab, including student handouts and answer keys.

    To download one of the PDF or Word files below, right-click (control-click on a Mac) the link and choose "Save File As" or "Save Link As."
    • Student Activity Sheet for Lab 2 - (PDF (Acrobat (PDF) 217kB Mar13 19))(Word (Microsoft Word 2007 (.docx) 60kB Mar13 19));
      Suggested Answers


      This file is only accessible to verified educators. If you would like access to this file, please enter your email address below. If you are new to the site, you will be asked to complete a short request form. If you have already been verified by the project, you will be taken directly to the file download page.

      )
    • Excel spreadsheet for Part 2 (Excel 2007 (.xlsx) 34kB May19 17)
    • Part 2 Tree Ring Analysis Answer Key -
      PDF


      This file is only accessible to verified educators. If you would like access to this file, please enter your email address below. If you are new to the site, you will be asked to complete a short request form. If you have already been verified by the project, you will be taken directly to the file download page.

      )
    • Sample graphs and Teacher Notes for Part 3 -
      PDF


      This file is only accessible to verified educators. If you would like access to this file, please enter your email address below. If you are new to the site, you will be asked to complete a short request form. If you have already been verified by the project, you will be taken directly to the file download page.

    Teaching Notes and Tips

    What you need to prepare ahead of time, and general recommendations for classroom implementation.

      General Recommendations:

    • To add a hands-on component, consider purchasing a core apparatus (about $240) Forestry Suppliers. Visit The Ultimate Tree-Ring Webpages for tips, advice on cleaning kits for your core apparatus, and more information. In part 2 of the lab, take students to a site with some trees and have them take a sample core from a set of trees.
    • Explore the function of the Climate Explorer website. Generate time series and seasonal graph for your local region to use as examples when students attempt Part 3 of the lab.
    • Review Google Maps if you are unfamiliar with the program. If students are unfamiliar with using the program, go over the basic navigation techniques.
    • Students need to access Excel or similar spreadsheet software in Part 2. Use the table given in Printable Materials to prepare one in a suitable medium for students to work with.
    • Download and read the Sample Graphs and Notes for Part 3 pdf file before students begin this part of the lab.
    • Facilitation Tips:

      Part 1 - Exploring the Humpty Dumpty Talus Slope

    • In Part 1, after students watch the Dr. Ed Cook video, have a class discussion and ask for responses to the Stop and Think questions instead of having students record them individually.
    • Part 2 - Coring Trees and Observing Ring Patterns

    • Go over the example shown in the directions in step 3. It is important for students to just look at intervals of 15 to 20 years at a time when determining the narrowest and widest rings in a sample. They will normally choose too many candidates. Stress to students that they are looking for only the very narrowest and widest rings in their 15 to 20 year sample. If two or three rings are equally narrow, or equally wide, they should all be marked on the spreadsheet. This doesn't happen very often though.
    • Consider having a discussion to answer the final Stop and Think question: What are the "marker" years that you have found in the samples? In other words, which years consistently stand out for being very narrow or wide compared to their neighbor. Discuss reasons for variation in their results. As a group, select the four most commonly found candidates, preferably two dry and two wet marker years to study in Part 3 of the lab.
    • Part 3 - Gathering Historical Drought Data

    • Lead a discussion at the end of Part 3 and have students discuss how well their results from Part 2 matched the data gleaned from Climate Explorer. Were students surprised by the results?

    Assessment

    There are several options for assessment of student understanding of material introduced in this lab. Choose from the following list, or create your own assessments.

      Assessment Options:

    • Assess student understanding of topics addressed in this investigation by grading their responses to the Stop and Think questions and Activity Sheets for Parts 1 - 3.
    • Use the Challenge project as the final exam for the Lab. Two challenges are presented. You may choose to have all of your students do option 1 and choose their own area of interest to investigate using Climate Explorer. More advanced students may prefer option 2, an exercise that uses actual tree ring data from a site in Mongolia. Option 2 is the more rigorous project since students use Climate Explorer and analyze tree ring data to derive their results concerning paleoclimate in Mongolia. Consider offering bonus points for students who select this option. These Challenges can be done in class as a more formal assessment of students' skills or be assigned as a take home project to give them more time to complete them.
