Visualizing the Precambrian

Roger Steinberg, Department of Natural Sciences, Del Mar College

Description

I love the Precambrian! Some geologists, of course are not nearly as enamored as I am, and many discussions of the Earth's history, as well as graphic portrayals of the geologic time scale, give the Precambrian inadequate or only summary treatment. Although many facets of the Precambrian are poorly understood, partly because of an sparse rock record, I believe it should be emphasized that the Precambrian spans almost 90% of Earth's total history. To better portray the immense span of time corresponding to the Precambrian, I have created a page-sized geologic time scale and an extended poster-sized geologic time scale that I use in my Historical Geology classes, with the time lines drawn to scale in both.

Context

How this visualization is used in class:

Phanerozoic vs. Precambrian
It is easy to understand why the Precambrian is poorly treated, especially compared to the later Phanerozoic Eon. The Phanerozoic, comprised of the Paleozoic, Mesozoic, and Cenozoic Eras, is so interesting! But the Precambrian set the stage for all of the events of later times, and tremendous changes occurred during the Precambrian in the Earth's lithosphere, biosphere, atmosphere, and oceans. When teaching the geologic history of the Precambrian, I like to visually portray the immensity of this span of time by showing students both a page-sized and an extended poster-sized geologic time scale that I have created, with the time lines drawn to scale.

Available Geologic Time Scales
Most available geologic time scales are misleading because of their variable time line scale. For example, the most recent detailed time scale published by the Geological Society of America (GSA) in 2009 (http://www.geosociety.org/science/timescale/) divides Earth's history into four columns of equal length, one each for the Precambrian and the three Eras of the Phanerozoic Eon—the Paleozoic, Mesozoic, and Cenozoic. This is misleading, of course, not only for the Precambrian, but for the comparative lengths of the three Phanerozoic Eras as well.

In my classes I display a commercially produced poster-sized geologic time scale sold by Ward's. It is very detailed, 30 inches in length, and primarily displays the Phanerozoic, including the various Eras, Periods, Epochs, and Ages into which it is divided. The poor Precambrian is shown by only an inch thick bar at the bottom, accompanied by arrows pointing down. But how far down does it go? My geologic time scales, with time lines drawn to scale, provide an immediate, visual representation.

My Page-sized Geologic Time Scales

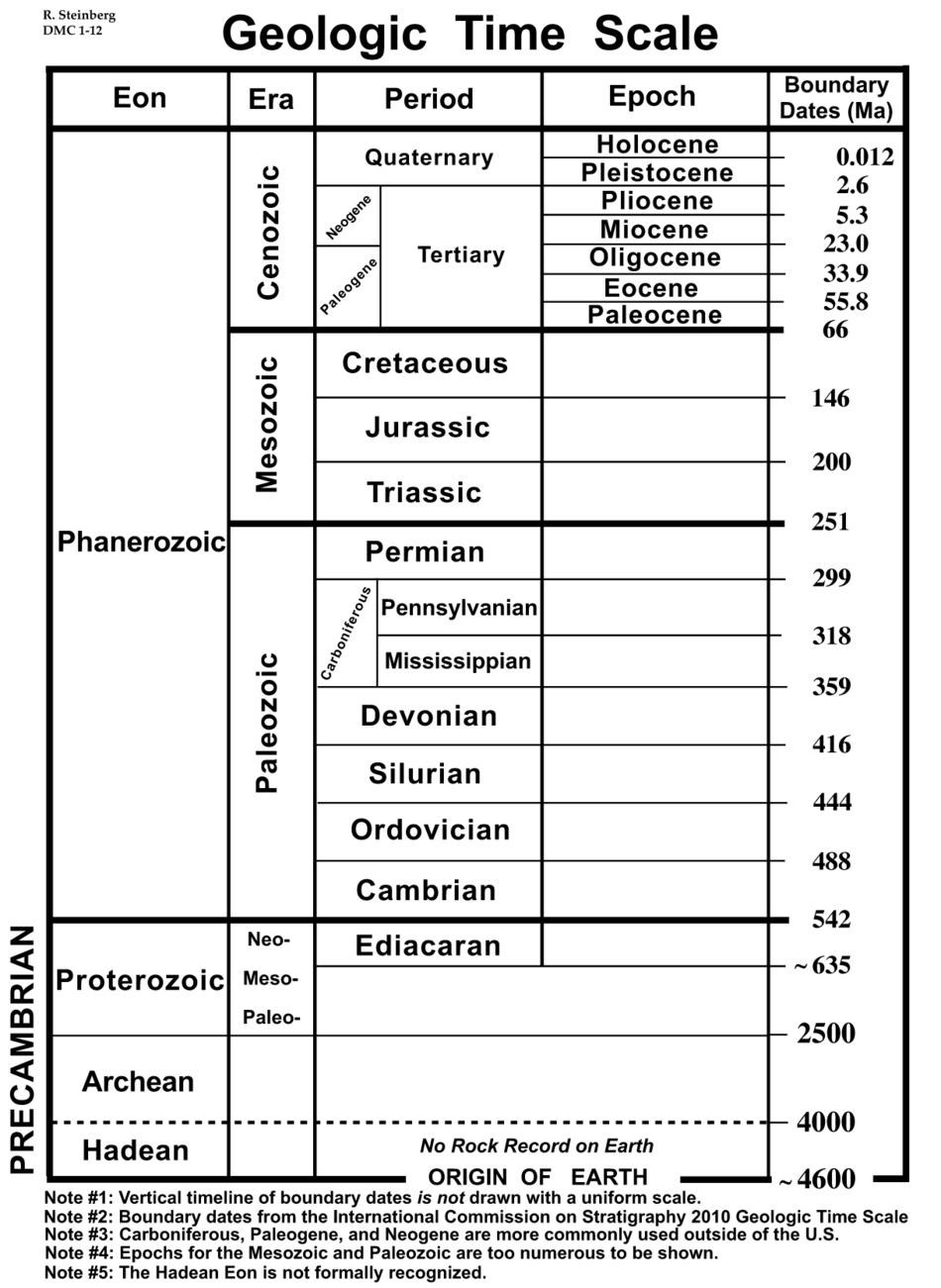

Figure 1 is a typical page-sized geologic time scale, with a time line that is not drawn to scale. I drew the time scale myself, based on the most recent time scales published by the GSA (2009) and the ICS, the International Commission on Stratigraphy (2010). I hand out copies of this time scale to my students early in the semester when we are discussing relative and actual age-dating and the historical construction of the geologic time scale. I also keep a pdf of it available for downloading on my password-protected course website. So students should never be without a copy. (I drew my own geologic time scale because I didn't like any that I found online. Feel free to use it, if you wish.)

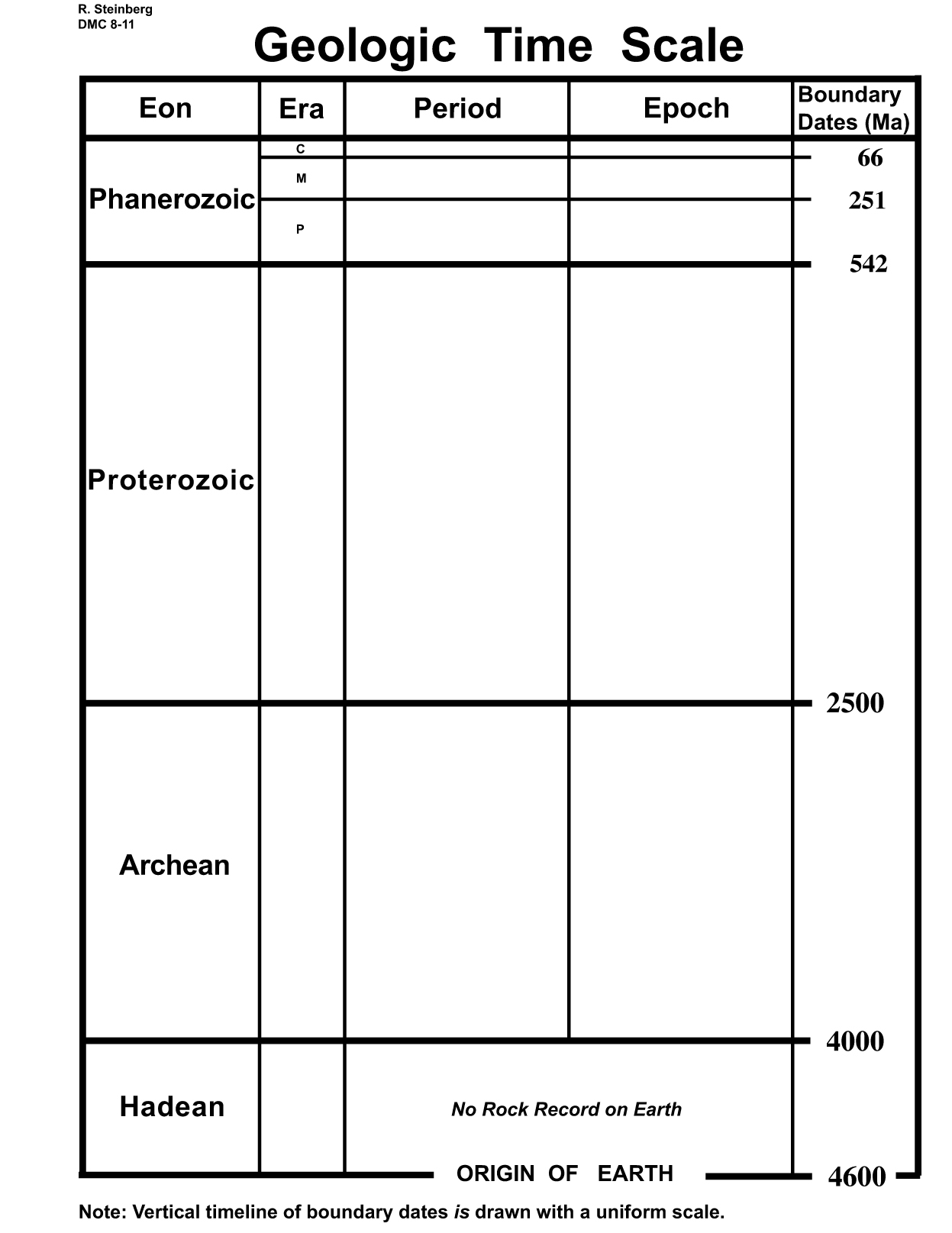

I have also created a page-sized geologic time scale (Figure 2) with a time line that is drawn to scale. The Precambrian and its three Eons, the Hadean, Archean, and Proterozoic, and the three Eras of the Phanerozoic, are all shown at their true, relative lengths. (Feel free to use it also.)

My Extended Poster-sized Geologic Time Scale
When my Historical Geology classes are studying the Precambrian, I show them my large, extended, poster-sized geologic time scale that also has a time line that is drawn to scale. For the Phanerozoic portion, I use the Ward's time scale. I have created a long addition for the Precambrian that I tape to the bottom of the Ward's time scale. Because the Phanerozoic portion of the Ward's time scale alone is 30 inches in length, my entire extended timescale is over 21 feet long. A time scale of this size couldn't be shown or viewed vertically, so I turn the Ward's poster of the Phanerozoic on its side, and slowly unfurl the attached Precambrian.

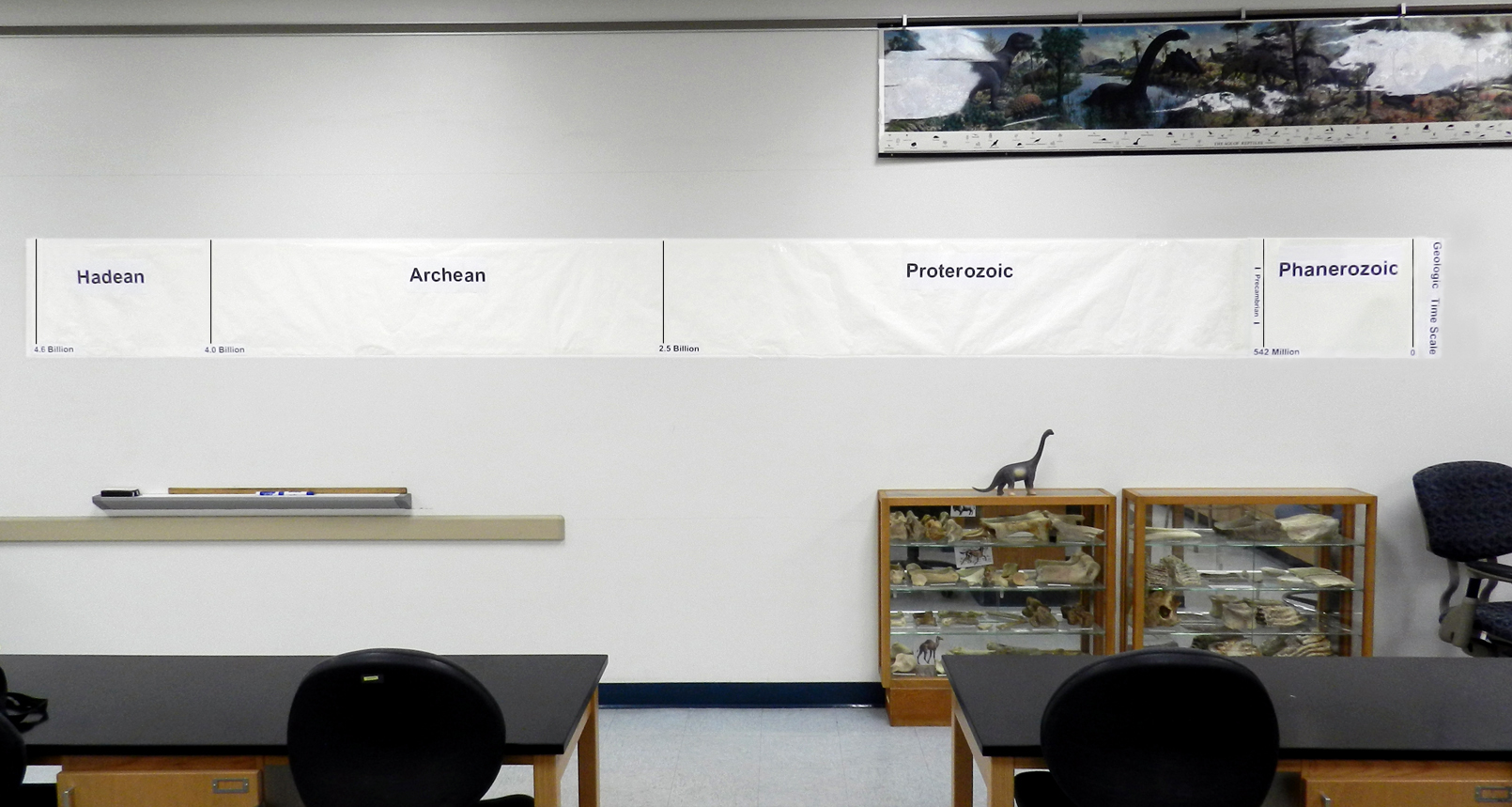

Students see the Phanerozoic portion of the extended time scale first. Then, I slowly unfurl my time scale addition to reveal the full Proterozoic, drawn at the same scale as the Phanerozoic. The Archean is unfurled next, followed by the Hadean. Figure 3 shows my entire extended geologic time scale, taped to my classroom wall so I could photograph it for this Time Workshop visualization. (Because the Ward's time scale is protected by copyright, I created a generic geologic time scale of the same size for this visualization.)

Students seem to enjoy this visual demonstration, and I believe it leads to a greater comprehension of the immensity of time represented by the Precambrian.

A future project: The Ward's poster contains drawings of many of the fossil organisms that are typical for the various Periods of the Phanerozoic. I intend to attach images of typical Precambrian fossil organisms to my extended time scale. This would include the following fossils (and maybe others, as well):

  • Chemical fossils (based on carbon isotope ratios) from Greenland at 3.85 Ga
  • Stromatolites and microfossils from the Apex Chert, Australia, at 3.465 Ga
  • Microfossils of sulfur-metabolizing cells from western Australia at 3.4 Ga
  • Organic-walled microfossils from South Africa at 3.2 Ga
  • Gunflint Chert microfossils from Canada at approximately 2.0 Ga
  • Grypania spiralis, a megascopic eukaryotic algae from Michigan, at 1.9 Ga
  • Acritarchs, starting at 1.9-1.6 Ga
  • A multicellular red algae from Canada called Bangiomorpha at 1.2 Ga
  • Filamentous microfossils from Bitter Springs Formation, Australia at 850 Ma
  • Vase-shaped microfossils (Testate amoebae?) from the Grand Canyon at 745 Ma
  • Fossil sponges from Oman at 635 Ma
  • Fossil metazoan (?) embryos from the Doushantuo Fm, China at 600–580 Ma
  • Ediacaran fossils from about 585 Ma to the end of the Precambrian
  • Treptichnus pedum, the distinctive trace fossil marking the Precambrian-Cambrian Boundary

Advice on using this visualization in the classroom:

I always try to make visualization presentations fun as well as educational.

Visualization and Supporting Materials

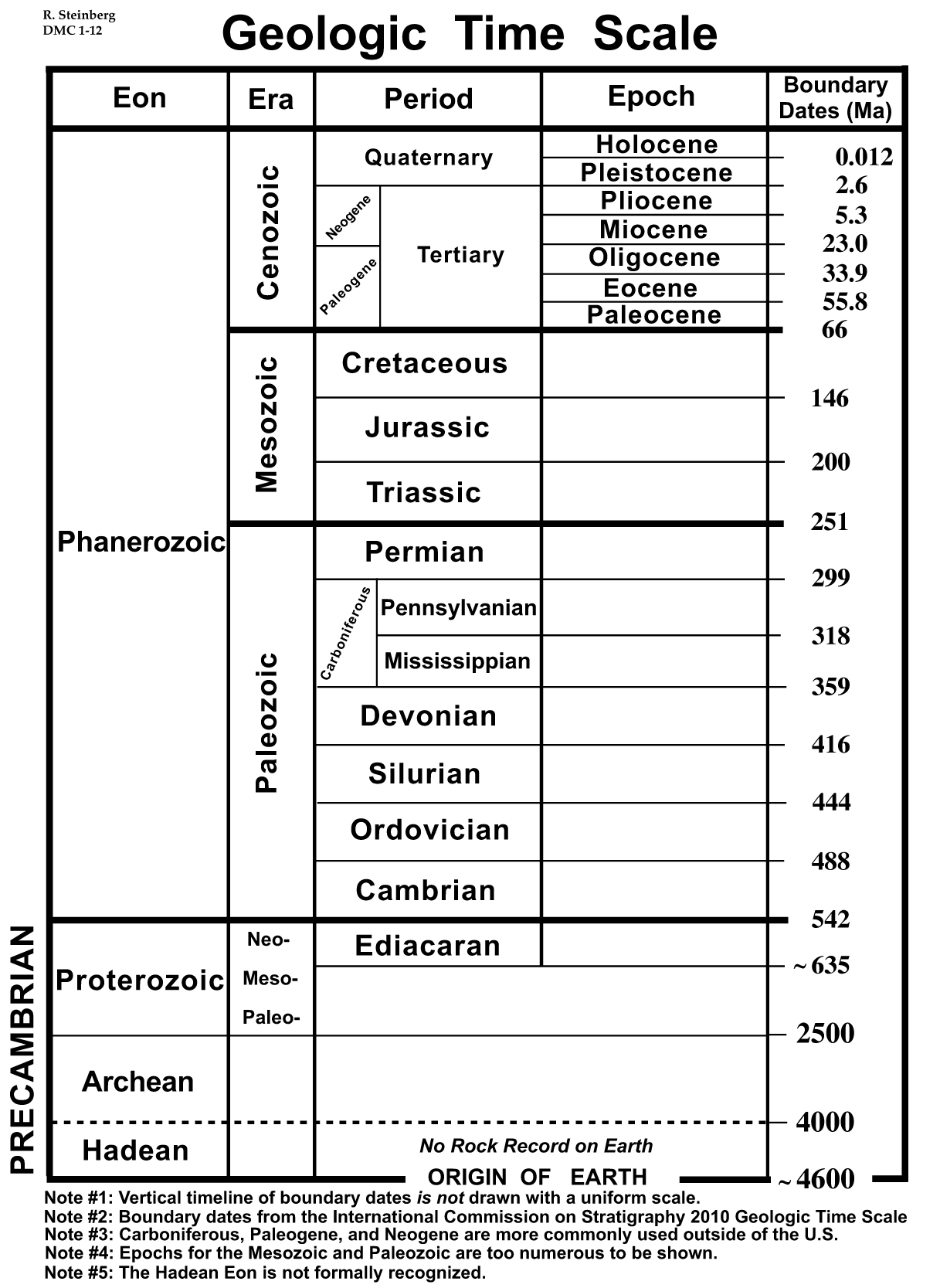

Figure 1: Variable Time Geologic Time Scale (Click image to enlarge and download.)

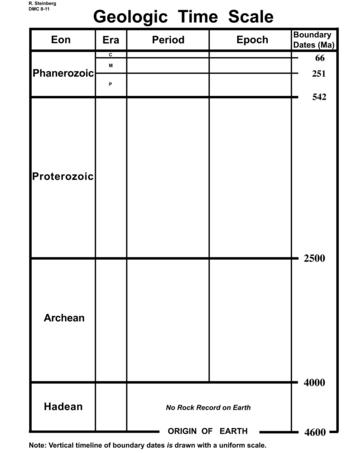

Figure 2: Constant Time Geologic Time Scale (Click image to enlarge and download.)
