Resistance to Weathering
Formative assessment questions using a classroom response system ("clickers") can be used to reveal students' spatial understanding.

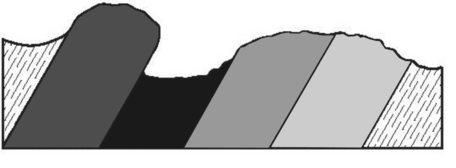

Students are shown this diagram and instructed to "Click on a layer within the red box that is more resistant to weathering than the other two layers."
Students in an introductory-level geoscience course
Skills and concepts that students must have mastered
Students need to understand how resistance to weathering manifests itself in hill slopes
How the activity is situated in the course
This activity is used as a formative assessment during a lecture or activity about resistance to weathering. Displaying the results after administering the question provides students and instructor immediate feedback about how well students understand this concept.
Content/concepts goals for this activity
The goal of this activity is to evaluate whether students understand how resistance to weathering manifests itself in hill slopes -- in particular, whether they understand that more resistant strata form cliffs while less resistant strata form slopes.
Higher order thinking skills goals for this activity
Other skills goals for this activity
Description and Teaching Materials
Students use Top Hat technology to click on the location of their choice, given the diagram shown above. TopHat creates a "heat map" of student answers, as shown at right. The instructor and students can see how well students, collectively, agree on the answer.
Science of Learning: Why It Works
There is accumulating evidence that engaging in spatial prediction and receiving feedback about the nature of one's errors leads to improved spatial reasoning (Gagnier et al. 2017; Resnick et al., 2017). Making a prediction, receiving feedback, and learning from the mismatch between the expected and actual outcomes is a process studied in cognitive science called the delta-rule model of learning (Rescorla and Wagner, 1972). Modern models of learning from the education research literature focuses on Piaget's concept of accommodation, where people will adjust their mental models as a consequence of the the feedback (Dole and Sinatra, 1998). Examples from research on geology concepts show us that students' build more scientifically accurate mental models after engaging in prediction and feedback. Gagnier et al. (2017) engaged students in making predictions about the interior of a geologic structure using block diagrams. The cycle of prediction and feedback facilitated students improved performance on a test of penetrative thinking. Resnick et al. (2017) engaged students in making predictions about the geologic time scale using a classroom response system (clickers). Students answered multiple-choice questions about the position of geologic events on a typical diagram of the geologic time scale. The spatial prediction clicker questions were as effective as, and more efficient than a hands-on meter stick activity at building a scientifically accurate linear conception of geologic time. Building on this research, we propose that the technique described here is a useful approach to identify students' spatial conceptions associated with various geologic phenomena (LaDue et al., 2021; LaDue and Shipley, 2018).
Teaching Notes and Tips
I use this activity to assess student understanding as I lecture about sedimentary rocks' resistance to weathering.
An alternative diagram was created to probe student's understanding in case the original diagram was leading them to click on the most resistant layer due to the brick pattern. For this alternative example, we changed the orientation and removed most patterns.
This question is useful for students to self-assess where their answer fits relative to other students in the class. Top Hat displays student responses in a heat map image that highlights the most common answers. In most systems it is possible to designate a region for the correct answer, but receiving a right-wrong answer is likely less useful than engaging students in peer discussion if the students' responses do not converge on one region.
References and Resources
Resources: There are several systems that offer click-on-diagram questions. The one we use is: https://tophat.com
