Teaching Notes

Example Output

Example Output

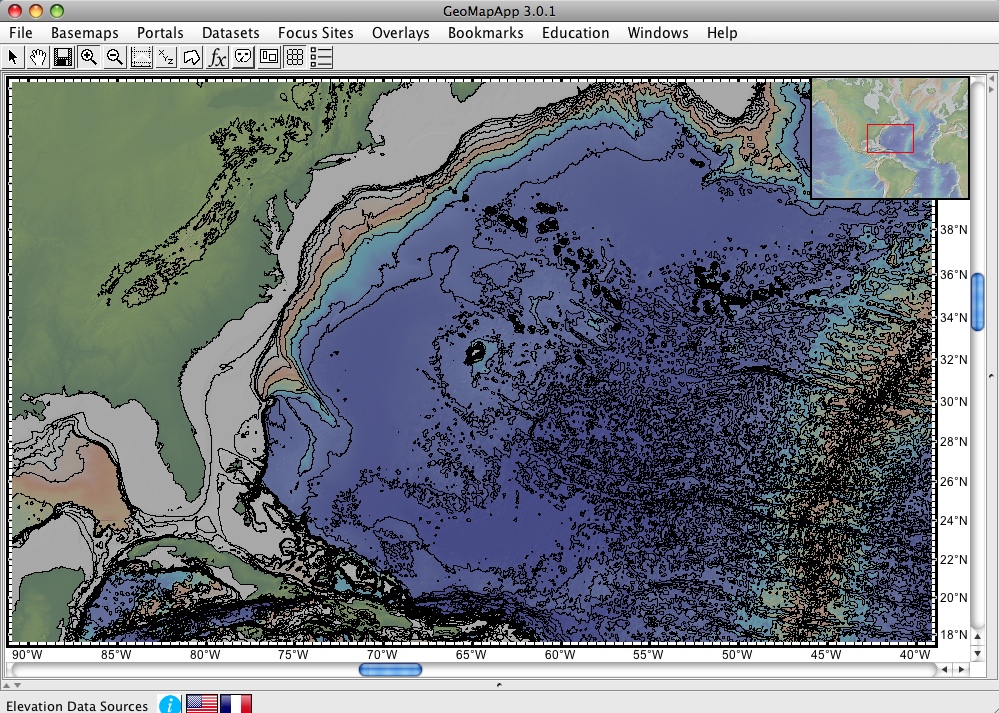

Map of the Eastern United States and Western Atlantic Ocean displayed by GeoMapApp. Click on image for a larger view.
This map created by GeoMapApp displays contour information for the Atlantic Ocean. Contours are shown in 500-meter intervals along with color-coded topographic information. Latitude and longitude markings are also shown and depth data is dynamically viewable by moving your cursor.

Grade Level

This chapter is most appropriate for students in grades 9 - 16.

Learning Goals

After completing this chapter, students will be able to:

  • explain how technology has been used through history to explore Earth's coastlines and the seafloor;
  • download, install, and use GeoMapApp for geospatial data analysis;
  • generate and interpret visualizations of seafloor depth data;
  • record, graph, and analyze geospatial information; and
  • hypothesize about the formation of observed seafloor features.

Rationale

GeopMapApp is a simple-to-use, yet powerful, set of data and software that allows users to visualize the seafloor. Users learn to generate and interpret graphs that show seafloor depth versus distance. Working with these profiles can give users practical experience with scientific visualizations and contribute to their data literacy skills.

Background Information

High school students are usually familiar with topographic maps that show elevations ranging from zero (sea level) upward. They have also been introduced to the basic concepts of plate tectonics. However, they have generally had little experience exploring the topography of the seafloor.

The bathymetric images in GeoMapApp are not satellite images or photographs, as many users may initially assume. Rather, they represent sonar data (depth measurements) that are compiled by computer software into a continuous grid. The sonar data are collected by oceanographic research ships. Displaying the grid of measurements according to a color code helps us interpret the imagery as the topography we would see if the water were removed from the ocean basins. You can find out more about the data collected by and used for marine research at the Marine Geoscience Data System site.

Instructional Strategies

Instructors may want to preface this activity by demonstrating how we can map something which we cannot see. Prepare a box with a familiar object attached to the inside bottom and a wide grid of small holes in the top. Probe the holes with a "sonar stick" (chopstick or other thin wooden stick that has been calibrated with color) to determine the depths to the bottom of the box across the grid. Construct a map using color to indicate the shape of the object. Replace the box top with one that has a finer grid of holes and repeat. This will show that taking more measurements will result in a more detailed map.

Pre-activity Assessment

The following questions can be used to elicit students' current understandings before the activity.

  • How deep do you think the ocean is?
  • Do you know how to convert feet to meters?
  • Describe what you think the seafloor looks like. Sketch a picture.
  • How do you think experts in oceanography know about the seafloor?
  • Why might the depth of the oceans and the shape of the seafloor be of interest to humans?
Post-activity Assessment

The chapter culminates with a collaborative project on contour mapping. The quality of the final project depends on:

  • initial group work - accuracy of collecting data from GeoMapApp and creating a profile graph;
  • whole class collaboration - translating data from the graphs into one large grid;
  • individual and group work using GeopMapApp to verify the product;
  • individual analyses of maps; and
  • group presentation of analyses with justified reasoning.

Science Standards

The following National Science Education Standards are supported by this chapter:

  • 12ASI1.1 Identify questions and concepts that guide scientific investigations.
    Students should form a testable hypothesis and demonstrate the logical connections between the scientific concepts guiding a hypothesis and the design of an experiment. They should demonstrate appropriate procedures, a knowledge base, and conceptual understanding of scientific investigations.
  • 12ASI1.3 Use technology and mathematics to improve investigations and communications.
    A variety of technologies, such as hand tools, measuring instruments, and calculators, should be an integral component of scientific investigations. The use of computers for the collection, analysis, and display of data is also a part of this standard. Mathematics plays an essential role in all aspects of an inquiry. For example, measurement is used for posing questions, formulas are used for developing explanations, and charts and graphs are used for communicating results.
  • 12DESS3.3 Interactions among the solid Earth, the oceans, the atmosphere, and organisms have resulted in the ongoing evolution of the Earth system.
    We can observe some changes such as earthquakes and volcanic eruptions on a human time scale, but many processes such as mountain building and plate movements take place over hundreds of millions of years.

Geography Standards

The following U.S. National Geography Standards are supported by this chapter:

The World in Spatial Terms
1. How to use maps and other geographic representations, tools, and technologies to acquire, process, and report information from a spatial perspective.
2. How to use mental maps to organize information about people, places, and environments in a spatial context.
3. How to analyze the spatial organization of people, places, and environments on Earth's surface.
Physical Systems
7. The physical processes that shape the patterns of Earth's surface

Other Standards

Project 2061: Benchmarks
  • Scientific investigations are conducted for different reasons, including to explore new phenomena, to check on previous results, to test how well a theory predicts, and to compare different theories.
    Hypotheses are widely used in science for choosing what data to pay attention to and what additional data to seek, and for guiding the interpretation of the data (both new and previously available). Sometimes, scientists can control conditions in order to obtain evidence. When that is not possible for practical or ethical reasons, they try to observe as wide a range of natural occurrences as possible to be able to discern patterns.
  • Science disciplines differ from one another in what is studied, techniques used, and outcomes sought, but they share a common purpose and philosophy, and all are part of the same scientific enterprise.
    Although each discipline provides a conceptual structure for organizing and pursuing knowledge, many problems are studied by scientists using information and skills from many disciplines. Disciplines do not have fixed boundaries, and it happens that new scientific disciplines are being formed where existing ones meet and that some subdisciplines spin off to become new disciplines in their own right.
  • Technological problems often create a demand for new scientific knowledge, and new technologies make it possible for scientists to extend their research in new ways or to undertake entirely new lines of research. The very availability of new technology itself often sparks scientific advances.
  • Mathematics, creativity, logic and originality are all needed to improve technology.
    Technology usually affects society more directly than science because it solves practical problems and serves human needs (and may create new problems and needs). In contrast, science affects society mainly by stimulating and satisfying people's curiosity and occasionally by enlarging or challenging their views of what the world is like.

Time Required

Approximately 3 full class periods.

Other Resources

Ridge 2000 Program: Exploring the links between Planetary Renewal and Life in the Deep OceanR2K

MARGINS: A project to understand the complex interplay of processes that govern the evolution of continental margins.MARGINS

NOAA's Ocean Explorers Seafloor Mapping SiteSea Floor Mapping

Data Acquisition, Processing, Interpretation, and ArchivingUSGS Sea Floor Mapping Site

The Physics of SoundNOAA - Ocean Explorer
