# Sun Spot Analysis

### This resource received an Accept or Accept with minor revisions rating from a Panel Peer Review process

These materials were reviewed using face-to-face NSF-style review panel of geoscience and geoscience education experts to review groups of resources addressing a single theme. Panelists wrote reviews that addressed the criteria:

1. scientific accuracy and currency
2. usability and
3. pedagogical effectiveness
Reviewers rated the resources:
1. Accept
2. Accept with minor revisions
3. Accept with major revisions, or
4. Reject.
They also singled out those resources they considered particularly exemplary, which are given a gold star rating.

Following the panel meetings, the conveners wrote summaries of the panel discussion for each resource; these were transmitted to the creator, along with anonymous versions of the reviews. Relatively few resources were accepted as is. In most cases, the majority of the resources were either designated as 1) Reject or 2) Accept with major revisions. Resources were most often rejected for their lack of completeness to be used in a classroom or they contained scientific inaccuracies.

This material was originally created for Starting Point:Introductory Geology
and is replicated here as part of the SERC Pedagogic Service.

#### Summary

Introductory students use Excel to graph monthly mean Greenwich sunspot numbers from 1749 to 2004 and perform a spectral analysis of the data using the free software program "Spectra". Short answer and thought questions related to the graphical data are asked throughout the assignment.

## Learning Goals

• Learn about the past sunspot record.
• Graph monthly mean Greenwich sunspot numbers from 1749 to 2004.
• Read the graph and answer questions related to the graphical data.
• Perform a Fourier analysis on the monthly mean sunspot record using the Spectra Program.
• Learn about Fourier frequency analysis
• Use the relation between frequency and period of a component of the signal.

## Context for Use

This activity is useful in any introductory geoscience course in which a discussion of the solar cycle is appropriate or in which an introductory exposure to Fourier spectral analysis is desired.

## Teaching Materials

The assignment in a form that can be printed and handed out to students is:

## Teaching Notes and Tips

• The activity takes approximately 3 hours to complete. Omitting the last part on spectral analysis would likely make it a 2-hour activity.
• Little background mathematics is required for this activity.
• Students should be familiar with using Excel to make an X-Y graph and with the concept of period and frequency of a sinusoidal signal.
• For students needing a refresher on using Excel Graphing with Excel can help refresh them.
• More information on related to using Excel and related links can be found at How to use Excel

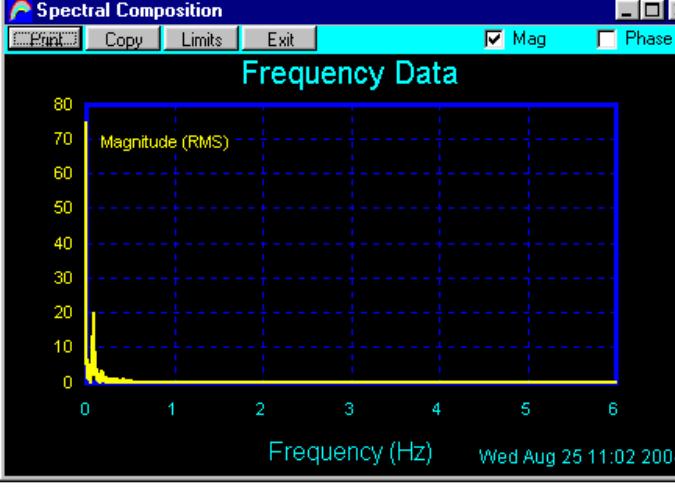

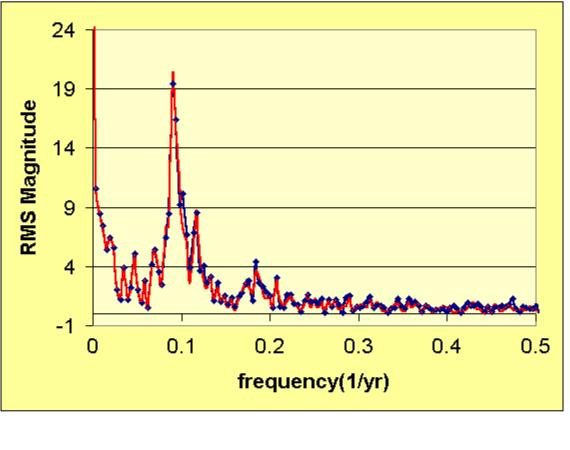

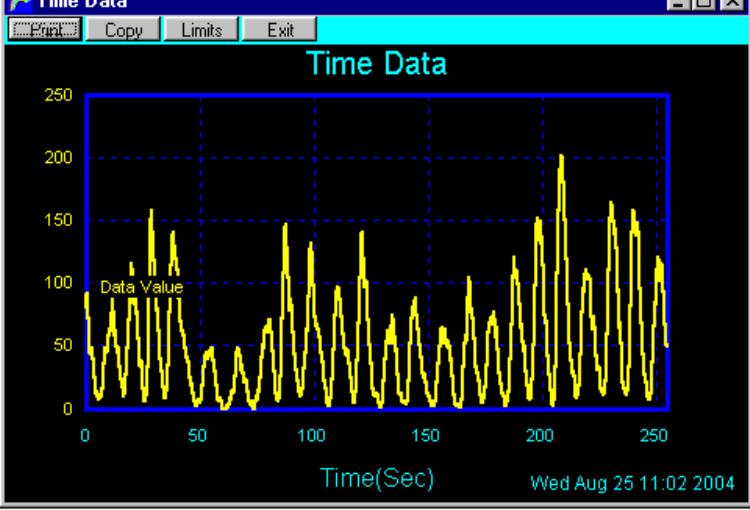

The two graphs above show essentially the same thing. The graph on the right was made with Excel by importing the Text frequency data from the Text output Window of Spectra. The Spectra program does not allow you to alter the horizontal axis. We did not ask students to do this step in the assignment since they can read the numerical values from the graph or from the table, but you may want to use these two figures in a follow-up discussion.

## Assessment

The successful completion of this activity and evaluation of their results are good measures of student comprehension. Follow-up discussions in class, essay questions on exams, and the future success of students on other related activities are also useful measures of student understanding.

## Subject

Physics:Astronomy, Geoscience:Atmospheric Science:Meteorology:Solar and terrestrial radiation

## Resource Type

Activities:Lab Activity, Datasets and Tools:Datasets with Teaching Activities, Activities

## Special Interest

Data, models, or simulations:Data, Quantitative

College Lower (13-14):Introductory Level

## Quantitative Skills

Graphs, Fourier Series, Spectral Analysis, Probability and Statistics:Describing Data Distribution, Differential Equations and Integrals
