Polar Peril

Investigation question: How has the sea ice extent in the Arctic changed over time?


Arctic Sea Ice September 1979-2007
Minimum Sea Ice Extent - September

Sea ice - frozen, floating sea water - forms and melts with the seasons. If the ice grows thick enough, it does not melt completely, persisting from year to year. In the Arctic, the area covered by sea ice typically shrinks in the summer and expands in the winter.

Since the late 1970s, satellite data from NASA's Nimbus 7 satellite and the Defense Meteorological Satellite Program's SSMI (Special Sensor Microwave Imager) have shown that the average area, or extent, of Arctic sea ice remaining at the end of the summer melt has decreased dramatically, falling by over 8 percent per decade. In September 2007, the sea ice extent was at a record low.

The decrease in Arctic sea ice has widespread and significant environmental impacts, particularly on animal life. Dr. Claire Parkinson, a scientist at NASA's Goddard Space Flight Center, Greenbelt, Md., and Ian Stirling, a senior scientist with the Canadian Wildlife Service, Edmonton, Alberta, used the satellite data to study sea ice coverage in areas with significant polar bear populations. In most of these areas, they found the summer melt occurring 7 to 8 days earlier each decade. Not only is the sea ice melting earlier each year, it is also returning later in the fall. This combination of early melt and late freeze has created a longer open water season and some hungry polar bears!

Polar bears hunt seals and other marine mammals on winter sea ice and fast on land during the summer melt. As the summer melt occurs earlier and earlier, the balance between the bears' feeding and fasting seasons is shifting. During the summer months the bears are forced to retreat to land and fast on their stored fat reserves until sea ice comes back in the fall. This has caused the average weight of female polar bears to fall by nearly 150 lbs. over the past 25 years. As females become lighter, their ability to reproduce and the survival of their young declines. Hungry bears are more likely to adapt to new habitats and move closer to human settlements as they seek food. This often gives the false impression that the polar bear population is actually increasing.

In this investigation you will:

  • Examine the satellite data, focusing on the sea ice coverage of Hudson Bay, an important polar bear habitat.
  • Use ImageJ to identify and measure the average November sea ice coverage of Hudson Bay from 1978 to 2007.
  • Export your measurement data to a spreadsheet.
  • Graph and interpret the data.

top of page

Download the Sea Ice Data

Right click (Win) or control-click (Mac) the link below to download the november_arctic_sea_ice.tif stack to your Week 3 directory or folder.
november_arctic_sea_ice.tif (TIFF 3.9MB Jan23 10)

top of page

Launch ImageJ; Open and Explore the Stack

Canada's Hudson Bay was chosen for this investigation because it is an important polar bear habitat. The return of the sea ice to the bay is an important event in the lives of the bears, representing the end of their fasting season. November was chosen as a key indicator month for studying the return of ice to the region.
  1. Launch ImageJ by double-clicking its icon ImageJ Icon Small on your desktop or by clicking its icon in the dock (Mac) or Launch Bar (Win).
  2. Choose File > Open, navigate to your Week 3 directory or folder, and open the november_arctic_sea_ice.tif stack.

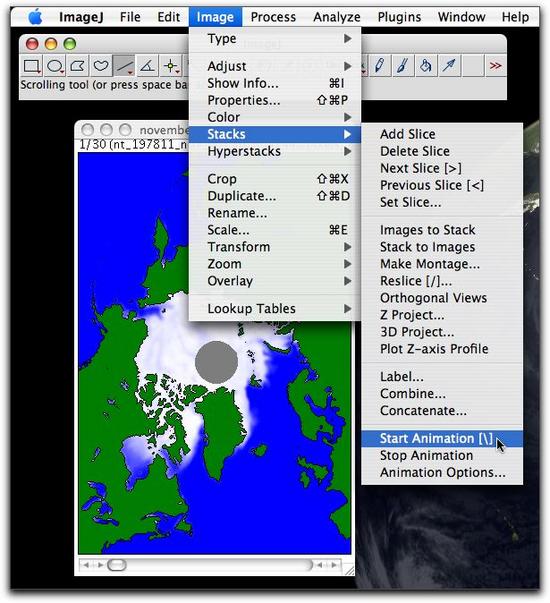

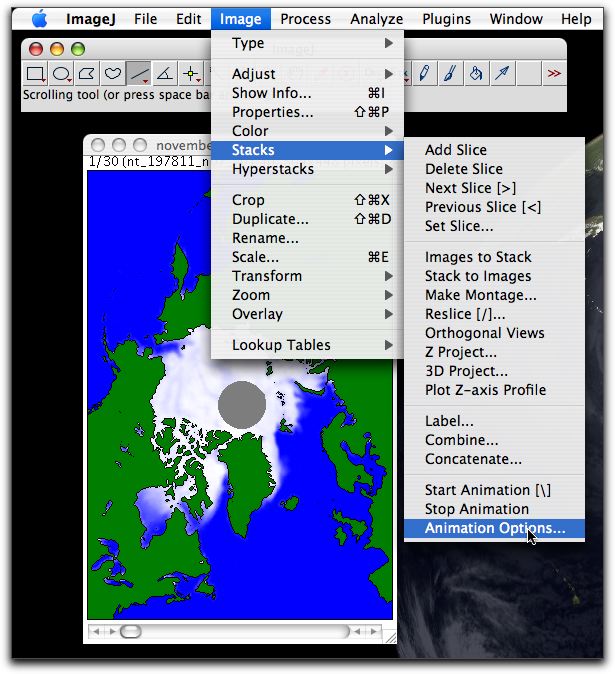

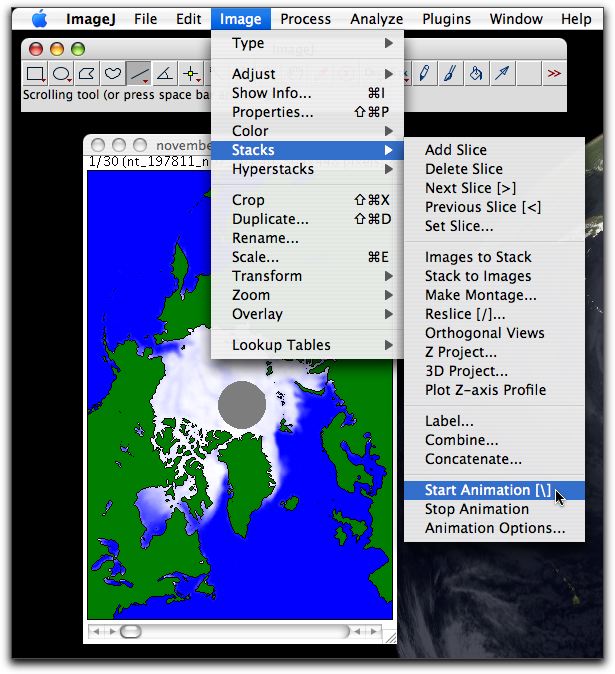

  3. To animate the stack and observe the changing extent of sea ice, choose Image > Stacks > Start Animation. Slow down the animation by choosing Image > Stacks > Animation Options... and set the speed to 5 frames per second. You may wish to experiment with other speeds.

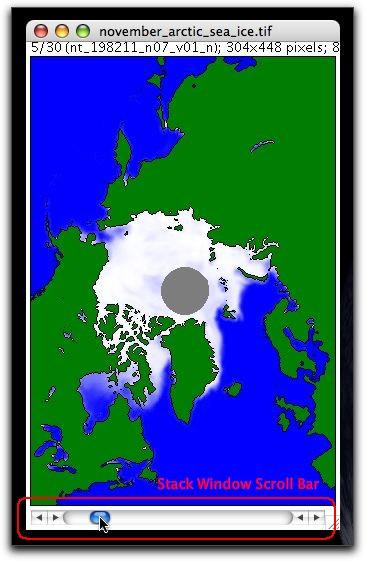

  4. Move through the stack frame by frame to carefully explore the stack. First, click on the stack to stop to stop the animation. Then drag the scroll bar at the bottom of the stack window to the right and left to scroll forward and backward through the stack. You can also use the Next Slice (>) and Previous Slice ( keyboard shortcuts to move forward and backward through the stack.

The Sea Ice Stack shows a gradual change from blue (0% ice) to white (100% ice). Land areas are shown in green and coastlines are outlined in black.

The grey "hole" in the middle of the image is not open water, it's "missing" data. Between 1978 and the present, two different satellites in different orbits and with different sensors were used to gather the sea ice data. The sensors' characteristics differ slightly, most notably in how near to the pole they can obtain data. The older sensor was not able to collect data north of 83 degrees latitude; the newer one can obtain data as far north as 87 degrees latitude. Thus, the "hole" appears to get smaller at some point in time.

This missing data is not a real problem, because we can reasonably assume that any region north of 83 degrees latitude is covered with ice throughout the year. Thus, we can assume that the "pole hole" where the sensors do not obtain data is "ice-covered." This allows extent estimates to be continuous over the whole record.


top of page

Measure the Sea Ice Extent

  1. In order to make area measurements in real world units in this case, square kilometers set a spatial scale for the image. Choose Analyze > Set Scale. The Set Scale window opens. Set the Distance in Pixels to 1, the Known Distance to 25, and the Unit of Length to km.
  2. To measure the extent of the sea ice defined as areas covered by at least 15% ice you'll need to Threshold the image to select only those pixels with concentrations of ice from 15-100%. Thresholding selects and highlights in red all of the pixels in the image that are within a specific range of values.

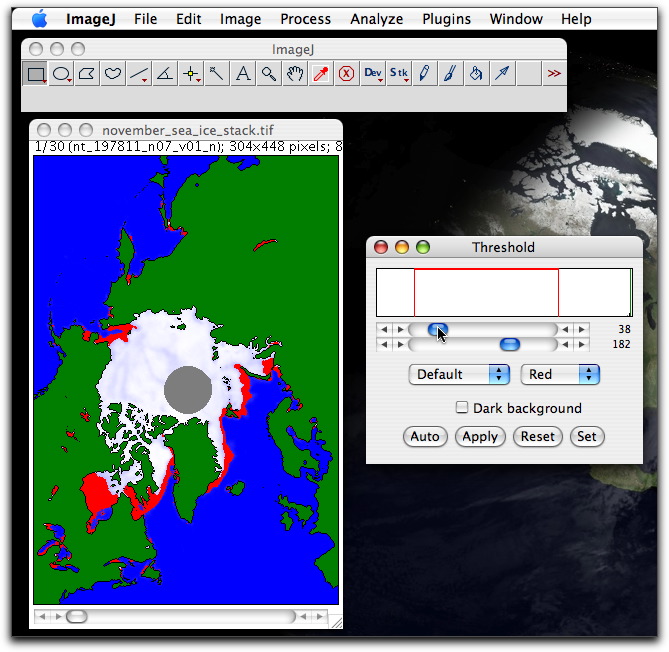

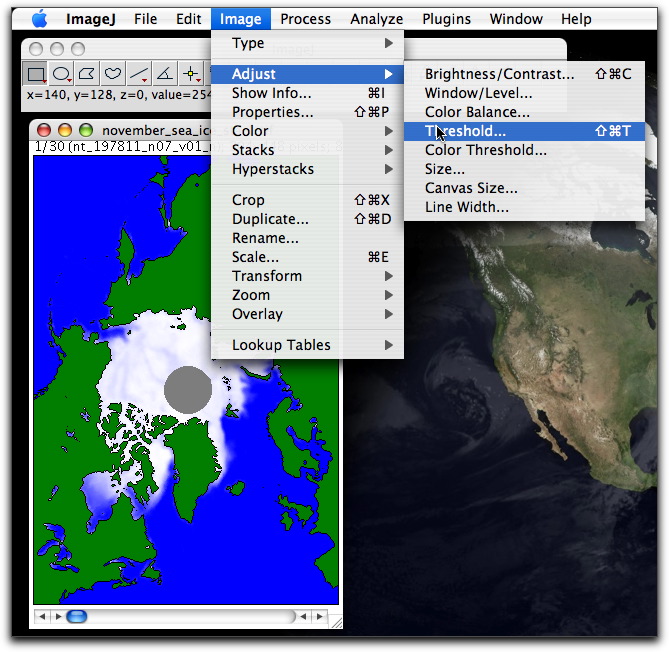

    • Choose Image > Adjust > Threshold.

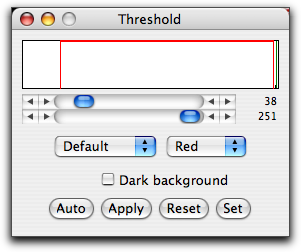

    • Threshold Dialog Box

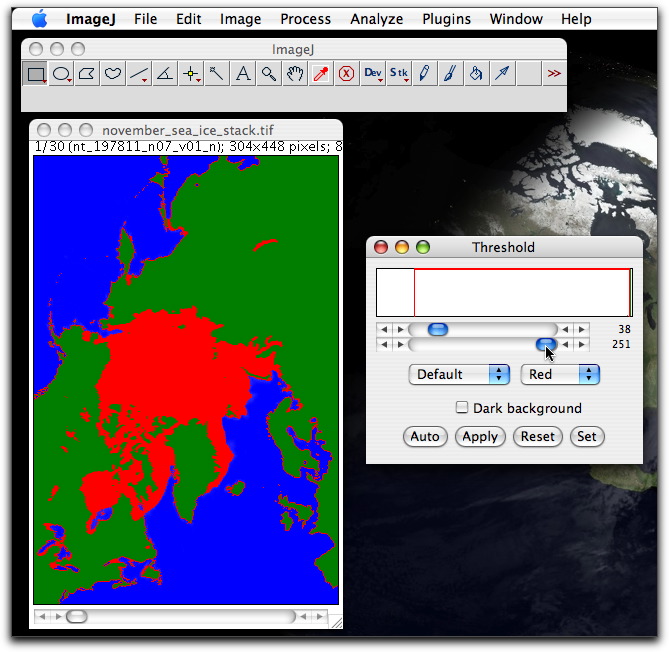

    • Pixels that have values between 38 (15% ice) and 250 (100% ice) represent ice covered pixels. Threshold the image to highlight values from 38 to 251. By using 251 instead of 250, you also select the pole hole region.
    • Do NOT click Apply or anything else in the Threshold window; simply close the Threshold window.

    Movie Icon
    top of page

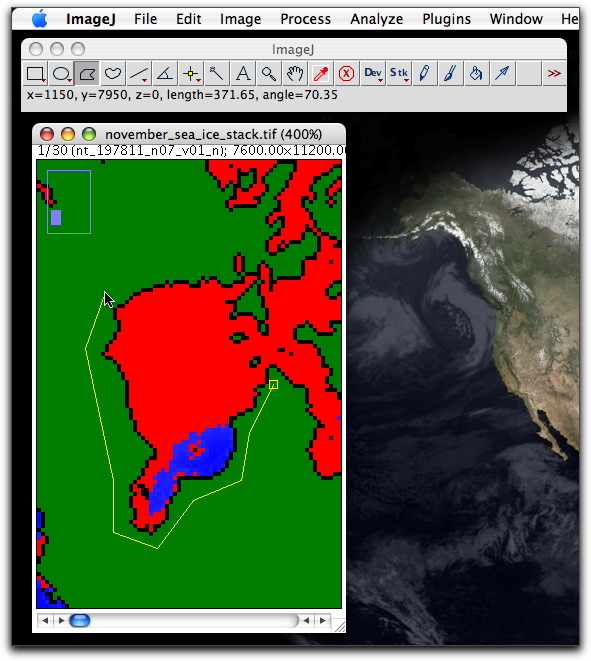

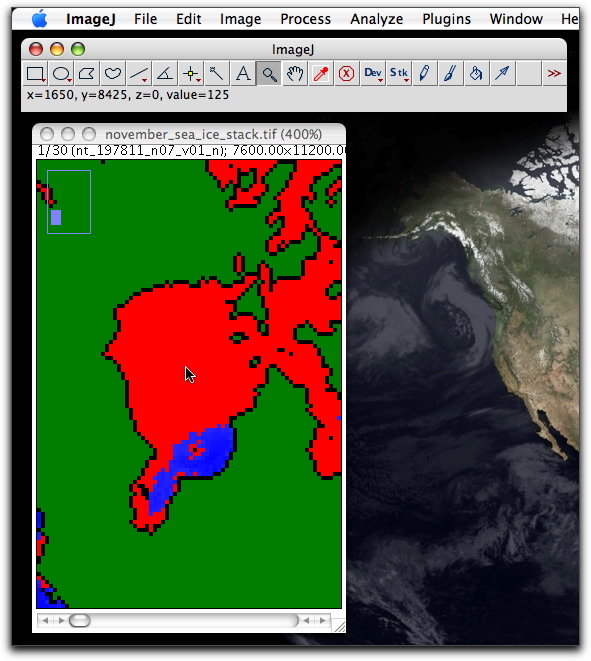

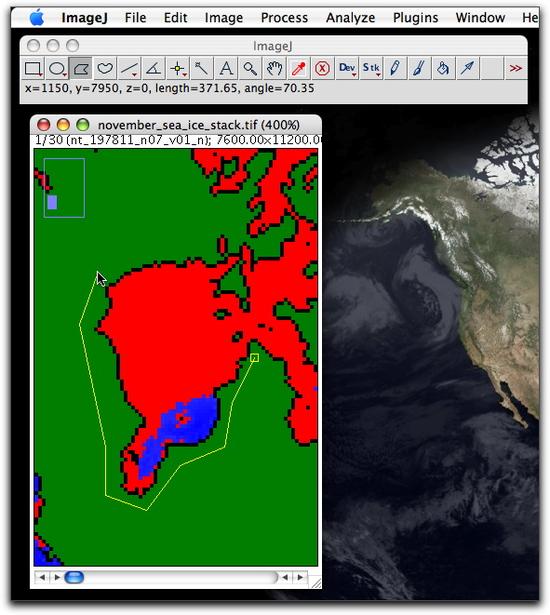

  3. Next, select the thresholded area. Use the Magnifying Glass tool magnifying_glass_tool to zoom in on Hudson Bay. Then use the Polygon Selection tool polygon_selection_tool to select Hudson Bay.

  4. Movie Icon
    top of page
  5. Choose Analyze > Set Measurements and turn on the Area, Stack Position, and Limit to Threshold options. All other options should be turned off.
  6. top of page
  7. Start at slice 1 and choose Analyze > Measure to measure the area of the highlighted pixels within the selected area. Choose Image > Stacks > Next Slice to advance to the next slice. Measure the next slice, and repeat until all 30 slices are measured.

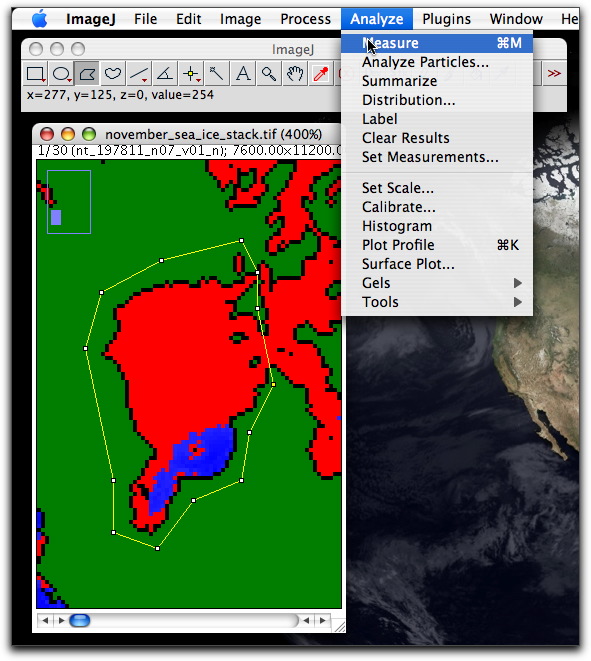

  • Start at slice 1 and choose Analyze > Measure to measure the area of the highlighted pixels within the selected area.
    select_hudson_bay_4
  • The Results window opens. Your measurement should be similar to this one.
    select_hudson_bay_5

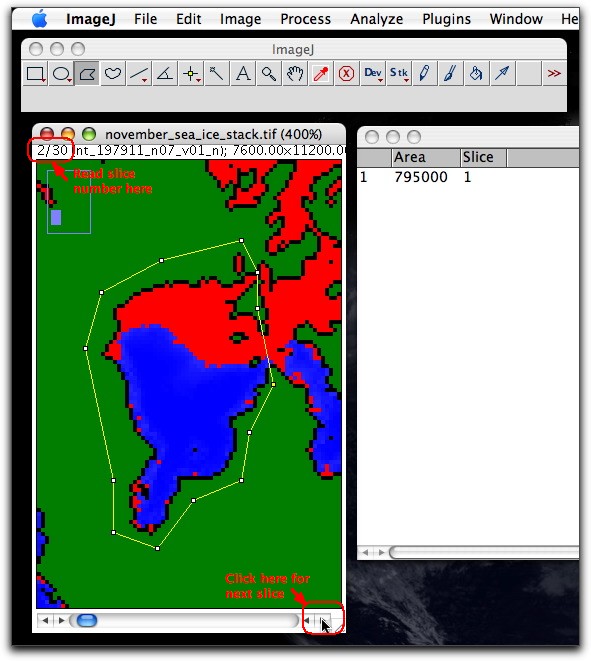

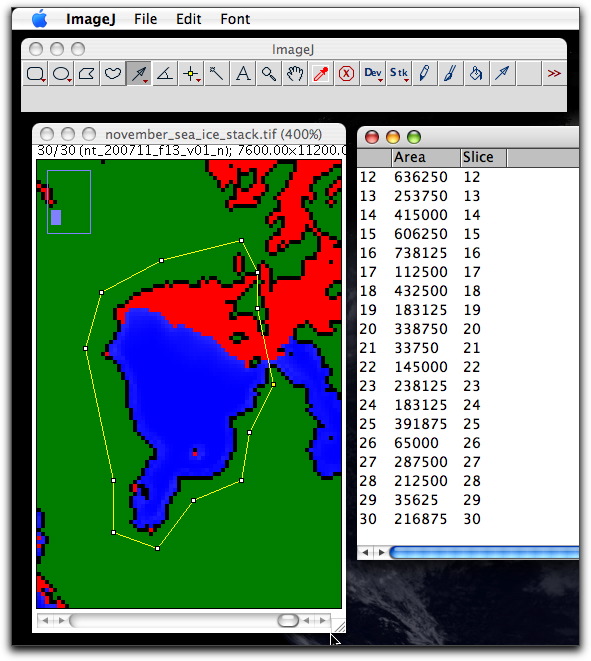

  • Choose Image > Stacks > Next Slice to advance to the next slice. Measure the next slice, and repeat until all 30 slices are measured. When you are finished, the Results window will display all your measurements.
    select_hudson_bay_6

Movie Icon
  • Click the Results window and choose File > Options. In the I/O Options dialog box, set the File Extension for Tables to .xls, check Copy Column Headers and turn off the other options.
  • Choose File > Save As... and save the Results table as an Excel format file (.xls) to your Week 3 folder.

  • top of page

    Graph the Results

    Instructions are given here for importing and graphing the sea ice concentration data using Microsoft Excel. Other spreadsheets may be used, but the procedures will vary.

    1. Launch Excel, choose File > Open, navigate to your saved data file, and open it. If the Text Import Wizard opens, click the Finish button to create the spreadsheet.
    2. Movie Icon
    3. Create a new column to the left of the area column, label it Year, and enter the years 1978 through 2007.
    4. Movie Icon


  • Use the Chart Wizard to create a line chart of the November sea ice concentration from 1978 to 2007.
  • Movie Icon
  • Select the chart, choose Chart > Add Trendline, select a linear trend line (upper left), and click OK.
  • Movie Icon

    top of page

    Interpret and Reflect on Your Results

    As you examine your graph and reflect on the data and the process used in creating it, consider the following questions. These may prompt questions or comments to your discussion group. Note: These are thought questions - there are no right answers.


    top of page

    Explore a Different Place or Month

    Study Areas Map

    If you want to practice your skills or continue investigating this issue, you may choose another area of interest to investigate.

    Here are some suggested areas for analysis. Each area has a distinct polar bear population.

    If you are continuing this investigation, download the appropriate datasets for the other months in your study.

    Jan Sea Ice.tif (TIFF 3.8MB Jan24 10)
    Feb Sea Ice.tif (TIFF 3.8MB Jan24 10)
    Mar Sea Ice.tif (TIFF 3.8MB Jan25 10)
    Apr Sea Ice.tif (TIFF 3.8MB Jan25 10)
    May Sea Ice.tif (TIFF 3.8MB Jan25 10)
    Jun Sea Ice.tif (TIFF 3.8MB Jan25 10)
    Jul Sea Ice.tif (TIFF 3.8MB Jan25 10)
    Aug Sea Ice.tif (TIFF 3.8MB Jan25 10)
    Sep Sea Ice.tif (TIFF 3.8MB Jan25 10)
    Oct Sea Ice.tif (TIFF 3.9MB Jan25 10)
    Dec Sea Ice.tif (TIFF 3.9MB Jan25 10)

    top of page

    Save your selection

    One technical issue is selecting the exact same region to measure from one stack to the next, so that you are comparing "apples to apples".


    top of page

    Resources


    top of page

    Movies on this Page

    How to download movies

    top of page

    Flash Versions

    Download these versions to play on your computer. You'll need an appropriate movie player to view the file, such as Flash Player, Real Player (Mac / Win), or Adobe Media Player.

    Movie Icon Adjust Threshold

    Movie Icon Select Hudson Bay

    Movie Icon Measure Stack

    Movie Icon Open Results in Excel

    Movie Icon Add Year Column

    Movie Icon Create Graph

    Movie Icon Add Trendline

    Movie Icon Save Selection

    top of page

    iPod Versions

    Download these version to play on your iPod or iPhone.

    Movie Icon Adjust Threshold

    Movie Icon Select Hudson Bay

    Movie Icon Measure Stack

    Movie Icon Open Results in Excel

    Movie Icon Add Year Column

    Movie Icon Create Graph

    Movie Icon Add Trendline

    Movie Icon Save Selection
