How Do I Construct a Straight Line through Data Points?
Best-Fit Lines

Questions that ask you to draw a best-fit line or trend in the data usually do not want you to "connect the dots." Instead, the question is asking you to think about how the two sets of data behave in relation to one another. In general, we fit lines to data when we want to use them for predictive purposes or to determine the general trend of the data.

Most scientists use a computer program to plot a best-fit line for a set of data, but constructing one for yourself is a good way to learn how it's done. Because a computer isn't doing it, you may find that your "best-fit" line is slightly different from your lab partner's. In most cases, that is okay, as long as you've mimicked the trend of the data.

Why (and When) Should I Use a Best-Fit Line?

In introductory geoscience, most exercises that ask you to construct a best-fit line have to do with wanting to be able recognize relationships among variables on Earth or to predict the behavior of a system (in this case the Earth system). We want to know if there is a relationship between the amount of nitrogen in the water and the intensity of an algal bloom, or we wish to know the relationship of one chemical component of a rock to another. For predictive purposes, we might prefer to know how often an earthquake is likely to occur on a particular fault or the possibility of a very large flood on a given river. All of these applications use best-fit lines on scatter plots (x-y graphs with just data points, no lines).

If you find yourself faced with a question that asks you to draw a trend line, linear regression, or best-fit line, you are most certainly being asked to draw a line through data points on a scatter plot. You may also be asked to approximate the trend, or sketch in a line that mimics the data. This page is designed to help you complete any of these types of questions. Work through it and the sample problems if you are unsure of how to complete questions about trends and best-fit lines.

How Do I Construct a Best-Fit Line?

A best-fit line is meant to mimic the trend of the data. In many cases, the line may not pass through very many of the plotted points. Instead, the idea is to get a line that has equal numbers of points on either side. Most people start by eyeballing the data.

1. Take a look at the data and ask yourself these questions:
   • Does the data look like a line? or a big blob? Try to approximate the general trend of the data with your mind (even if it's just a blob)

   • Does the trend of the points look positively

     correlated (like they rise up to the right; click on image at right) or negatively correlated (like they start high near the x-axis and get lower as they approach the y-axis; see image to the left)? Your trend line (when you're finished with the next steps) should mimic those correlations.
   • If you blur your eyes, can you see a thick line trending in one direction or another? This is another way to visualize the trend of the data.
2. Now that you have an idea of the general trend of the data, there are two possible ways to construct a best-fit line by eye. You may use either of them; both are correct and relatively easy ways to get a pretty accurate representation of a best-fit line. Pick the one that makes the most sense to you. The first method involves enclosing the data in an area:


   1.

      Show credits

      Hide

      Geochemical data from dacites erupted from Lassen Peak in 1915. Data collected by Rachelle Kernen, undergraduate student at University of Wisconsin, Oshkosh, and presented at the Fall Meeting of AGU in 2007.
      Begin by plotting all your data. For this example, we will use some geochemical data from Lassen Peak, a volcano in Northern California that last erupted in 1915 (the data was collected by an undergraduate research student at University of Wisconsin, Oshkosh!). Here is a plot of sodium oxide (Na₂O) vs. silica (SiO₂) from the 1915 eruption of Lassen Peak. You can download and print this plot (Acrobat (PDF) 171kB Aug27 08) to use with this exercise.


   2. Draw a shape that encloses all of the data (try to make it smooth and relatively even).
      Show me the Na plot with data enclosed in an area
      Hide

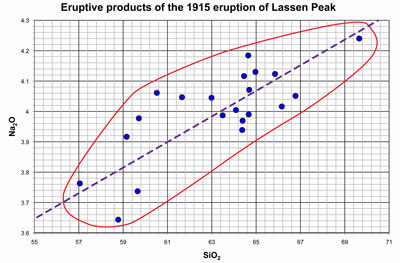

   3. Draw a line that divides the area that encloses the data into two even-sized areas. In other words, bisect the area with a line that goes from one edge of the plot to the other.
      Show me a line bisecting the area enclosing Na data
      Hide

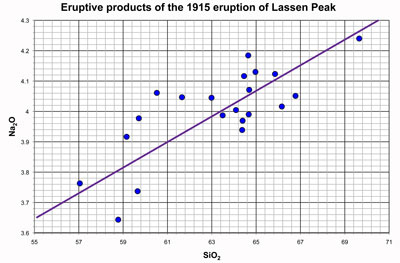

   4. Congratulations! You have just constructed a best-fit line through the data!
      Show me the best-fit line
      Hide
      Note that it is not necessary for the line to pass through ANY of the points on the plot, it is only important that your line bisect (cut in half) the area that encloses the data points. Now you can use the line to predict behavior. Or, you can examine the other method and try it out.
   Note that the more tightly clustered the data, the smaller the area is going to be. We can do the same thing with Al2O3 data from Lassen Peak and see the difference.


   1.

      Show credits

      Hide

      Geochemical data from dacites erupted from Lassen Peak in 1915. Data collected by Rachelle Kernen, undergraduate student at University of Wisconsin, Oshkosh, and presented at the Fall Meeting of AGU in 2007.

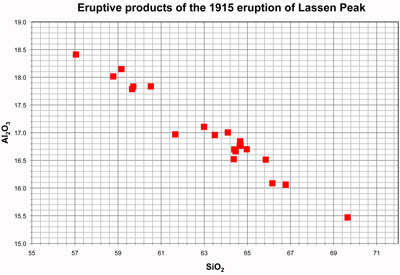

      We begin by plotting Al₂O₃ data vs. SiO₂. You can download and print this plot (Acrobat (PDF) 164kB Aug27 08) to use while you work through this exercise.
   2. Draw a shape that encloses all of the data.
      Show me the Al₂O₃ plot with data enclosed in an area
      Hide
      Note that the area is smaller than in the Na plot above because there is less scatter in this data.
   3. Draw a line that divides the area that encloses the data into two even-sized areas. In other words, bisect the area with a line that goes from one edge of the plot to the other.
      Show me a line bisecting the area enclosing Al₂O₃ data
      Hide

   The second method involves dividing data into two equal groups, approximating the center of each group and constructing a line between the two centers.


   1.

      Show credits

      Hide

      Geochemical data from dacites erupted from Lassen Peak in 1915. Data collected by Rachelle Kernen, undergraduate student at University of Wisconsin,Oshkosh, and presented at the Fall Meeting of AGU in 2007.
      Begin by plotting all of your data. For this exercise, we'll use the Na₂O data from above.

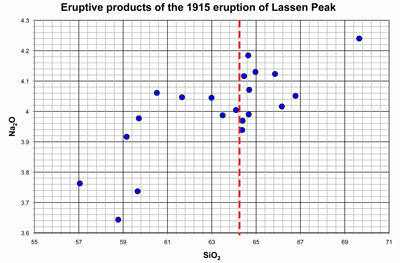

   2. Draw a dotted line that divides the data into two (even numbers of points on either side of the line)
      Show me the Na plot with dotted line drawn
      Hide

      In this case, there are 21 points on the graph, so, to the best of your ability, draw a line that has approximately 10.5 points on either side of it. There are three points that are really close to the line, so do your best.
   3. Place an x (or a + or a dot) in your interpretation of the center of the data on either side of the line.
      Show me x marks at the center of data clusters
      Hide

      Your x marks may not be in exactly the same place as mine; that's okay, we all see things slightly different. They shouldn't be too far off, though.

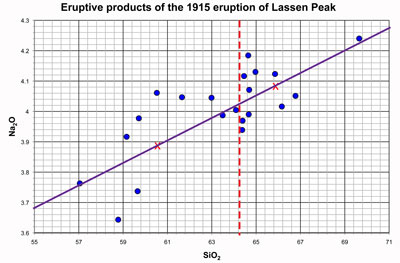

   4. Connect the x marks with a line that extends to the edges of the plot.
      Show me how to connect x marks with a line
      Hide

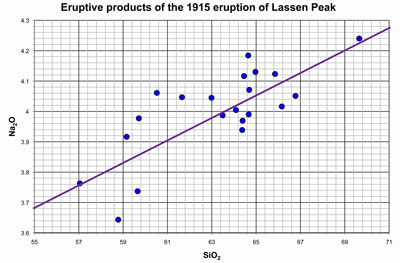

   5. Congratulations! You have just constructed a best-fit line through the data!
      Show me the best-fit line
      Hide
      Note that it is not necessary for the line to pass through ANY of the points on the plot; it is only important that your x marks are in the center of the plotted data and your line connects those x marks. Now you can use the line to predict behavior. Or, you can examine the other method and try it out.
3. Evaluate your best-fit line. Think back to the questions in number 1. Does your line look like you thought it should?


   • Do you see that there are approximately the same number of data points on each side of the line?
   • And are they evenly distributed? That is, be sure that plots with a variety of x values are on top (and bottom) of the line, not most above at the low end and most below at the high end.
   • Does your line minimize the average distance from it to each of the data points?
   Note that in some cases, best-fit lines do not pass through any of the points on the plots. It is not necessary to connect any dots when you are constructing a best-fit line.

Where Is This Used in the Geosciences?

There are many instances in the geosciences where scientists use a best-fit line. In the introductory geosciences, we use them for:

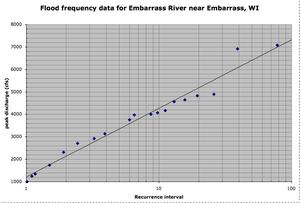

• flood frequency curves
• earthquake forecasting
• Meteorite impact prediction
• earthquake frequency vs. magnitude
• climate change

Next Steps: Some Practice Problems

I am ready to PRACTICE!

If you think you have a handle on the steps above, click on this bar to try practice problems with worked answers.
Or, if you want even more practice, see 'More help' below.

If you would like to know more about best-fit lines, you can use the links below to read more about them.

References and Resources

• Honolulu Community College has a description of the area method and a page on graphs as a part of a Physical Science course.
• Loyola University's Center for Science Education has a discussion of the dividing method here: http://www.luc.edu/cse/programs/sepup/IEY/data-analysis.ppt.
