Bubbles in Magmas
This activity was selected for the On the Cutting Edge Exemplary Teaching Collection
Resources in this top level collection a) must have scored Exemplary or Very Good in all five review categories, and must also rate as “Exemplary” in at least three of the five categories. The five categories included in the peer review process are
- Scientific Accuracy
- Alignment of Learning Goals, Activities, and Assessments
- Pedagogic Effectiveness
- Robustness (usability and dependability of all components)
- Completeness of the ActivitySheet web page
For more information about the peer review process itself, please see http://serc.carleton.edu/NAGTWorkshops/review.html.
This page first made public: Oct 25, 2007
This material is replicated on a number of sites as part of the SERC Pedagogic Service Project

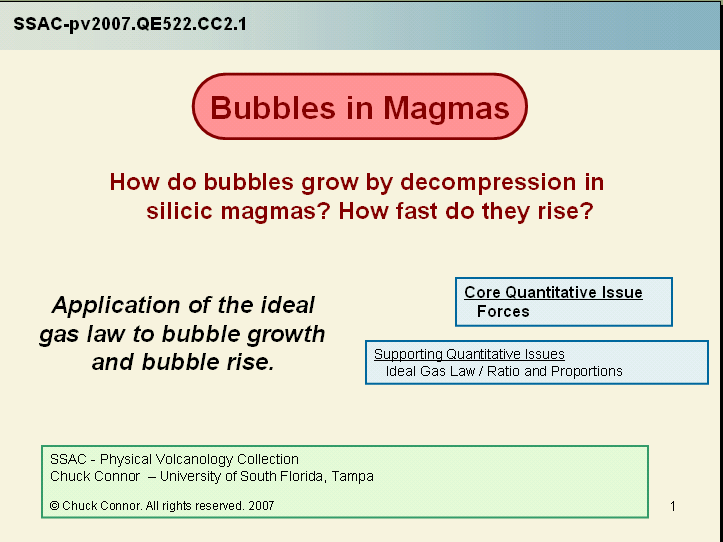

In this Spreadsheets Across the Curriculum activity, students are introduced to the process of bubble formation and rise within a magma. The ideal gas law is utilized to illustrate the change in volume of an individual bubble as it rises through the magma. Forces acting on the bubble (gravitational, viscous, and buoyant) determine the bubble's velocity. This is a self-paced activity in which students follow a PowerPoint presentation to create spreadsheets and graphs using Excel.
- Use the Ideal Gas Law to make estimations regarding the growth and rise of bubbles in magmas.
- Make use of unit conversions involving moles.
- Calculate the net forces acting on an individual bubble.
- Calculate the terminal velocity of the bubble.
- Calculate the change in volume of the bubble as a function of depth.
- Develop a spreadsheet to carry out a calculation.
- Increase their skill at unit conversions.
- Recognize the relationship between volume and pressure in an ideal gas.
- Be introduced to (or be reminded of) the various forces acting an object as it rises or falls through a medium.
- Identify the relationship between net force and terminal velocity.
Context for Use
Equipment: Each student or pair of students needs a computer with Excel and PowerPoint.
Classes: This module has been used in an Introductory Physical Volcanology course with upper level undergraduates.
In the class, the module was introduced during lab to be completed as homework due the following week. Students turned in hard-copies of the Excel spreadsheets and graphs, as well as their working Excel files. This worked well for junior and senior level students with excellent quantitative skills.
Description and Teaching Materials
If the embedded spreadsheets are not visible, save the PowerPoint file to disk and open it from there.
This PowerPoint file is the student version of the module. An instructor version is available by request. The instructor version includes the completed spreadsheet. Send your request to Len Vacher (firstname.lastname@example.org) by filling out and submitting the Instructor Module Request Form (Acrobat (PDF) 91kB Aug20 12).
Teaching Notes and Tips
This module, like the others in this collection, works best if coordinated with lecture and lab material.
If students have difficulty in getting their equations to produce the correct numbers in the orange cells -- especially if their results are off by orders of magnitude -- tell them to check their unit conversions. You cannot ever emphasize unit conversions enough.
Some students jump ahead to the end-of-module assignments without working through the main part of the module carefully. Those students have trouble.
The end-of-module questions can be used for assessment.
The instructor version contains a pre-test
References and Resources
Hurwitz, S., and O. Navon, 1994, Bubble nucleation in rhyolitic melts: experiments at high pressure, temperature, and water content. Earth and Planetary Science Letters 122: 267-280. [a very comprehensive introduction to essential research about bubbles in magmas].
Cashman, K.V. and Mangan, M.T., 1994, Physical aspects of magmatic degassing II. Constraints on vesiculation processes from textural studies of eruptive products. Reviews in Mineralogy, 30: 447-478. [a starting point for understanding bubbles in rocks]
