Figure 4


View Original Image at Full Size

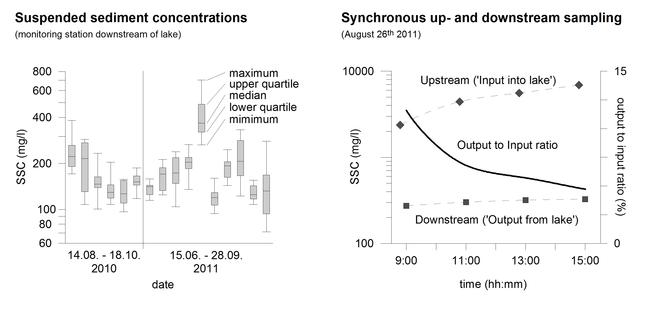

Figure 4. Box plot of suspended sediment concentrations measured at the monitoring station (left) and results of synchronous sampling up- and downstream of the proglacial lake (right). Concentrations flowing into the lake are significantly higher and were compared with concentrations flowing out of the lake to assess the quantity of sediment trapped in the lake. Note that suspended sediment concentrations in both plots are log scaled.
