Figure 6: Locations of Karst Development


View Original Image at Full Size

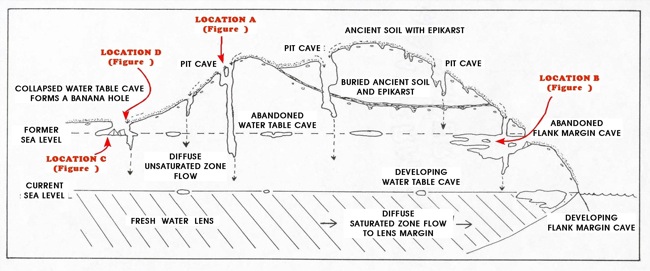

Figure 6: Karst processes operate on both the surface and subsurface. This diagram shows the locations. It is keyed to pictures of some of these features shown in Figure 7.
