Part 2—Display Data in the Graphing Tool

Step 1 – Filter the Data to Select Reynolds Jr Sr High School

As you saw in Part 1, many schools contribute to the GLOBE database, making it a powerful Earth Science tool. In this lesson, you are going to use the data from one school, Reynolds Jr. Sr. High School in Greenville PA.

In the Filters panel, located on the right side of the screen, change the Map Date to January 1, 1998. (1998-01-01)
Then click the Location / Site toggle and select the school and site.
- Select by: Schools
  School Name: Reynolds Jr Sr High School (Hint: type in the first word and use the list to find the school)
- Sites: Weather Station ATM-02
A new pop-up window will appear on the map, set the Obtain Data pull down menu to Time Series Plot and choose the Maximum Daily Temperature from the list of choices. Then click the Plot data icon located to the right of the choices.
Hint: it looks like a mini graph

Show me the settings

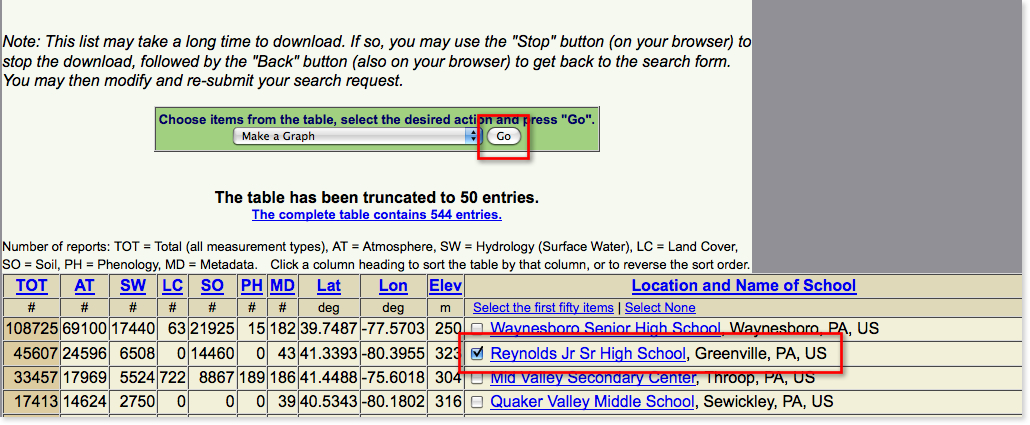

In the image below, the settings for data from Reynolds Jr Sr High School have been selected.

Step 2 – Select the Date Range

Now that you have selected the school, site, and protocol, you will use the filter to set the date range.

Under the Selected Data Graphs & Tables, set the plot date range to the following: 1996-01-01 to 2003-01-01
Check the Use Auto Y-axis checkbox.
Then click the Plot All button.
You will receive a message about the size of the data set; ignore it and click OK to continue.

Show me the settings

The settings have been set for the 5-year graph in the image below.

The error message is displayed below. Ignore it and click OK to continue.

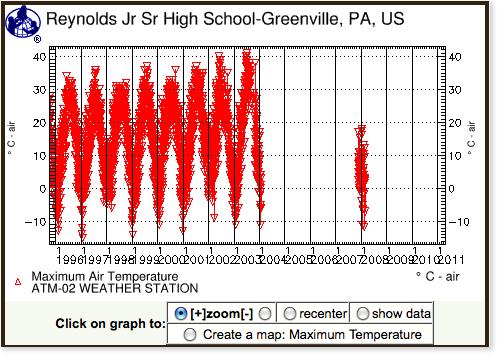

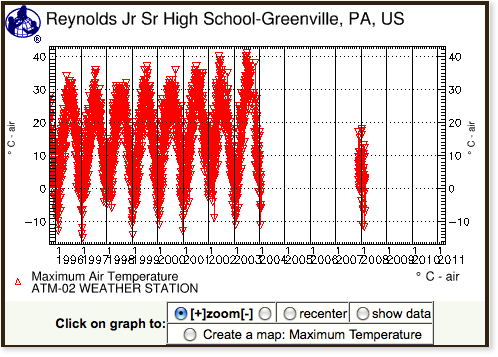

When you choose Time Series Plot and click the Plot All button, you launch the GLOBE Graphing Tool. The default graph always shows the Maximum Air Temperature data for the entire period of time that a school has been participating in the GLOBE program, but as you'll see later, there are many options for customizing your view of any data that the school has collected. In this case, you are looking at the daily maximum temperature reading at Reynolds Jr. Sr. High School across an eleven-year time period. Focus on the years where the data collection was most frequent and consistent: 1996–2003.

While looking at the graph above consider the following questions:
- The Maximum Air Temperature graph is showing somewhat of a repeating pattern here. What do you think is the reason for this?
- Is the pattern similar to one you might expect to see for maximum air temperature in your own city or town? If not, what are the differences?
Show me the answers

Hide
The graph shows 8 years of maximum air temperature. For each of those years the maximum air temperatures are lowest during the winter months (beginning and end of each year) and highest during the summer months (middle of each year). Greenville has a particular climate based on its geographic location and elevation, so the maximum temperatures across each year will look similar to one another.

Responses will vary with location. Students in the Northern Hemisphere will have a similar peak of maximum air temperature during the middle of the year, but depending on location, the range of temperatures across a year could be quite different. (e.g., coastal cities would probably show less of a temperature range.) This question provides an opportunity to discuss the factors that influence one's local climate.

Step 3 – Change the Time Frame of the Graph to Two Years

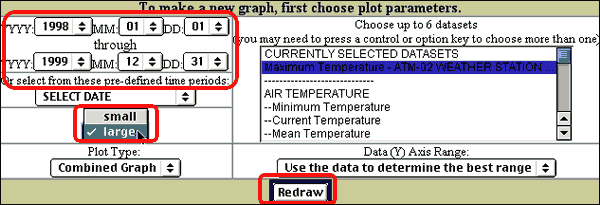

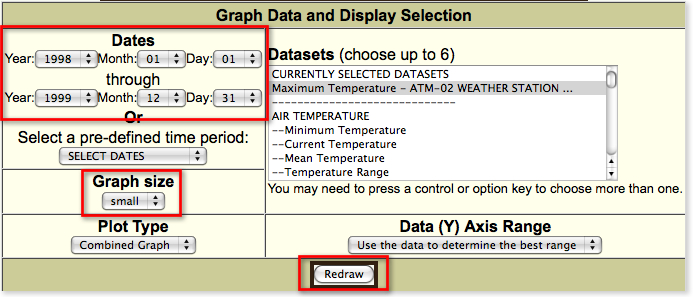

Under the Selected Data Graphs & Tables Filter, set the plot date range to the following:
1998-01-01 to 1999-12-31
Check the Auto Y-axis checkbox and then, click the Plot All button to plot two years of temperature data.

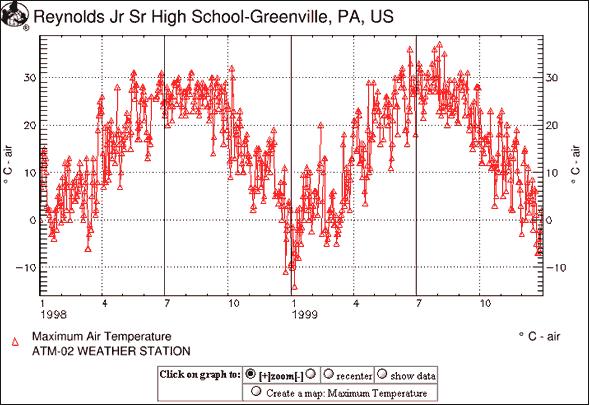

You now have just two years of maximum temperatures on the screenâall of 1998 and 1999âand you may see that each day is represented by a small red dot.

×

Provenance: Betsy Youngman, none
Reuse: This item is offered under a Creative Commons Attribution-NonCommercial-ShareAlike license http://creativecommons.org/licenses/by-nc-sa/3.0/ You may reuse this item for non-commercial purposes as long as you provide attribution and offer any derivative works under a similar license.
While viewing this new graph above, consider the following questions:
- Look at the temperature scale, which runs along each edge of the graph. On approximately what date does the highest maximum daily temperature occur in 1998? When does it occur in 1999?
- Compare the two years and describe the differences and similarities you see.
Show me the answers

Hide
The summer of 1998 is clearly cooler than the summer of 1999. In 1998 the highest maximum air temperature occurs in early October. In 1999 the highest maximum air temperature occurs in early August.

Responses will vary. January of 1998 started with warmer weather than 1999, and the summer of 1998 was a cooler summer than the summer of 1999. The temperature range in 1999 was greater than the temperature range in 1998. Both years show the maximum air temperature generally increasing and decreasing in a similar way. In both years, there are days when the maximum air temperature jumps quite a bit above or drops below days before or after, and then returns to a more typical value.

Step 4 – Add Data for Soil Moisture (10 cm) to the Graph

Repeat steps 1-3, above, to add soil moisture data to your map and to the Selected Data Graphs & Tables list.

First, select the school, then the soil moisture (SMS) site.
Show me details
Keep the date range the same as the temperature data. (1998-01-01 to 1999-12-31)

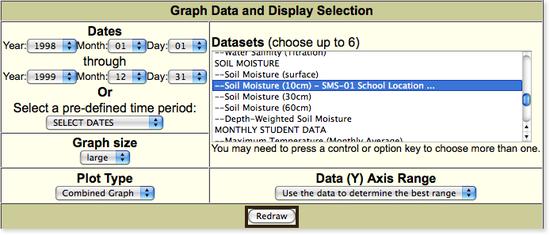

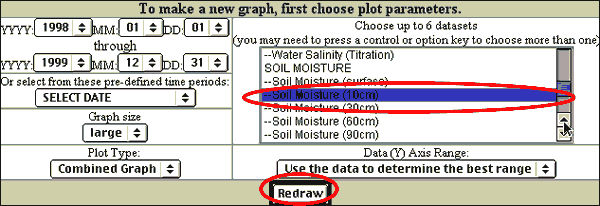

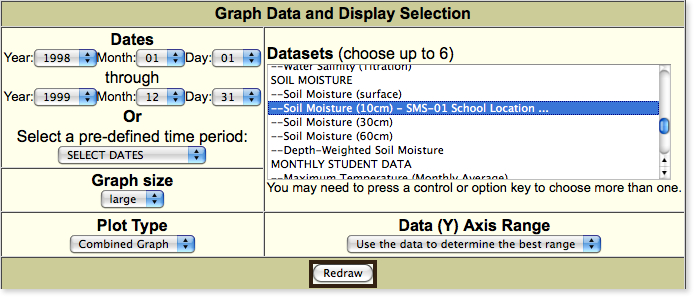

Next, in the Layers list, click the Add + data link. Choose the Soil > Soil Moisture (Sensors) from the Protocol drop-down menu. Select the 10 cm soil Sensors Moisture radio button and then click the Plot data button. You should now see a second data layer in the list of data to graph as well as a new icon and legend on the map.

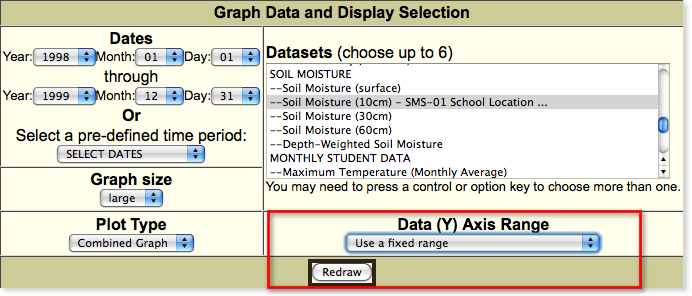

Show me the settings

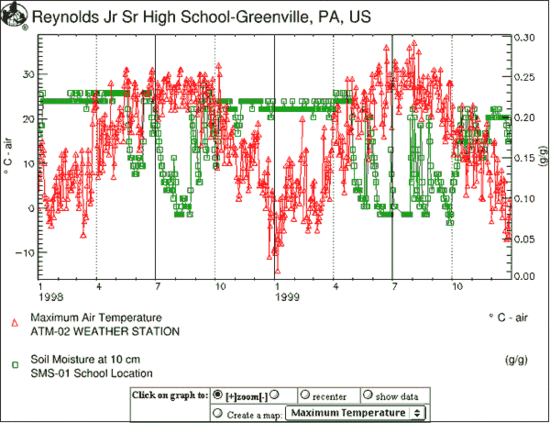

You should now have two data sets that appear in the graph. Soil moisture content is defined in terms of weight. It is a measure of the weight of water that exists in a gram of soil. Notice that the scale along the right side of the graph has changed. The unit of measurement for soil moisture is gram/gram, or g/g.

×

Provenance: Betsy Youngman, none
Reuse: This item is offered under a Creative Commons Attribution-NonCommercial-ShareAlike license http://creativecommons.org/licenses/by-nc-sa/3.0/ You may reuse this item for non-commercial purposes as long as you provide attribution and offer any derivative works under a similar license.
While viewing this new graph above, consider the following questions:
- During which months does soil moisture at 10 cm remain basically steady?
- During which months does soil moisture at 10 cm change quite frequently?
- What change do you notice as you compare soil moisture for 1998 with 1999?
Show me the answers

Hide
The soil moisture at 10 cm below the surface remains basically steady during the months of January, February, March, and April.

Soil moisture levels change most between the end of April and the end of November. In 1999 soil moisture levels at 10 cm were lower for a longer period of time.

Step 5 – Add Data for Soil Moisture (90 cm) to the Graph

In the Selected Data Graphs & Tables list, you should now see two data sets:
- SMS-01 Soil Moisture Sensors 10 cm Depth
- Weather Station ATM-02 - Air Temperature Dailies
Repeat the steps from above to add a second soil moisture dataset to your graph.
Show me how

Hide
2. Be sure that you have chosen the soil moisture site (SMS) from the list of school sites given in the Filters list.
3. Choose the Soil Moisture (sensors) from the drop-down menu.
4. Select the 90 cm soil moisture sensors radio button, and then click the Plot data icon.
In the Filters list, under Selected Data Graphs & Tables, you should now see three data sets in the list.

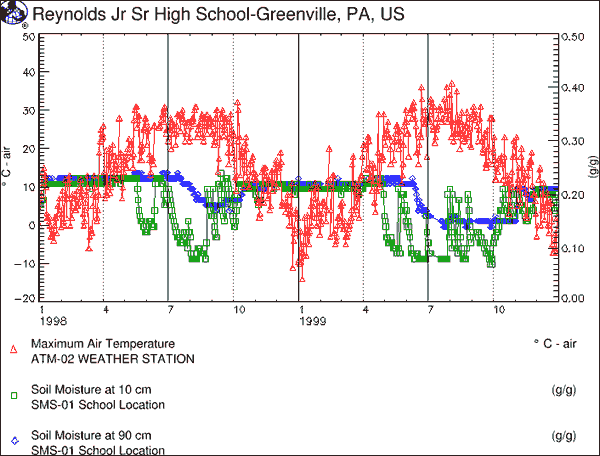

Click the Plot All button again. A new graph will be generated with all three data sets.

While viewing this new graph above, consider the following questions:
- In what ways is the graph of Soil Moisture (90 cm) similar to the graph of Soil Moisture (10 cm)?
- In what ways are the two Soil Moisture graphs different?
- How does the 1998 graph compare with the 1999 graph for soil moisture at each depth?
Show me the answers

Hide
Through April the soil moisture levels at 10 cm and 90 cm are both quite stable. Soil moisture at 90 cm remains stable later into the summer, after soil moisture at 10 cm has started to change dramatically. At 10 cm, the soil moisture in 1999 was more variable and for a longer period of time than it was in 1998. At 90 cm, soil moisture in 1999 dropped to a lower level than it did in 1998 and remained there for a longer period of time.

Step 6 – Add Data for Rainfall to the Graph

Return to the Filters panel and select the following:
- School Name: Reynolds Jr Sr High School
- Sites: Weather Station ATM-02
In the pop-up window, under protocols, select Atmosphere > Precipitation > Rain Depth from the protocols drop-down menu, and then click the Plot data icon. In the Filters list, under Selected Data Graphs & Tables, you should now see four data sets in the list.
Show me the settings

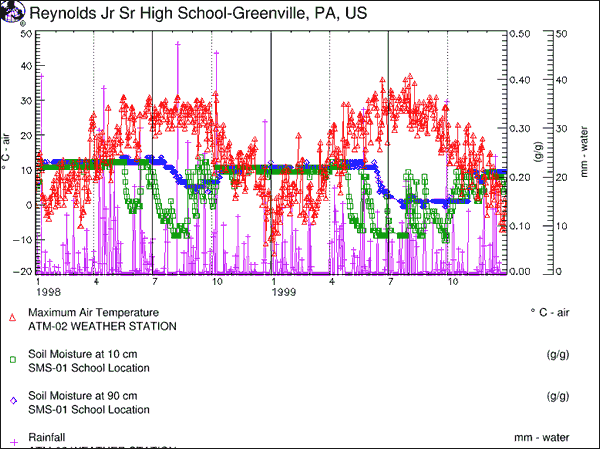

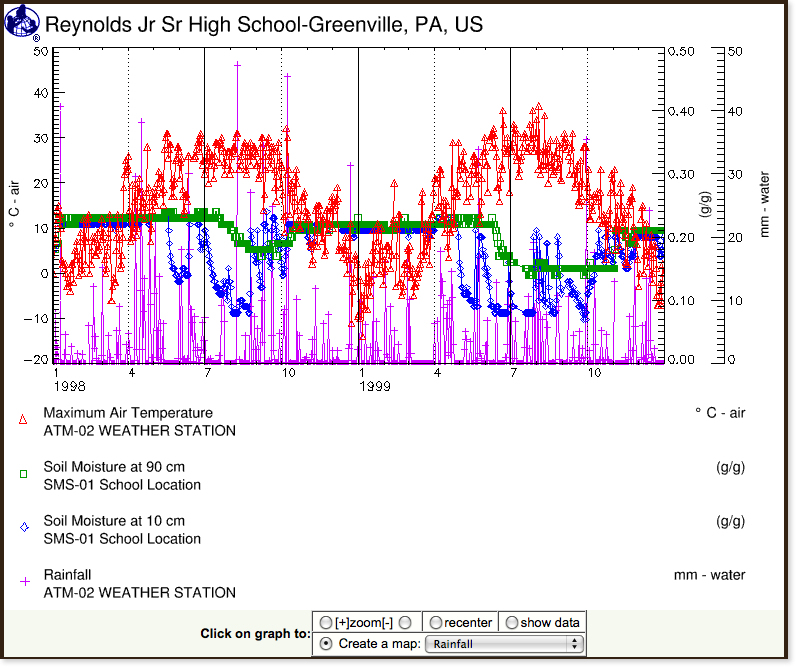

Keeping the date range set to the same 2-year period, click the Plot All button. A Time Series plot of all four variables will be generated.

Notice that a new scale has been added to the right of the graph, and that the unit of measurement is mm for millimeters of rain. There is now a lot of data crowded into a small space. In Part 3, you will be getting a closer look at the details. However, you should be able to see enough detail to answer this one last question about the data.

While viewing the graph consider the following questions:
- Look at the rainfall data for both years. Do you think that Greenville, PA has a rainy season?
- Is there a rainy season where you live?
Show me the answer

Hide
There is no clear "rainy season" pattern in Greenville. Some months appear a little wetter than others, but rainy days are well distributed across the year.
