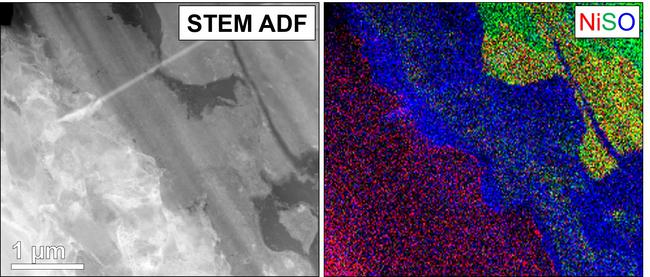

TEM image and compositional map of the meteorite case study sample used in Day 2 of the workshop, which illustrates boundaries between iron metal (left), magnetite (middle), and iron sulfides (right).
