Temperature distribution above a conduit


View Original Image at Full Size

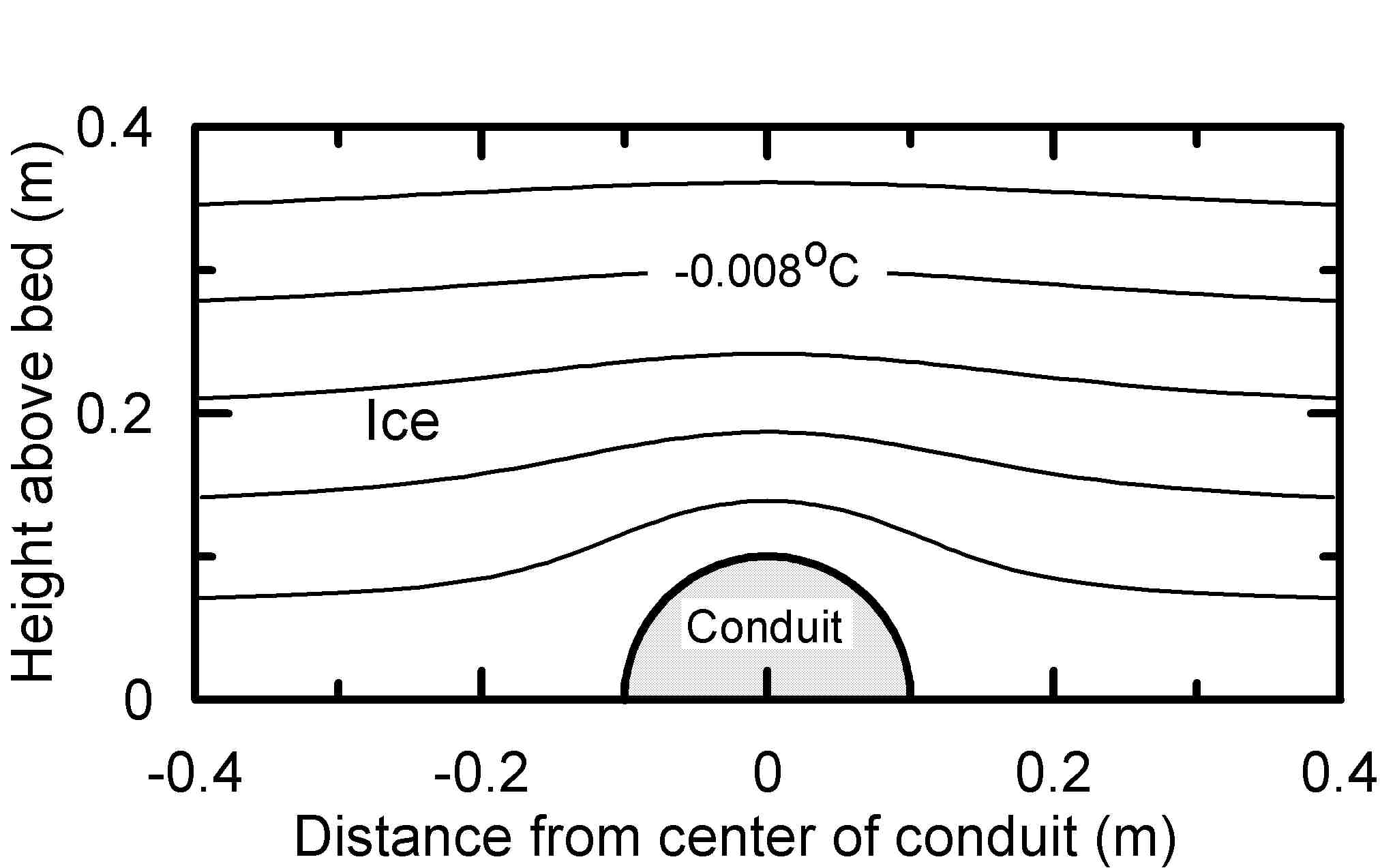

Figure 6. Calculated temperature distribution in cold ice above a conduit at the pressure melting point. βo is taken to be –0.03 K m-1.
