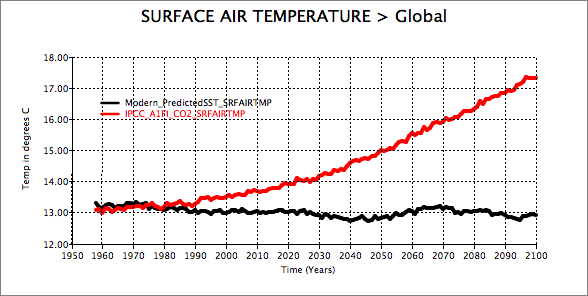

Graph of Surface Air Temperature comparing the A1Fi scenario with a baseline scenario.

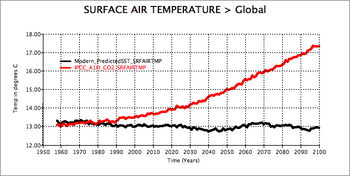

EdGCM computer software is capable of producing both map-based and graphical outputs. The graph of the right is a graphical output of temperature change over time comparing a baseline and modeled output.
Grade LevelThis chapter is appropriate for students in grades 9-16.
Learning GoalsAfter completing this chapter, students will be able to:
- gain insight into how Global Climate Models (GCM) are used to investigate global warming;
- analyze climate simulation data;
- compare and contrast the results of their global warming experiments with the actual observations compiled by climate scientists;
- use EdGCM to visualize climate change's impact on a region and system of their own choosing; and
- have the opportunity to present their visualization results to the class via PowerPoint or with the EdGCM journal feature.
Lesson ObjectivesWhat are the big ideas and enduring understandings of this unit?
- Energy transfers control the weather and climate.
- Scientists use the laws of physics to predict future events.
- Science is collaborative – teams of individuals work together to design experiments, present and understand outcomes.
- The scientific method and mathematical models are used to understand the earth system and some implications of climate change
- Scientific understanding is iterative; is a logical and rational order of steps by which scientists come to conclusions about the world around them with.
What are the essential questions needed to lead to this understanding?
- How is climate modeling a form of experimentation that leads to an increased understanding of the earth system?
- What are the important parts of a climate model?
- How do scientists "program" a model? What variables are significant when designing an experiment to test climate change hypotheses?
- What does the GCM predict about future impacts of climate change on water resources?
RationaleGlobal climate models are one of the primary tools used today in climate research. Because of the computer computational requirements these models were originally developed and housed at national laboratories run by the government science agencies. NASA's climate modeling lab, the Goddard Institute for Space Studies (GISS), is located at Columbia University in New York City (this is also where EdGCM was developed). NOAA's lab, the Geophysical Fluid Dynamics Laboratory, is located in Princeton, New Jersey, while NSF funds the National Center for Atmospheric Research (NCAR) in Boulder, Colorado.
As a result of their complexity, these models are not well understood by the general public. This EET chapter strives to give teachers and students the opportunity to more fully understand the process and potential of climate modeling through a hands-on interaction with an educational version of climate modeling software. This educational version of the software differs from the original climate modeling software only in that it is designed to run on school computers, which are generally smaller and have less computing power than the supercomputers used by national labs.
Background Information and ResourcesBasic information about the climate modeling and EdGCM written for teachers by the EdGCM team is available at EdGCM website. Part 1 of this chapter includes an introduction to climate modeling.
Some additional science articles on climate modeling that may also be of interest are listed below. Keep in mind these articles range in depth and difficulty. Please keep the age and ability of your students in mind when assigning reading. These resources may also be used for classroom presentation.
- United State Global Change Research Program has excellent up to date report on global climate change impacts on the United States. It also includes a summary of Global climate change.
- Complete IPCC reports are available online.
- Wikipedia Climate modeling webpage
- Introduction to climate prediction
- Background PowerPoint on EdGCM for use in presentations EdGCM powerpoint (PowerPoint 6.8MB Aug23 09)
- IPCC WG1 AR4 report chapter 4, Observations: Changes in Snow, Ice and Frozen Ground IPCC WG1 AR4 report
- IPCC WG1 AR4 report Frequently Asked Questions IPCC WG1 AR4 report FAQ's
- Manual for EdGCM (Acrobat (PDF) 7.2MB Aug15 09) is an excellent resource for "how to use" the software.
- Arctic Report Card 2010 NOAA Terrestrial Snow
Glossary of Terms
- Climate forcing: a variable that impacts climate, usually the focus of the climate experiment. Sets into motion the change.
- Climate feedback: an element of the climate system altered by the climate forcing, which further amplifies or dampens the original effect. A feedback is said to be positive if it amplifies the effects, and is negative if it dampens them. Climate changes caused by positive feedbacks are often greater than those due to the original forcing.
- Global climate model (GCM): computer model that simulates Earth's climate system in 3-D.
- Grid cells: The 3-D elements into which the GCM's atmosphere, oceans and land surface are divided. The boundaries of grid cells are commonly expressed in degrees of latitude, longitude and height.
- EdGCM - Educational Global Climate Model. A suite of software that allows users to set up and run a NASA climate model, as well as analyze and visualize the resulting data through a point-and-click interface.
- EVA - EdGCM Visualization Application. Software for making maps and line plots of the EdGCM model data.
- Experiment: One or more climate model simulations that are undertaken to test a hypothesis, make a discovery, or explore physical processes.
- Fundamental Physics Equations: The essential, basic equations that calculate the Temperature, Pressure, Winds and Humidity at every grid cell in the GCM. They include four conservation equations (Mass, Moisture, Momentum, Energy) and the Equation of State.
- Parameterizations: additional equations used by the GCM to calculate variables based on relationships derived from observations, experiments or theoretical analysis.
- Resolution: the number of grid cells per unit area. A higher resolution model contains more grid cells per unit area.
- Scenario: a set of conditions defining the characteristics of a simulation, including the geographic features as well as the state of climate forcings through time.
- Future Climate Scenario: a scenario derived from social, economic and population growth predictions as well as fuel sources and advances in technology. Used with a GCM to examine the range of possible future climates.
- Past Climate Scenario: a scenario whose set of conditions was derived from observations of past time periods. The observations are said to be "instrumental" if they were made using modern meteorological devices, or "proxy", if they were derived using geological methods.
- Simulation or Run: The set of physical conditions and control parameters (such as the period of time to be simulated) that define an individual scenario setup for the GCM experiment.
Students will gain more from this exercise if they already have a basic working knowledge of climate and the factors that control it such as: elevation, latitude, the Earth's orbit, seasons, temperature and precipitation. This unit can be used as a stand-alone unit or embedded in a larger unit on climate change. Ideally, students should also know basic information on greenhouse gases, the IPCC reports and scenarios, and the issues surrounding climate change impacts. This background information can be found online at IPCC home or in most environmental science texts. A helpful, although somewhat technical, summary document from the ARWG 4 report is the frequently asked questions page. Other helpful background documents on climate modeling can be found in the reference links above. Listed below are four excellent sources of information on climate change.
- Weather and Climate Basicsbackground information from UCAR
- About Climate ResearchNCAR
- Earth Lab: Degrees of ChangeInteractive from Koshland Science Museum
- Short webcasts about climate changeNCAR Scientists Discuss Global Warming and its Impacts
Students begin this lesson by examining decreasing snow and ice coverage. Using this case study as the initial introduction to the technical skills needed to use EdGCM, students can use EdGCM to investigate other subjects and questions of their own design. Students can use EdGCM to investigate the impacts of climate change on temperature, precipitation, snow and ice coverage. Students will relate global processes to changes that affect them at a local level. The contexts or subject areas that this lesson is suited for are broad. The outcome of the discussions will be guided by the parameters set by the individual instructor. The outcome could be, social, environmental or economic. This lesson is suitable for environmental science, world politics, geography, or earth science classes.
A printable (PDF) of this lesson is available here. EET_EDGCM_PDF (Acrobat (PDF) 6.5MB Jun5 10)
As this lesson is outlined, students begin as a large class for part 1, move to individual or paired grouping for parts 2-5 and then form small "research" teams for part 6. The final class period should be a large group discussion of the research team findings and a comparison of the students' observations with those of the IPCC global impact reports (more info) .
- Begin lesson with a recent news article or video clip.
Suggestions for online videos:
- The Heat of the Moment website has numerous short documentaries from around the world.
- The opening scene of Heat Frontline is excellent.
- World glaciers are declining, as shown in On Thin Ice.
- Share a selection from Thoreau's Legacy: American Stories about Global Warming American Stories.
- Use a world map to discuss the concept of the regionalism of climate impacts. Suggestions for online maps:
- Show the introductory EdGCM powerpoint (PowerPoint 6.8MB Aug23 09). Explain climate change and climate modeling.
- Review the background information and Case Study as a class. Alternately, begin the lesson with the information and suggested activity described in Part 6 - design your own investigation for a more global perspective.
- Optional alternative: Give students an introductory worksheet with the EdGCM buttons and toolbars defined. Allow time for students to explore the software before beginning the lesson.
- Complete the lesson parts 1-6.
- Wrap-up the lesson with impacts presentations and group activity from part 6. A possible alternative lesson plan to use with this section is this group decision making activity.
- Show the Americas Choice video. Discuss what is being done by the United States and what can individuals do? Use resources such as http://www.koshland-science-museum.org/exhibitgcc/responses01.jsp carbon footprint calculator and /or heat of the moment, see the "share your story" section.
Assessment of Student LearningTeachers can adapt these assessment suggestions to their own classroom situation.
- Student work can be collected.
- Students can create e-portfolios of their work including answers to questions, maps and graphs.
- Part 6 - Design Your Own Investigation, could stand alone as an assessment of student work.
Estimated times for completing the Case Study and each Part of the chapter. Total time 3-6, 45-minute periods will be needed to complete the case study and exercises.
Running the climate model is a time consuming step, taking anywhere from 12 to 24 hours per simulation. It is suggested that teachers begin the program well (several days) in advance of using it with classes. As an alternative to running the model, it is possible to directly download the output file. Instructions for this shortcut are listed at the bottom of the page in Part 1.
Step-by-Step; Outline and Descriptions
Preview -Introduction and Case Study
(45 minutes-can be done as homework)
Part 1-(1-24 hours, depending on connection) Download software, run simulation or download the output files for the 2 model runs; IPCC A1FI CO2 and Modern_PredictedSST
Part 2- (30 minutes)Prepare - Read background materials and discuss the theory of climate modelling.
Part 3-(45-90 minutes) Engage – Generate and Analyze a Time Series graph of temperature.
How dramatically will the Earth's surface temperature rise in the next century? What exactly is a model? How do climate change models work? What goes into the programming of a climate model?
Part 4-(50 minutes) Explore – Generate maps of surface air temperature using EVA.
Use Analyze Output in EdGCM to generate data sets that can be mapped. Then use EVA to create several maps of temperature and snow and ice coverage under both global warming and non-global warming scenarios. Discuss why averaging is important.
Part 5-(50 minutes) Examine – How will climate change impact winter snow and ice in the northern hemisphere?
Use EVA to create a difference (anomaly) map of Snow and Ice Coverage.
Part 6-(30 -60 minutes) Elaborate (and Assess) – Learn about climate changes impacts on another region, present findings to class.
Use EdGCM and EVA to investigate another region and impact of your choice. Present your findings to the class. Why is climate change a truly global problem?
