alluvial_strat._schematic


View Original Image at Full Size

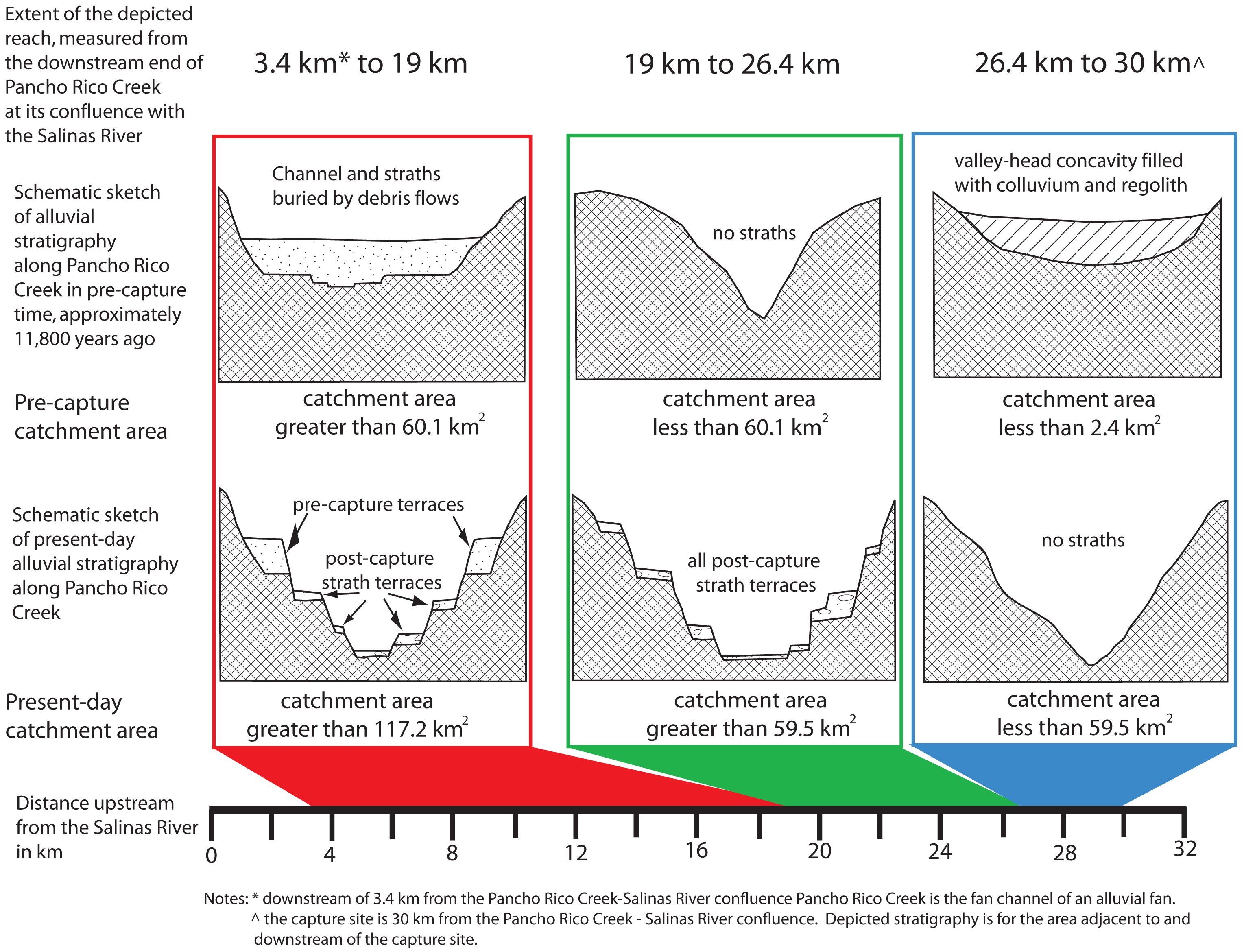

Figure 4: schematic representations of the alluvial stratigraphy along different reaches of Pancho Rico Creek. The diagrams illustrate the difference in the along-channel distribution straths in pre- and post-capture time, and the different characteristics of strath terraces in pre- and post-capture time. Only the reaches of Pancho Rico Creek that are studied in detail in Garcia (2006) as well as Garcia and Mahan (2009) are included in the diagram.
