Summary
High speed video of a roller coaster allows students to perform careful analysis of a familiar situation.
Students use high speed video to determine whether a roller coaster is an example of a system in which mechanical energy is conserved. Students use frame counting to measure the speed of a roller coaster as it heads up a hill, and then measure the speed as the roller coaster comes back down the hill. The outcome of the measurements depends on which part of the roller coaster they measure because a motor continues to propel the roller coaster until it begins to climb the hill.
This activity follows on the activity Measuring velocity of objects using video clips.
CollapseLearning Goals
The activity is intended to give students experience extracting data from video clips, and use physics concepts and reasoning to make conclusions about the situation.
In this case, students use the video to determine the velocity of a roller coaster and apply the law of conservation of mechanical energy.
Context for Use
This activity is intended for use in any introductory physics course. Ideally, each student should have access to a computer to complete the activity individually, but it can be done in groups or even as an interactive lecture demonstration. Although the video could be used as an introduction to the topic of conservation of mechanical energy, it is even better after students have learned the topic, so that students can apply this new concept to a real-life example.
Description and Teaching Materials

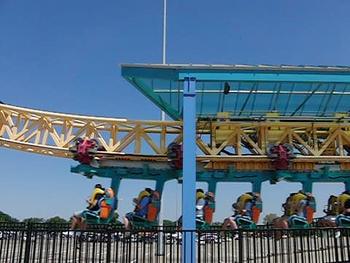

The ride in question is called "Steel Venom," a roller coaster at Valley Fair in Shakopee MN. Included here are all the ingredients needed to use this activity.
- Quicktime video clip of the entire ride (60 frames-per-second) - quicktime movie of Steel Venom roller coaster (Quicktime Video 7.3MB Aug31 10)
- Quicktime video clip of the ride rounding an upwards corner. (210 frames per second) - high speed quicktime movie of steel venom roller coaster (Quicktime Video 26.4MB Aug31 10)
- A sample lab write-up, including detailed instructions, questions and sample calculations. The instructions in this document are very detailed. This level of detail is included for the instructor. Individual instructors can decide how much detail to include in their own instructions for students.
instruction for conservation of energy in a roller coaster activity (Microsoft Word 312kB Aug31 10)
Teaching Notes and Tips
This activity presumes students know how to use video clips to determine the velocity of moving objects, which is covered in the activity Measuring velocity of objects using video clips.
This activity can be used in a wide variety of teaching styles. For example, the instructor can begin with a conversation about how conservation of mechanical energy applies to roller coasters and introduce the video as a conversation starter. The instructor can ask questions about the difference between an imaginary frictionless roller coaster in most textbook problems and a real roller coaster. The instructor can give the video as a challenge -- ask the students if they can develop a method to use the video to determine whether mechanical energy is conserved on this roller coaster.
For the actual analysis, students should each have their own computer. If this is not possible they can work in groups.
See a complete description of how to teach with video clips, including pedagogic strategies and a collection of sample videos.
This activity can be used in a wide variety of teaching styles. For example, the instructor can begin with a conversation about how conservation of mechanical energy applies to roller coasters and introduce the video as a conversation starter. The instructor can ask questions about the difference between an imaginary frictionless roller coaster in most textbook problems and a real roller coaster. The instructor can give the video as a challenge -- ask the students if they can develop a method to use the video to determine whether mechanical energy is conserved on this roller coaster.
For the actual analysis, students should each have their own computer. If this is not possible they can work in groups.
See a complete description of how to teach with video clips, including pedagogic strategies and a collection of sample videos.
Share your modifications and improvements to this activity through the Community Contribution Tool »
Assessment
Another similar activity, Conservation of energy while rolling down a hill, can be used as an assessment for this activity, or this one can be used as an assessment for that one. In addition, this activity is intended to increase student understanding of the concept of conservation of mechanical energy in general. As such, there are many existing assessments to evaluate students understanding of this topic.
References and Resources
Steel Venom Rollercoaster - Facts and figures about the ride
