Exploring the Moon's Albedo Using PDS Map-A-Planet DataAccess Moon Albedo Data from USGS Map a Planet
This data is from the Clementine Lunar Mission. Data is available as images and is searchable by latitude and longitude. Users can adjust the image scale. Students will also make use of mineral maps from The Planetary Science Research Discoveries organization.
Use and Relevance
To determine how a planetary body formed and evolved, we must determine the chemical compositions of distinctive geologic regions on it. It is never possible to obtain enough samples of a planet to do this job thoroughly, so planetary scientists have searched for ways of determining chemical compositions from orbit, which would allow chemical mapping of the entire surface.
The Clementine Spacecraft, which was launched in 1994, set out to undertake such chemical mapping. It used eleven different wavelenghts to map the Moon for 70 days from polar orbit. This data can be used to identify minerals on the moon and to assess the physical features of the landing site and other areas of scientific interest. For example, during its mission, Clementine found evidence of ice in craters near the polar regions.
Use in Teaching
- Understanding geologic relationships
- Identifying geologic formations
- Basic geologic processes
- Identification of lunar features
- Relationship between aerial and/or remote perspective and up-close view
- Mapping skills
- Formulating hypotheses
- Analyzing data
- Using science as an argument
- Making inferences and drawing conclusions from maps
- Interpreting information obtained from satellite-produced images
- Using maps to interpret spatial relationships between objects
- Using technology to make measurements
- Interpreting lunar mineral maps in order to select a mineral-rich landing site.
- Determining how much of a mineral concentration is needed to be economically worthwhile.
- Interpreting remote-sensing images.
- Measurements using ImageJ.
- Data analysis using Excel.
Exploring the Data
Data Type and Presentation

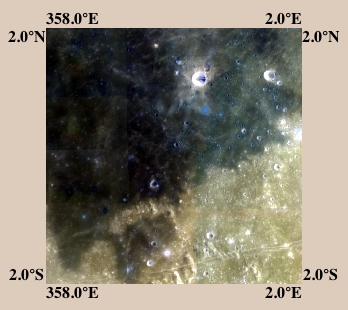

The data is presented as jpegs. The jpeg images can be retrieved by latitude and longitude.
Accessing the Data
Go to the Moon Albedo Advanced Version and type in the latitude and longitude of the area of interest. Select a scale of about .1km/pixel. Click submit.
Manipulating Data and Creating Visualizations
Students can use ImageJ to make linear measurements, make enhancements, do area measurements, and construct overlays from the mineral maps.
Tools for Data Manipulation
The Clementine site contains its own visualization tool that students can use to explore. Users can download ImageJ for free.
About the Data
Data was collected through remote sensing via satellite and transmitted by radio signal. Post-processing involved stretching, scaling, and mosaicing.
Limitations and Sources of Error
There is not a complete spectrum of the surface. There are resolution limits. As with all remote sensing data, students are seeing only the outermost layer (i.e. micrometeorites alter the surface chemically and mechanically).
