Week 7: Investigating Global Earthquake Activity

top of page

Intro to Mapping Tabular Data in My World

In the first few weeks of Module 2, you used GIS to explore many types of databases and their associated shapefiles. Features that can be drawn as points can be imported into a GIS from a data table. Once you have this technique in your skill toolkit, you can easily add data from thousands of sources, or even collect your own data with a GPS unit to add as a map layer.

top of page

Download Geographic Data About Earthquakes

top of page

Explore a Table of Data

Think about the last time you collected a set of data. You probably set up a data table with headers indicating the data you wanted to collect, including the units that would be collected. The rows of that table were set up to hold the data for each individual record or event that you planned to collect. As you made observations, you filled in the data table with whatever observations you made of each event. The table was probably organized sequentially, with the first rows being the earliest events and so on.

After the experiment was concluded you used this data table to analyze your results. Maybe you graphed the data or looked for patterns or clusters in the data. You may have used a spreadsheet program to analyze this data, especially if you were doing a more complex analysis.

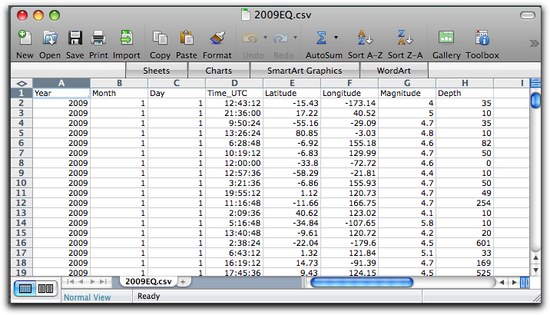

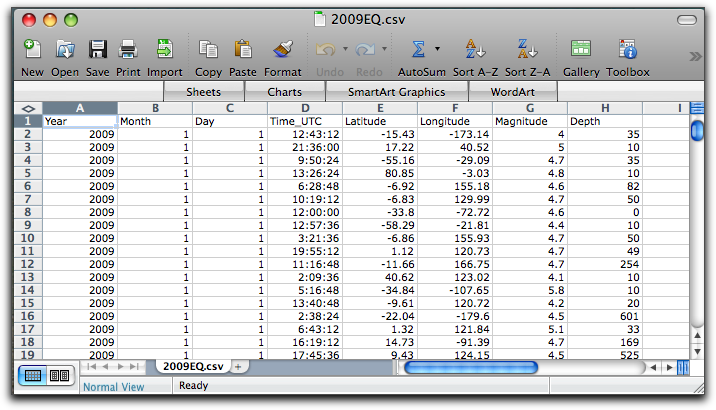

Examine the data table below. It contains both numerical and descriptive data. This table shows earthquakes that occurred around the world in 2009. The data table is similar to other attribute tables that you have worked with in this course.

EQ data in excel

Thought Question: What are the advantages and disadvantages of working with data in a tabular format?

What is absent in exclusively tabular data is the opportunity to easily inquire about spatial relationships. Fortunately, many Earth and environmental science datasets available today include some sort of geospatial reference. When the spatial data, or Longitude/Latitude data, (also called X, Y data), are included alongside other information, it is possible to place that data onto a map and see it in a richer, more complete context.

The classic example of a map illuminating the answer to a complex problem was John Snow's water pump and cholera incidence map. Can you think of other patterns that are more easily understood with a map than a list or table of data?

GIS software can bring any table or delimited list of information into a GIS map if coordinate data (Longitude and Latitude) are included with it. This week you will learn how to import these kinds of data.

top of page

Launch My World and Open the Earthquakes Project

My World Icon
1 opening equakes




top of page

Review How Longitude and Latitude Appear on the Map

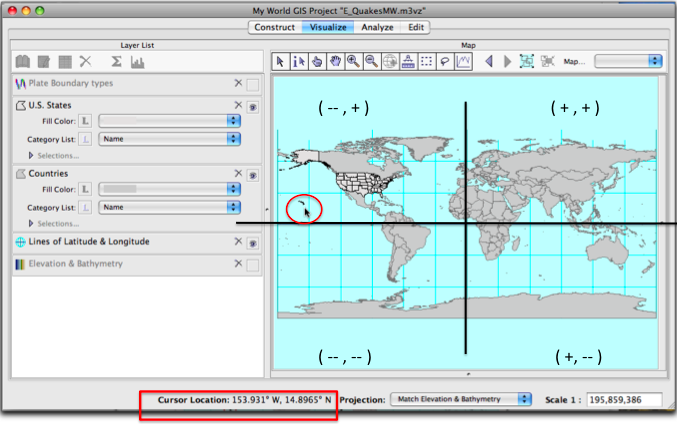

Move the cursor across the map to remind yourself how the X and Y coordinates relate to Longitude and Latitude. Start at the far left side of the map and move your cursor horizontally to the right all the way across the map. The X and Y coordinates are shown in the lower left corner of the map. Notice how the X coordinates show changes in longitude. Move your cursor vertically from the bottom to the top of the map. Notice how the Y coordinates show changes in latitude.

lat long EQ Map showing XY (longitude, latitude) coordinates.

top of page

Put Tabular Data on the Map

top of page

Add earthquake data from 2009

To map the 2009 earthquake events using Longitude and Latitude coordinates, choose File > Import Layer from File. add layer from file Single click to select the file, 2009EQ.csv and then click Open 2009EQ.csv. (Path: Applications/My World /data/EarthquakesMW/csv_files).

  • The Import Text Data dialog window the fields for your data are set to display Latitude and Longitude properly. It is set up correctly, so click OK. My World GIS imports the tabular data, places it on the map and saves a copy in the My World "data" folder on your computer.
  • The new data layer should now be visible on the map and in the Layer List. Drag it to the map and make it the Active layer and click the Zoom to Active Layer zoom to active layer button in the toolbar.
    1. Choose File > Import Layer from File..
      file import layer from file
    2. Locate the .csv file in the un-zipped folder you that downloaded. Single click to select the file, 2009EQ.csv , and then click Open.
      locate file
    3. The Import Text Data dialog window the fields for your data are set to display Latitude and Longitude properly. It is set up correctly, so click OK. My World GIS imports the tabular data, places it on the map and saves a copy in the My World "data" folder on your computer.
    4. .
      check lat long
    5. Save the newly imported csv file as a new file. Give it a new name like 2009EQ_new. save as new file
    6. Save it to the EarthquakesMW folder.
      16 save as new file 2

  • Symbolize the new layer to display medium sized blue circles.
  • Use the Edit Appearance window to set the size and color of the symbols to medium-sized blue circles. symbolize as blue circles

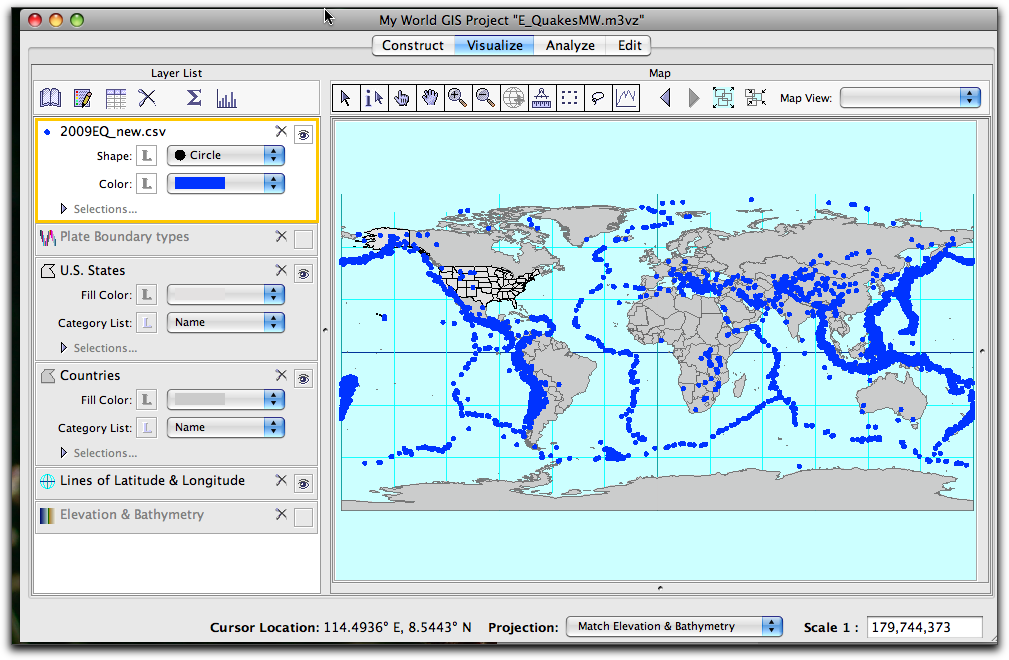

    The 2009 Earthquakes will now be displayed on the map. (Be patient. importing a CSV file especially one with many features may take time, especially on slower computers.)

    EQ on map

  • Save the CSV file as an "ESRI shapefile". Choose Layer > Save Layer As ... and save the newly imported and symbolized layer to the EarthquakesMW folder.
  • Note: If you enter the Latitude and Longitude fields incorrectly, the data will either not project or will project incorrectly. Repeat the steps above.

    The most common problem is choosing the wrong fields to use for Latitude and Longitude.

    The good news is you only have to go through this import process once. When My World imports and projects a tabular dataset onto a map it automatically creates and saves a corresponding shapefile. The next time you want to see this dataset on your map as a layer, just click the Add Layer from File button and look for the shapefile of the same name as the original table in the EarthquakesMW folder. For the 2009 Earthquake data, you will find a file called 2009EQ.shp, that has a .shp extension.


    Movie Icon

    Click on the movie to start playing.

    loading the player

    top of page

    Classify and Symbolize the 2009 Earthquake Data

    Once the earthquakes are displayed on the map, you can Classify and Symbolize them.

    top of page

    Classify the 2009 earthquakes by magnitude

    To open the Edit Appearance window for the 2009 earthquakes layer, double click the 2009EQ label in the Layer List. The Edit Appearance window will open. Select the following options:

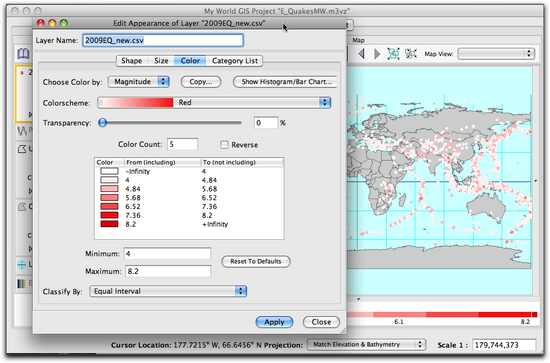

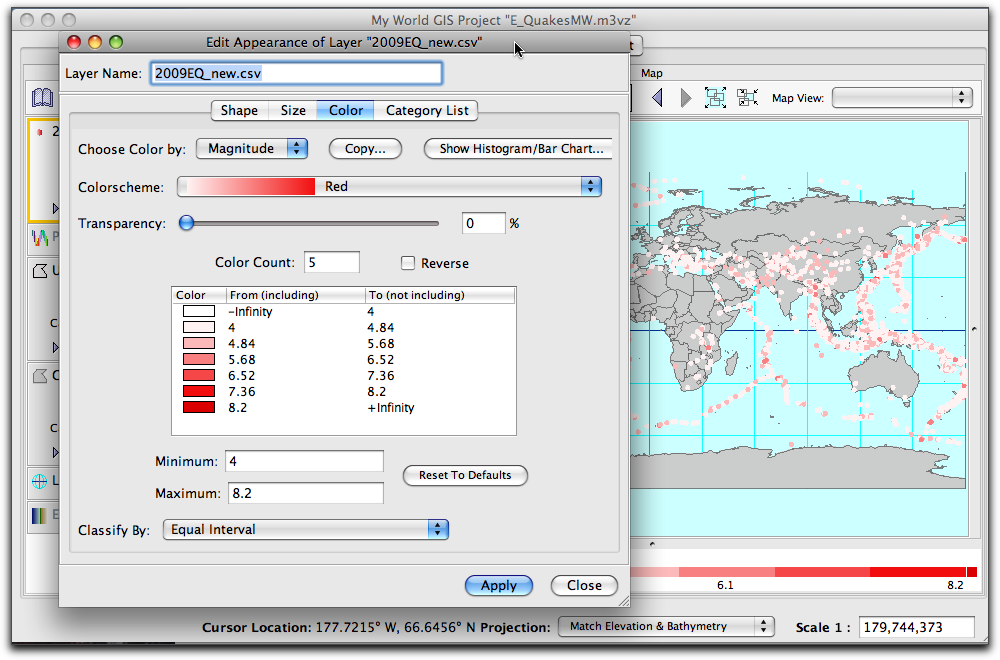

    • Here are the Edit Appearance window settings for classifying the 2009 earthquakes by magnitude.
      calssify by mag

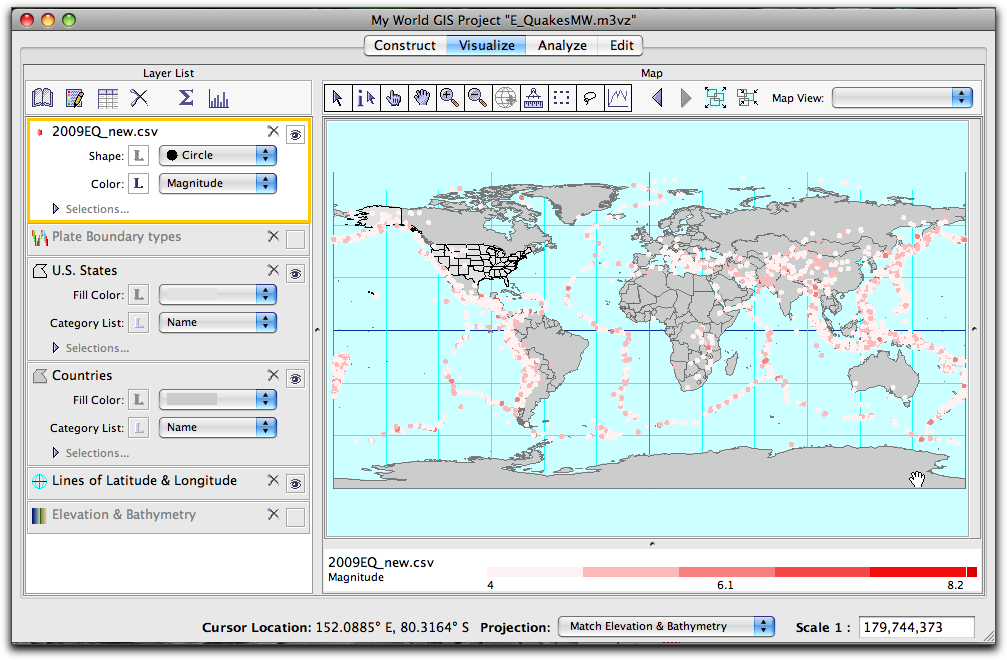

    • This map shows 2009 earthquakes classified by magnitude.
      classify by depth map

    Movie Icon

    Click on the movie to start playing.

    loading the player

    top of page

    Classify the 2009 earthquakes by depth

    To open the Edit Appearance window for the 2009 earthquakes layer, double click the 2009EQ label in the Layer List. Then select the following options:

    Movie Icon

    Click on the movie to start playing.

    loading the player

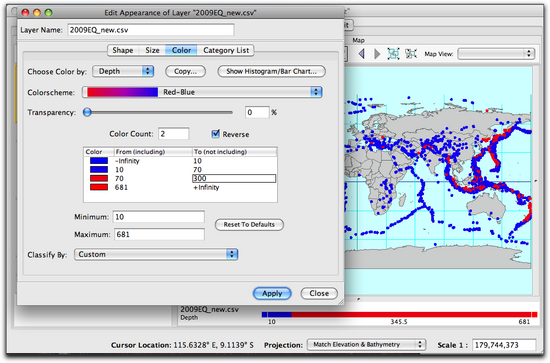

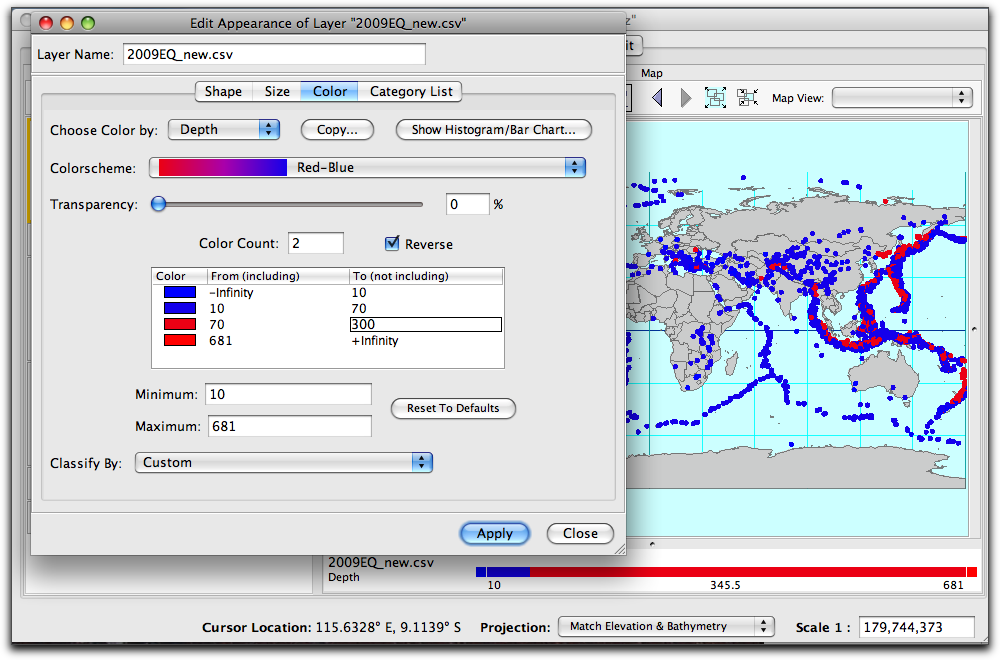

    • Here are the Edit Appearance window settings for classifying the 2009 earthquakes by depth.
      classify by depth

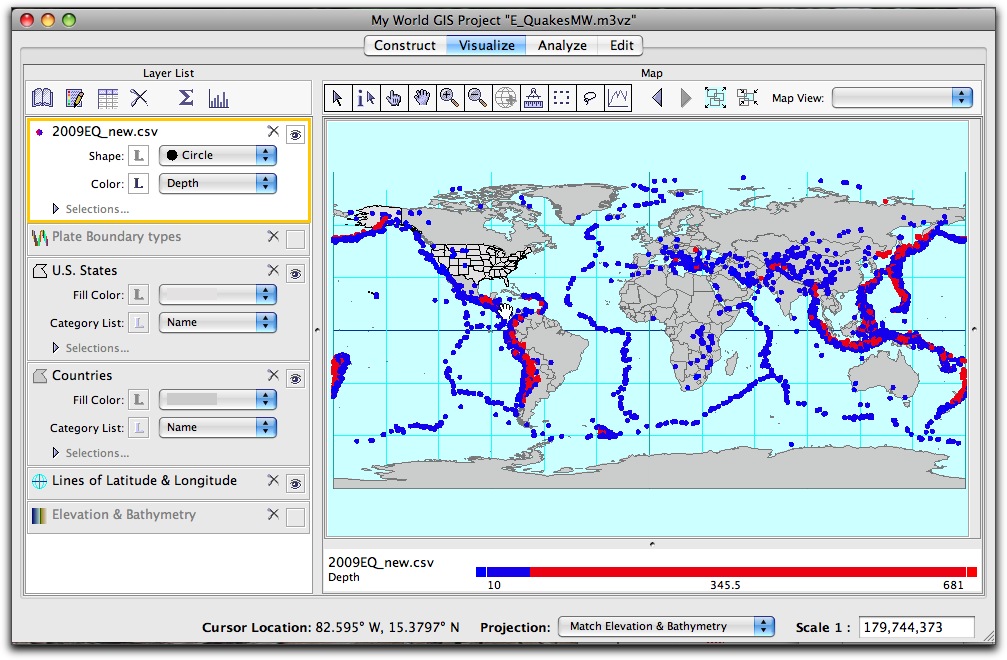

    • This map shows 2009 earthquakes classified by depth.
      clasify by depth

    top of page

    Explore other classification and symbolization options


    Try symbolizing the data by Month, or change from Manual classification to Equal Interval to Quantiles. When you are done, close the Edit Appearance window.
    top of page

    Choose Another Tabular Dataset to Add to Your Map

    Navigate to the csv_files folder and select another file to add to your map as an event theme.

    These files were downloaded from various Internet sites. To learn more about the datasets, click on the show me below or open and read the .txt files in the csv_files folder. These datasets represent a range of interests and are not intended to all magically fit together into one coherent story.

    Below is a list of the data files you can choose from in the folder:
    1. 2010 Earthquakes - (2010_quakes.csv)
    2. Groundwater monitoring sites - (GW Monitor Sites.csv)
    3. Groundwater temperature - (GW_temperature.csv)
    4. Journey North Hummingbird Migration Patterns - (Journey North HB 20093.csv)
    5. Significant and Big Historical Earthquakes - (sig_big.csv)
    6. Tornado Touchdowns in the United States 1950-2008 - (tornado touchdowns.csv)
    7. US Thermal Springs - (US Thermal Springs.csv)
    8. World Glaciers - (World Glaciers.csv)
    This PDF file has more details about each dataset. about_csv_files.pdf (Acrobat (PDF) 48kB Mar25 10)

    Repeat the procedures you learned above to bring the data into My World using Add Event Theme.

    Look for the Latitude and Longitude headers in the data table to assign coordinates to the attributes.

    Note: The Latitude and Longitude Fields may be named slightly differently in each case. Also, some of these files are large and may take a few moments to draw on your map. Be patient.
    For example:
    • Latitude may be also be labeled - LAT, Lat83, or lat.
    • Longitude may be also be labeled - LONG, or Long83 or long.
    Learning to decode the headers in an attribute table is an important skill in becoming independent in the use of data and while there are some conventions for naming data, there remain a large variety of nuances.

    If at first you don't succeed, try again!

    Once the data are displayed on the map, Classify and Symbolize them in an appropriate way.
