Carbon In the Atmosphere

Part C: Keeping track of CO2 in today's atmosphere

In Lab 3B, you observed that changes in the global carbon cycle can operate at very long time scales associated with past ice ages. In this section, you will investigate recent trends in changes in atm CO2 over much shorter time scales of years to decades. First, take a few minutes to examine the graph on the right. Click to enlarge.

Checking In

How does the current trend of atm CO2 since 1950 compare to atm CO2 over the past 650,000 years?

Variations and trends are important patterns that scientists look for in complex systems

Long-term time series data are important to scientists who study complex systems such as climate and the carbon cycle. Time series data taken at equal time intervals often generate important trends that help explain the behavior of a system over time. Scientists use trends to understand the past, the present and to predict the future. Long-term trends can emerge from data that is often quite variable and operates at very different time and spatial scales. You have already seen examples of this variability when you analyzed CO2 and temperature data from the Vostok ice cores.

To help you understand the difference between trend and variation, watch the video below:

If the video does not play, watch here: Trend and variation - YouTube

Watching Earth Breathe: Seasonal changes in vegetation and CO2

Different components of a complex system such as the carbon cycle can operate over many different time scales and spatial scales. For example, NASA has detected seasonal changes in atm CO2 concentration measured by AIRS and in vegetation growth measured by another instrument on the Aqua satellite called MODIS. NASA has used the data from AIRS and MODIS to create a year long animation of these seasonal changes in CO2 and vegetation. Before you watch the NASA animation below, make note of the following:

  • CO2 in the atmosphere is represented by the color orange. The deeper the orange, the greater the amount of CO2.
  • Changes in vegetation growth is represented by the color green. The deeper the green, the denser the vegetation.
  • You can pause the animation by clicking on the date (example SEPT 01) or by clicking pause.
  • It helps to first pay careful attention to what the vegetation is doing and then pay attention to what CO2 is doing.
  • Remember that vegetation and photosynthesis are linked.

NOTE: You can also view this video animation at NASA Viz: A Sky For All Seasons which has background information and an accompanying audio. Scroll down to the second image and click to watch and listen.


With a group or with the class, discuss the following:

  • What patterns in atm CO2 and vegetation over time can you observe in this animation? List all that you can.
  • On what time scales are the changes in atm CO2 and vegetation changing?
  • How do the spatial scales of atm CO2 and vegetation differ between the Northern Hemisphere and the Southern Hemisphere? What might account for those differences? Hint: Think about differences in land mass.
  • Explain how a seasonal change in vegetation and photosynthesis can drive a seasonal change in levels of atm CO2.
  • Did you observe any long-term trend(s) in concentrations of CO2 in the animation?

The Keeling Curve reveals seasonal patterns and a decadal trend in atm CO2

As the leading greenhouse gas, atm CO2 is the most closely studied and measured gas in our atmosphere. In the 1950s, the United States Air Force studied atm CO2as part of their Cold War missile program. In 1958, regular measurements of atm CO2began when a young geochemist named Charles Keeling collected and analyzed samples of CO2 on top of the Mauna Loa volcano on the Island of Hawaii in the Pacific Ocean. When analyzing his atm CO2 data, Dr. Keeling discovered some interesting patterns in CO2and a worrisome trend. Watch the video below on Charles Keeling and his data. As you watch, pay attention to the pattern of variations in CO2.

NOTE: You can also watch this video here: Keeling's Curve: The Story of CO2 on Vimeo

Next, use the Flash interactive below to investigate Keeling's atm CO2 data in greater depth. As you go through the interactive:
  • Keep in mind what you have already learned about the seasonality of the carbon cycle and its relationship to vegetation and photosynthesis.
  • If you click on the "more info" button, you will find hints to understanding Dr. Keeling's data. You can also find a link to the most recent monthly average CO2data measured from Mauna Loa.
  • atm CO2 is measured in ppmor parts per million per volume. Watch this visualization of 392 ppm of carbon dioxide molecules compared to nitrogen and oxygen molecules in the atmosphere to help you understand ppm.

    This content is available in flash format only

To view this interactive on an iPad, use this link to download/open the free TERC EarthLabs App.


With a peer or group, discuss the following:

  • Describe the pattern of variations that emerged from Keeling's CO2 data. Did you see these same types of variations in the NASA animation of seasonal CO2 and vegetation? Explain.
  • Describe the time series trend of atm CO2measured at Mauna Loa. What does this trend "say" about the concentration of atm CO2 since 1958?
  • What evidence, if any, does Keeling's data provide that the carbon chemistry of our atmosphere is changing?
  • The Keeling Curve represents atm CO2 data taken from the top of the Mauna Loa volcano in the Hawaiian Islands. Because of this, some people on the Internet have claimed that Keeling's data is influenced by CO2 released from the nearby volcano. Does the rise in atm CO2concentration over Mauna Loa represent a trend only on a regional scale or on a global scale? What makes you think so?

Using ESRL's CarbonTracker program to measure trends and variations in levels of atm CO2 around the world

The Keeling Curve CO2 data indicates that the amount of atm CO2measured at the Mauna Loa Observatory has been increasing since 1958, the date of the first measurement taken by Charles Keeling. Is this same trend occurring elsewhere in the world?

You may find the answer to this important question by using CarbonTracker, a program developed by The Earth System Research Laboratory (ESRL) in Boulder, Colorado and operated by the National Oceanic and Atmospheric Administration (NOAA). ESRL collects greenhouse gas measurements from participating monitoring stations around the world and inputs the data into the Interactive Atmospheric Data Visualization (IADV) CarbonTracker database tool. Scientists and non-scientists can access this database at any time.

Laboratory Investigation: Instructions

In this investigation, your group will use CarbonTracker to generate graphs of atm CO2 data measured from different sampling locations around the world. You will compare these graphs to each other and to Mauna Loa data to look for differences and similarities in trends and variations.

  1. Before you begin your investigation, it is important to spend some time familiarizing yourself with the CarbonTracker tool.

    1. Click on the Carbon Tracker: Interactive Atmospheric Data Visualization (IADV)Tool to explore its interactivity. NOTE: The CarbonTracker tool should open up at at the Mauna Loa site.
      • Drag the map from left to right or right to left to target particular countries or area of the world.
      • Zoom in to a particular country or area of the world. What measurement site is closest to where you live?
    2. Click on the different colored dots on the map. These dots represent sites where CO2 and other atmospheric gases are measured measurement sampling sites in the map. NOTE: When you click on a dot, the name of the measuring site will appear on the right hand part of the tool.
      • Blue dots represent major program sites measuring many variables.
      • Red dots are smaller program sites
      • Orange dots are oceanographic vessels measuring carbon cycle gases as they cruise
      • Yellow dots are inactive sites. Data is no longer being collected at these sites.
    3. Note the type of information that pops up at each measuring sampling site:
      • latitude and longitude
      • elevation (masl = meters above sea level)
      • the types of gases measured (e.g., carbon cycle gases, ozone etc)
      • how they measure the gases (e.g., tower, airborne flasks, surface flasks, in-situ)
    4. Explore the tabs under "Data Visualization>>Site Selection." These pull down tabs will help you filter and select the CO2 measuring sites you are interested in. Alternatively, you can hover your cursor on a blue, red or orange dot in a location that interests you.
      • Click on theSelect a Sampling Location from Lat or Map tab. This tab lets you pick the CO2 sampling sites that interest you.
      • Click on Programs and choose "Carbon Cycle Gases." This action will allow you to see only those measurement sites that collect carbon cycle gas data.
      • Click on Active Sites and choose "Active sites." This action will only show those locations that are actively measuring carbon cycle gases
      • Click on Pop-up Details and choose "Full." This action will display full site information you may want to use in your research.
      • Click on the Lat:Lon bar. This bar indicates the longitude and latitude of where you place your cursor.
    5. Move over to the menu on the right hand site of the tool and look under the heading "Select Measurement and Program Type."
      • Click on "Carbon Cycle Gases."
      • Then, click on "Time Series." This will bring you a new window in the tool that allows you to create data plots of atm CO2from this sampling site.
      • Click on Parameters and choose "carbon dioxide (CO2)."
      • Click on Data Type and choose "Flask" or "In-Situ." Many sites will only have one type. Click "Submit" if you change from one to another.
      • Click on Data Frequency and choose "discrete." NOTE: "Discrete" may be the only choice.
      • Click on Time span. Choosing "All" will give you a graph of all the data collected to date. If you decide to use a shorter time series (ex. ten years) you can choose "some -a subset" and then choose a "start year" and "end year."
      • Click on "Submit" to generate a graph of the CO2 data for this site.
  2. Make a 9 column table in your lab notebook with the following headings:
    • Name of monitoring station: (ex. Mauna Loa)
    • Location description (ex. country, hemisphere, ocean, top of mountain, Arctic etc.)
    • Latitude and longitude: (ex. Mauna Loa is at 19.54 N latitude; 155.5 W longitude)
    • Polar, temperate or tropical latitude
    • Type of measurement used – (ex. tower, surface flask, in-situ.)
    • How measurements are taken – (ex. on land, boat, or plane)
    • Elevation (masl = meters above sea level)
    • Time span (ex. 1960-2015)
    • How CO2 has changed (in ppm) in this time span.
  3. Enter the Carbon Tracker: Interactive Atmospheric Data Visualization (IADV)Tool. Once there, use CarbonTracker to generate a graph of CO2 time series data measured at Mauna Loa. NOTE: Your teacher may decide to do this with you as a class and show the graph on a smartboard.
  4. In your group, decide which three CO2 monitoring stations around the world you would like to investigate.
  5. Decide the time series you will investigate for each CO2data set. NOTE: If possible, select the same time series for all of the graphs you generate. This will allow you to more easily compare trends across your graphs.
  6. Use CarbonTracker to generate a CO2 time series graph for each sampling location you have chosen. NOTE: Your teacher will tell you how you will share these graphs with your group and with the entire class. For example, you can create a PDF which you can print, download, e-mail or send to a new window.
  7. Within your group, compare your CO2time series graphs to each other and to the Mauna Loa CO2 time series graph. Analyze the graphs for differences and similarities in trends and variations. Use the discussion questions below to guide your analysis.
  8. Compare your graphs and your analysis with the class. NOTE: Your teacher may decide to have you do a jigsaw activity or a gallery walk. Use the post-investigation discussion questions below to guide your analysis.


    In your group and class, discuss the following:
  • Describe the trends and variations of atm CO2in the three sampling sites your group investigated. How do they compare with the Mauna Loa data?
  • Are the data trends across the class exactly the same as each other or are there differences? What might account for those differences?
  • Is the rise of CO2 concentration in the atmosphere happening on a regional scale or a global scale? What is the evidence from CarbonTracker?

Is Earth experiencing a stronger greenhouse effect? What's the evidence?

Most scientists claim that the increasing concentration of CO2 in the atmosphere is creating a stronger (or amplified) greenhouse effect leading to a warmer atmosphere. What data supports this claim? The graph pictured on the right brings three different data sets together to tell a more complete story about changes in atm CO2and global temperatures since the Industrial Revolution began. Click to enlarge the graph on the right and carefully examine each of its three data sets as described below:

  • Global long term temperature data 1880-2006 (Blue lines).
  • Ice core CO2 data from the Siple Dome in Antartica, 1880-1950 (Red lines)
  • Keeling Curve CO2 data taken at Mauna Loa 1958-2006 (Yellow lines)

  • There are three scales on this graph, so it is important to match the correct scale with its correct data set. The time in years is the bottom scale on the x-axis.
  • The scale on the left y-axis indicates the concentration of carbon dioxide in the atmosphere and is measured in parts per million per volume (ppmv). This is the same as ppm.
  • The scale on the right y-axis indicates the global temperature. Notice that the scale is in degrees Fahrenheit, not Celsius.


With a partner or a group, discuss the following and then share with the class.
  • What trends do you see in these three data sets?
  • What "story" does this graph tell you about the relationship between CO2 and temperature since the 1800's?
  • What trends in atm CO2 and temperature have you observed thus far support or refute the claim that the greenhouse effect is amplifying? Explain why.

Stop and Think

1: Describe the overall trend in atmospheric CO2 and temperature since the 1880's.

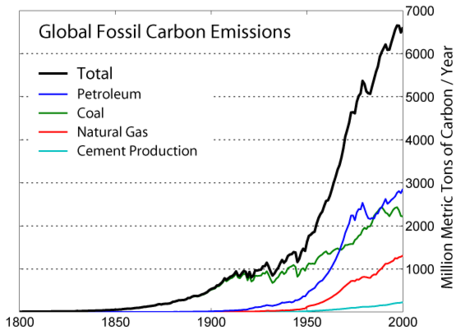

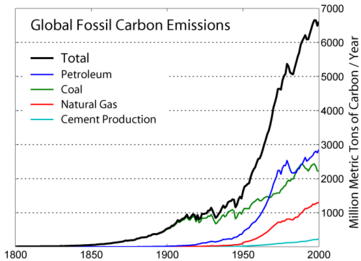

2: Based on the current scientific data, what is causing the increases in atmospheric CO2? Describe one piece of evidence that supports your claim.
