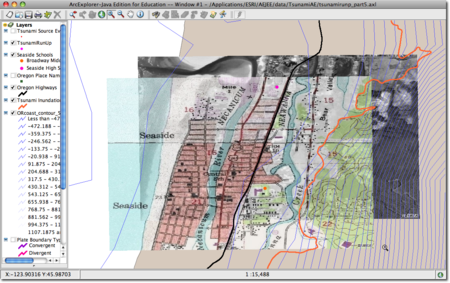

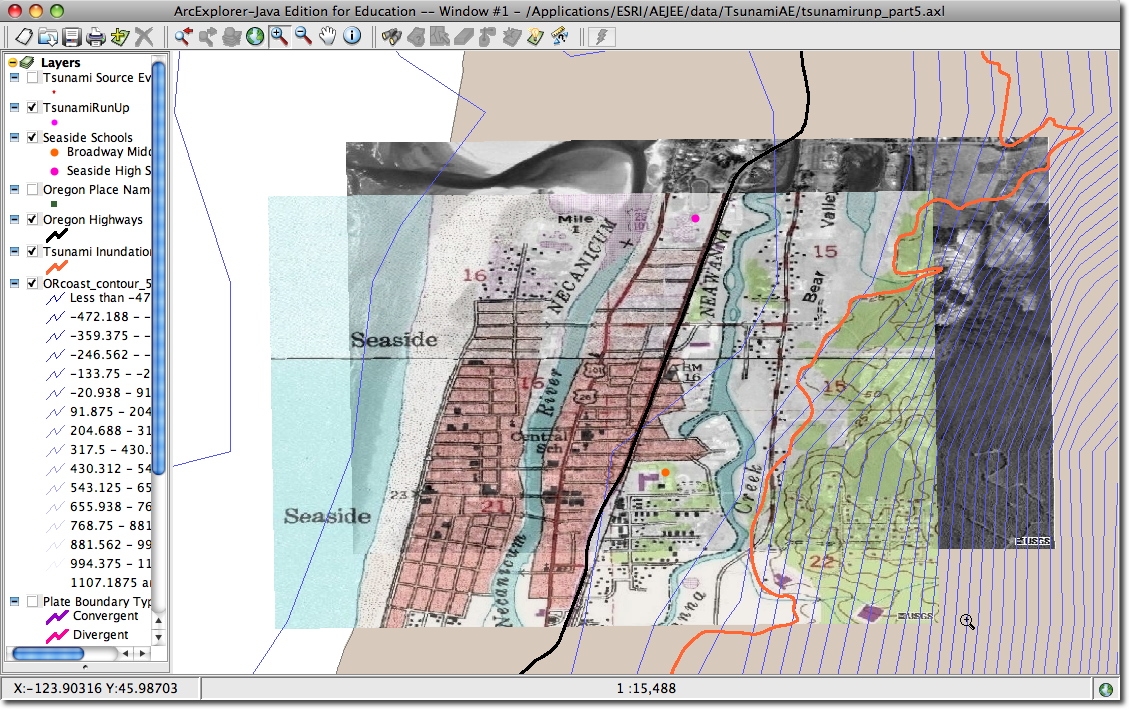

Screen capture from AEJEE software showing Oregon coastal data. Click on image for a larger view.
This chapter is most appropriate for grades 7-16.
Learning GoalsAfter completing this chapter, students will be able to:
- navigate, extract and download data from GeOnAS DEM Explorer;
- use geospatial data to investigate coastal topography;
- use AEJEE for predicting sea-level rise during a potential tsunami event; and
- conduct spatial analyses in order to generate a evacuation management plan.
Shuttle Radar Topography Mission (SRTM) digital elevation model (DEM) data has been widely available for many years, but mostly to advanced Geographic Information System (GIS) users. The GeOnAS DEM Explorer tool allows the novice GIS user to extract, view, and process DEM data without needing the sophisticated knowledge of advanced GIS software. The tool also allows the user to export extracted data for visualization in other GIS software. AEJEE is a free and widely available Earth visualization tool that will allow the user to examine the potential run-up of a tsunami. The combination of these GIS tools and data allows for the data analysis necessary for informed decision-making. This chapter provides students with the knowledge and skills for conducting a similar analysis at their own locale.
A student could easily adapt this project for her/his own "backyard" use. Suggestions for adaptation and modification of this chapter are in the Going Further section.
Tsunamis are ocean waves that are usually the result of an earthquake, landslide, or volcanic eruption. These occurrences most often initiate underwater, but can also happen near the coast. Tsunami originates from the Japanese, literally translated as "Harbor Wave." Tsunamis are not "tidal" waves or related to typical wave action and schedules of low or high tide; they also are not storm related. Although tsunamis are most frequently reported or identified in oceanic regions, they can also occur in large lakes. For purposes of this lesson, the focus will be on oceanic tsunamis.
Changes in Earth's crust, along subduction zones, are primarily responsible for the earthquakes that spawn tsunamis. By analyzing subduction zones and historical data of earthquakes and tsunamis, scientists are able to identify areas worldwide that are more susceptible to tsunamis.
Two main types of tsunamis exist: teletsunamis (far-field tsunamis) and local tsunamis. Earthquakes typically cause both types but differ in their far-field or localized effects (local tsunamis are much more difficult to detect and flee from). Tsunamis can also range dramatically in height. They can be as small as one centimeter to as large as 150 meters. Mini-tsunamis can often only be measured by scientific equipment while mega-tsunamis are likely to cause significant damage and present danger in coastal areas that are densely inhabited.
Tsunamis have recently become more highly publicized, understood, and prepared for, after the devastating mega-tsunami in December 2004 that caused massive loss of life in Indonesia, Sri Lanka, India, and Thailand. Historically, however, tsunamis have been observed in most coastal areas of Earth. National Oceanic and Atmospheric Administration's National Geophysical Data Center (NGDC) maintains a database that contains documented tsunamis since 2000 B.C. In the United States, NOAA has observed and recorded numerous tsunamis on its U.S. coast since the early 1800's.
Over the past century, tsunami-preparedness has rapidly changed, as scientists are now able to use historic data, plate tectonic information, and Geographic Information Systems (GIS) to determine which coastal areas are at risk of major damage from tsunamis. Tsunami-watch systems are now in place in many areas of the world, relying on seismic data and ocean sensing equipment. Countries like Indonesia, and others in the "Ring of Fire," are at greater risk due to the numerous earthquakes in that area. This, combined with the low-lying geography of that area, creates the potential for significant damage.
In this chapter, students will use digital elevation model (DEM) data loaded into AEJEE to generate potential sea-level rise scenarios that might occur during a tsunami run-up event. The DEM contour data will be overlaid with political and geographic data, allowing the user to see the potential impact on transportation infrastructure, housing, and natural habitat. The student's task in this chapter is to identify the potential for a five, fifteen, and twenty-meter rise in the ocean due to a tsunami on the Oregon coast near Seaside.
