Teaching Notes

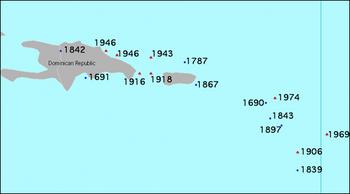

Here is one example of a map that can be produced after completing the chapter's step-by-step instructions. The map shows the years and locations of earthquakes with a magnitude of 7.0 or greater. Earthquakes in red have taken place in the last 100 years.

This chapter is most appropriate for students in grades 8-10. Students in grades 7 through 14 could use the chapter to learn to basic GIS techniques, such as conducting thematic and spatial queries.

• format data in preparation for GIS analyses
• map and analyze geospatial information
• interpret the results of GIS analyses to make predictions about where earthquakes will occur

*Note: It is not necessary for students to download the earthquake data themselves in order to carry out analyses about earthquake prediction. Some other options include the following:

• The data can be downloaded from the USGS and formated as a .csv file ahead of time, so that students can just import the data into a GIS, querying it to look for geographic patterns.
• The data can be downloaded ahead of time, but students can be given the opportunity to format it before importing it into a GIS for analysis.

This chapter requires the use of GIS software that must be downloaded and installed. ArcExplorer Java Edition for Education (AEJEE) GIS from ESRI, is a freely available GIS that can be used by educators at no cost . While it has a lot of functionality, it does not have all the capabilities that exist in ArcView GIS. Please see the About the Tool and Data section for more information about this tool. Many schools already have site licenses for ArcView GIS software. Check with your instructional technology support team to find out if your school does or to obtain help with installing AEJEE GIS onto school computers.

Currently, it is not possible to accurately predict earthquakes in a timely fashion. It is a goal of this chapter that students discover this, as well as understand that earthquake risk varies across the Earth. Because earthquake activity is associated with plate boundaries, some places on Earth have a greater likelihood of experiencing earthquakes than do other locales. Four major concepts of this chapter are:

1. The risk of earthquakes striking any location varies on Earth. Proximity to plate boundaries is a major factor in determining risk.
2. The largest earthquakes happen at convergent plate boundaries.
3. Earth scientists study historical earthquake distributions and frequencies to come up with long-range forecasts that indicate the likelihood of earthquakes striking certain regions.
4. Although, accurate prediction of earthquakes is not yet possible, research continues in this area.

Scientists at the USGS describe earthquakes by their magnitude. By analyzing a year's worth of earthquake data, students come to realize that there are many more of the very small earthquakes than there are of the really big ones.

For more information and statistics about earthquakes, visit these pages at the USGS
Earthquake Facts and Statistics
2006 Earthquake Statistics
Information on Significant Worldwide Earthquakes by Year

Examples of datasets that can be investigated with the techniques of this chapter include: earthquake activity, stream flow conditions, global land and sea surface temperatures, and many other datasets with latitude and longitude coordinates, such as those gathered with a GPS.

Many datasets of interest to Earth scientists are posted on the Internet in tabular format with varying delimiters used to separate the fields. If a dataset contains latitude and longitude fields, then it can be mapped and analyzed with a GIS. Prior to bringing the data into a GIS, it may need to be prepared in a "GIS-ready" format. Depending upon the GIS software that is used, this can mean creating a Comma Separated Values(.csv) file from the original dataset. This chapter describes the technique of preparing "GIS-ready" data as well as shows how to map and conduct basic analyses using a GIS.

Grades 5-8

• Use appropriate tools and techniques to gather, analyze, and interpret data.
Show remainder of standard 8ASI1.3
Hide
The use of tools and techniques, including mathematics, will be guided by the question asked and the investigations students design. The use of computers for the collection, summary, and display of evidence is part of this standard. Students should be able to access, gather, store, retrieve, and organize data, using hardware and software designed for these purposes.
• Develop descriptions, explanations, predictions, and models using evidence.
Show remainder of standard 8ASI1.4
Hide
Students should base their explanation on what they observed, and as they develop cognitive skills, they should be able to differentiate explanation from description - providing causes for effects and establishing relationships based on evidence and logical argument. This standards requires a subject knowledge base so the students can effectively conduct investigations, because developing explanations establishes connections between the content of science and the contexts within which students develop new knowledge.
• Lithospheric plates on the scales of continents and oceans constantly move at rates of centimeters per year in response to movements in the mantle.
  Show remainder of standard 8DESS1.2
  Hide

  Major geological events, such as earthquakes, volcanic eruptions, and mountain building, result from these plate motions.
• The earth processes we see today, including erosion, movement of lithospheric plates, and changes in atmospheric composition, are similar to those that occurred in the past.
  Show remainder of standard 8DESS2.1
  Hide

  Earth history is also influenced by occasional catastrophes, such as the impact of an asteroid or comet.

Grades 9-12

• Use technology and mathematics to improve investigations and communications.
  Show remainder of standard 12ASI1.3
  Hide

  A variety of technologies, such as hand tools, measuring instruments, and calculators, should be an integral component of scientific investigations. The use of computers for the collection, analysis, and display of data is also a part of this standard. Mathematics plays an essential role in all aspects of an inquiry. For example, measurement is used for posing questions, formulas are used for developing explanations, and charts and graphs are used for communicating results.
• Formulate and revise scientific explanations and models using logic and evidence.
  Show remainder of standard 12ASI1.4
  Hide

  Student inquiries should culminate in formulating an explanation or model. Models should be physical, conceptual, and mathematical. In the process of answering the questions, the students should engage in discussions and arguments that result in the revision of their explanations. These discussions should be based on scientific knowledge, the use of logic, and evidence from their investigation.
• Natural and human induced hazards present the need for humans to assess potential danger and risk.
  Show remainder of standard 12FSPSP5.4
  Hide

  Many changes in the environment designed by humans bring benefits to society, as well as cause risks. Students should understand the costs and tradeoffs of various hazards - ranging from those with minor risk to a few people to major catastrophes with major risk to many people. The scale of events and the accuracy with which scientists and engineers can (and cannot) predict events are important considerations.

• How to use maps and other geographic representations, tools, and technologies to acquire, process, and report information from a spatial perspective
• How to analyze the spatial organization of people, places, and environments on earth's surface
• How to apply geography to interpret the past.
• How to apply geography to interpret the present and plan for the future.

Three 45 minute sessions: The number of classroom sessions needed for this chapter is flexible, and depends on how much preparation is done ahead of time and on how much of the process students take on.

• Downloading and formatting the data takes approximately 45 minutes.
• Importing the data and analyzing it with a GIS takes approximately 45 minutes.
• Interpreting results and preparing a report or presentation takes approximately 45 minutes.

Assessment Strategy
This chapter culminates with students producing a report and/or preparing a presentation explaining their Top Ten list and the place on Earth that they predict the next big earthquake will strike. Consider evaluating their products using a rubric with separate scales for 1) accuracy of science content, 2) appropriateness of supporting maps and frequency analyses, 3) clarity of ideas, and 4) persuasiveness of the location of the Next Big One.
