Part 2—Launch My World GIS and Import Data From File

Step 1 Launch My World and Open the Urban Heat Island Project File

My World Icon
  1. Launch My World GIS by double-clicking its icon on your desktop or by clicking its icon in the dock (Mac) or Launch Bar (PC).
  2. Choose File > Open Project and navigate to the file, Urban_Heat_Island.m3vz. Select it and then click Open.
    1. Launch My World GIS. A blank map appears.
      1 My World Opens
    2. Choose File > Open Project.
      2 File Open Project
    3. Navigate to the file, Urban_Heat_Island.m3vz.
      3 Projects Folder

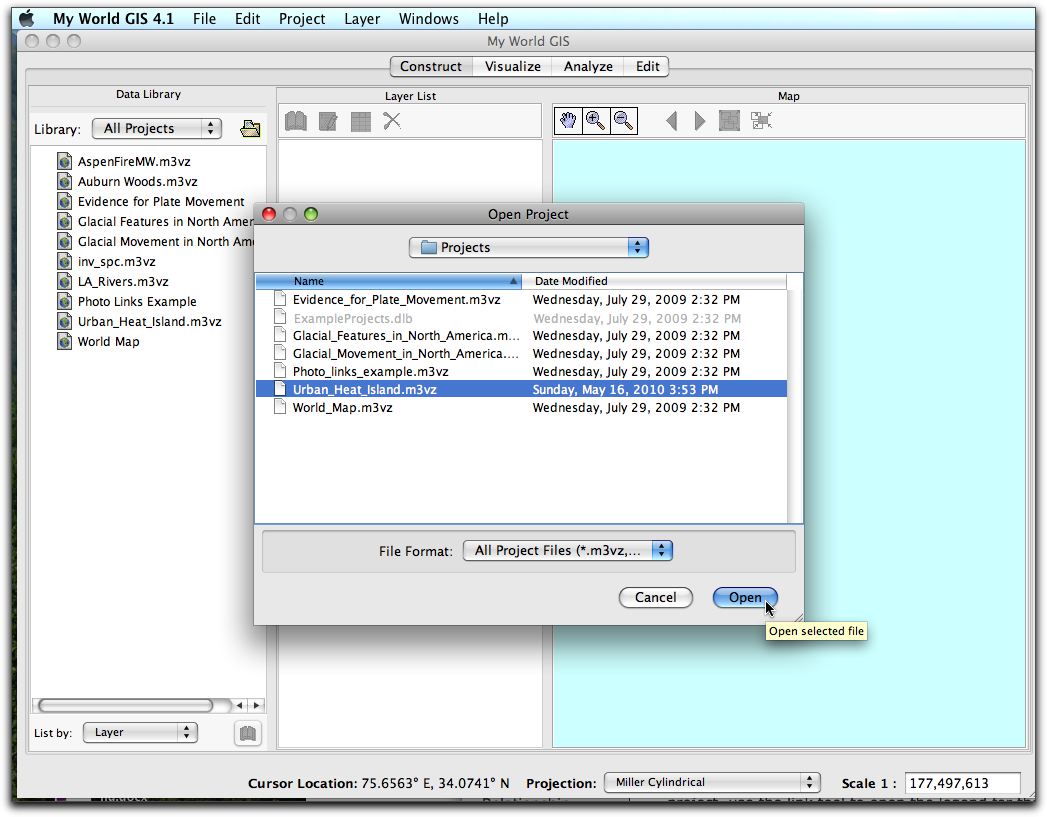

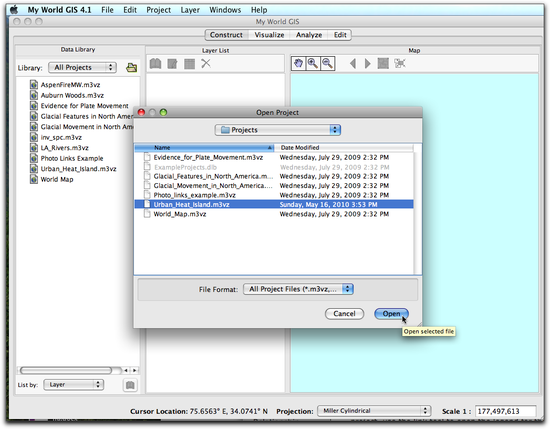

    4. Select the file, Urban_Heat_Island.m3vz. Then click Open.
      4 Select Urban Heat


    When the project opens, a world map displays. It shows average land surface temperature for the month of December 2008 with outlines of Countries and U.S. States overlaid on top. Layers not visible on the map include U.S. Counties, U.S. Cities, and U.S. Cities with a population greater than 50,000 people.


Step 2 Get a Sense of Global Temperature Patterns

The MODIS image is of average land surface temperature for the month of December 2008. Use the Link tool to open the legend for the image (which is displayed here to the right). NEO legend
  1. Select the Link tool and click and hold on the small flag in the lower left corner of the map window. Click on the text "Project: land surface scale.png" to open the legend for the image. In the legend, the color scale indicates that the warmest temperature recorded by the MODIS satellite was 45 degrees C (about 110 degrees F). The coldest temperature that is shown is -25 degrees C.

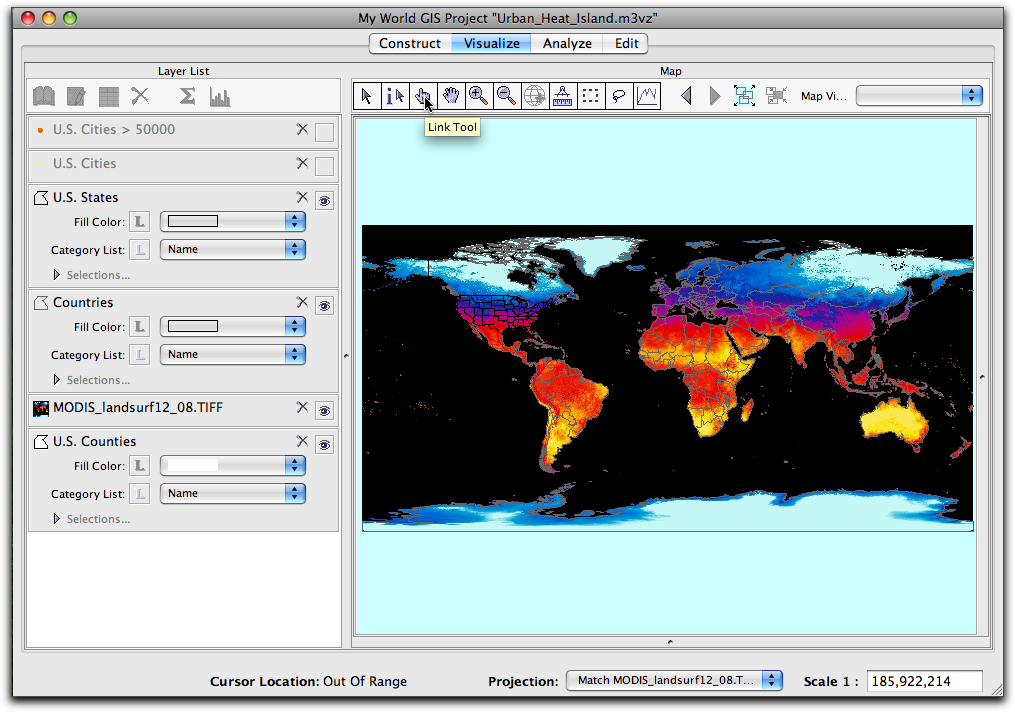

    1. Click on the Link tool.
      6 click link tool

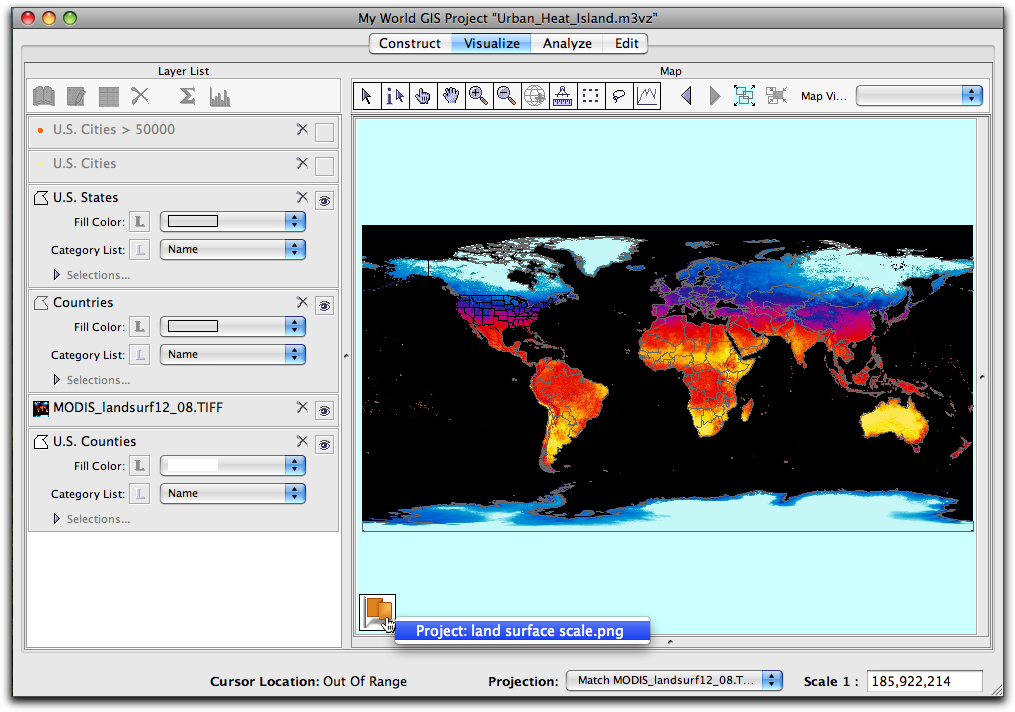

    2. Click on the small flag in the lower left corner of the map window and click on the text "Project: land surface scale.png" to open the legend for the image.
      7 open project file

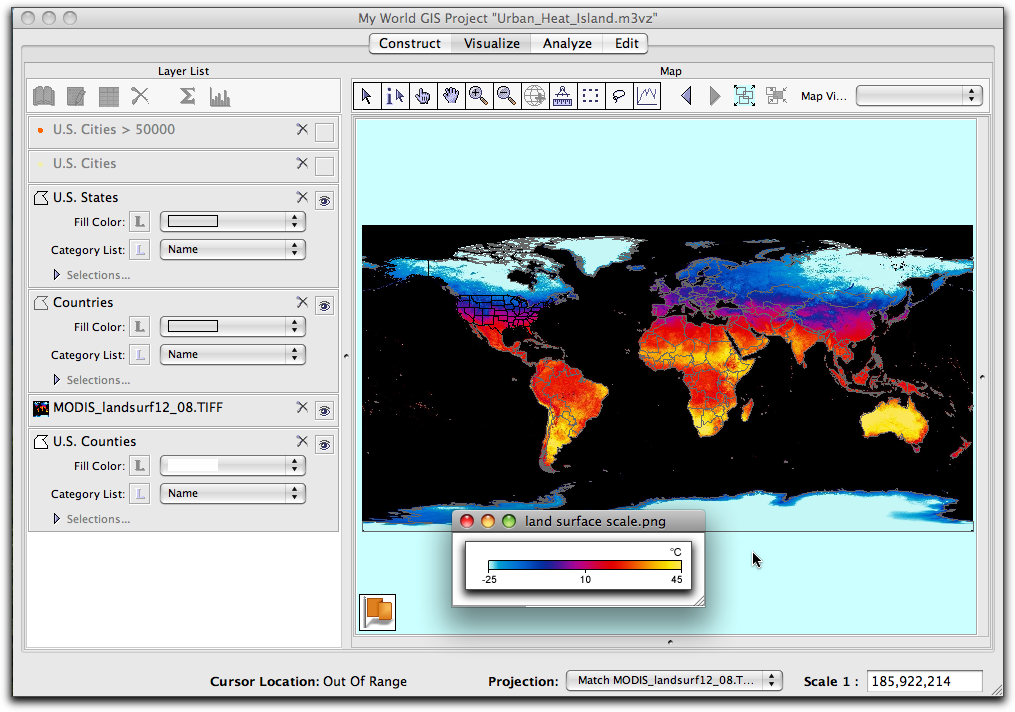

    3. This is what the map looks like with the legend showing.
      8 legend on map

  2. Close the legend window when you are done.

Step 3 Practice Moving Around on the Map

Practice Zooming In and Out

  1. Select the Zoom In tool. Your cursor will now look like a magnifying glass with a plus in it.
  2. Click once on South America with the Zoom In tool.

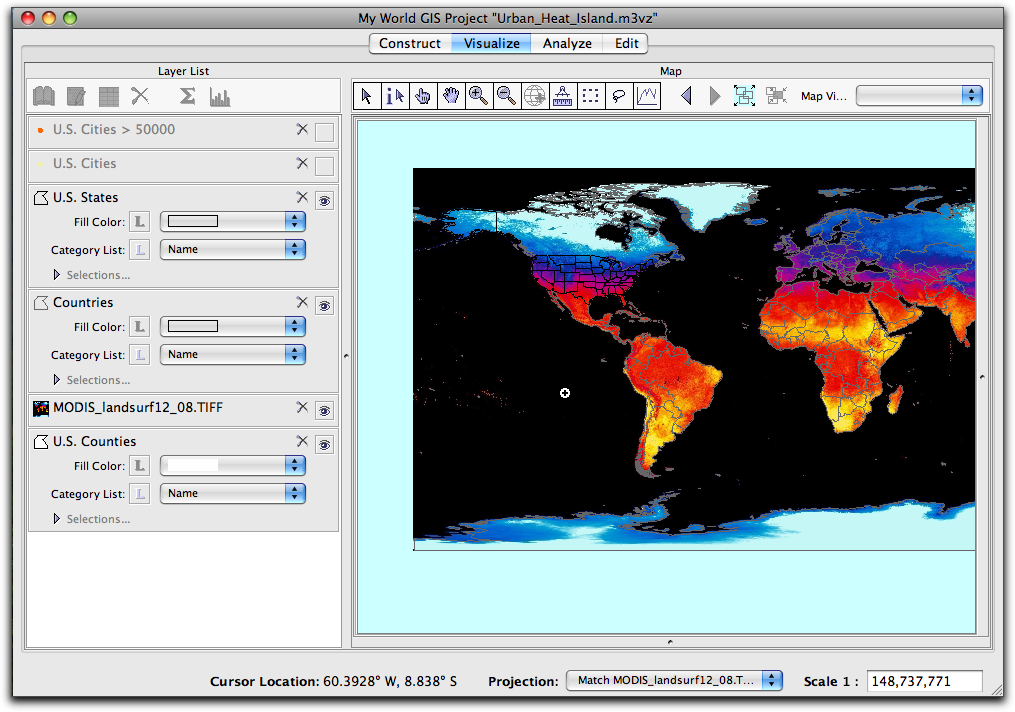

  3. The map is centered on South America after one click with the Zoom In tool.
    10 click on South America
  4. Click once on the Zoom to All tool to take the map all the way back out to a full view.
    NOTE: This is a nice trick if you get lost and just want to start over again.
  5. This view shows the map zoomed back to the full extent.
    5 Opening map UHI
  6. Continue clicking on the map with the Zoom In tool. The tool automatically centers the zoom level on the area where you click. How far can you zoom in?

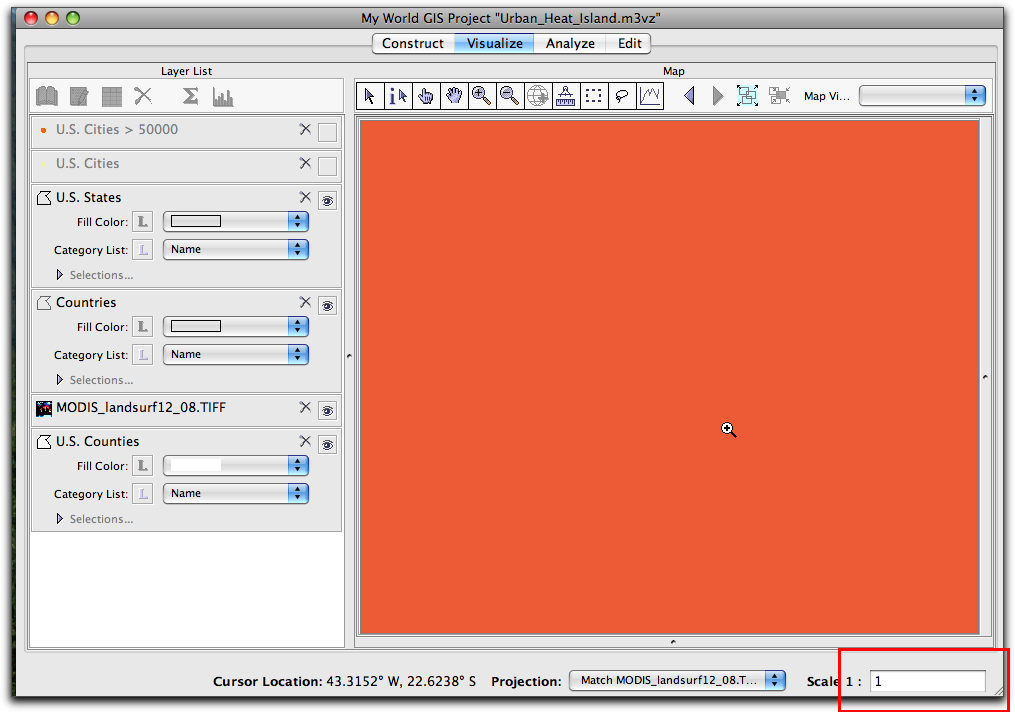

  7. The map is zoomed in all the way. Notice the 1:1 numbers circled at the bottom. They show the scale of the map.
    11 zoomed all the way in

    As you zoom closer and closer on the image, you eventually see "pixels", or squares, of image data. However, most GIS data are vector-based, allowing you to continue to zoom in nearly infinitely.

  8. Click the Zoom Out tool several times. Keep clicking. How far can you zoom out?

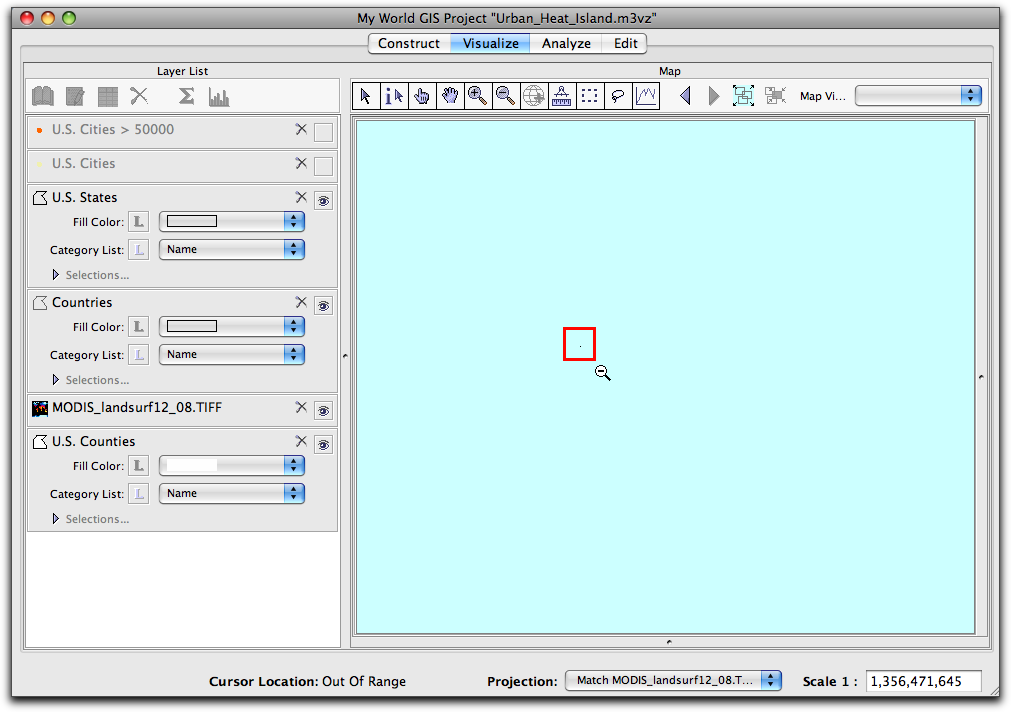

  9. Here is an example of the map zoomed all the way out. Notice that the map is now a small black speck. If you have difficulty seeing the black speck, click on the image below to view a larger version.
    12 zoomed all the way out
  10. When you are done exploring zooming, click the Zoom to All tool.
  11. Click and drag out a rectangle across Africa with the Zoom In tool. Notice how this allows for more precise zooming.

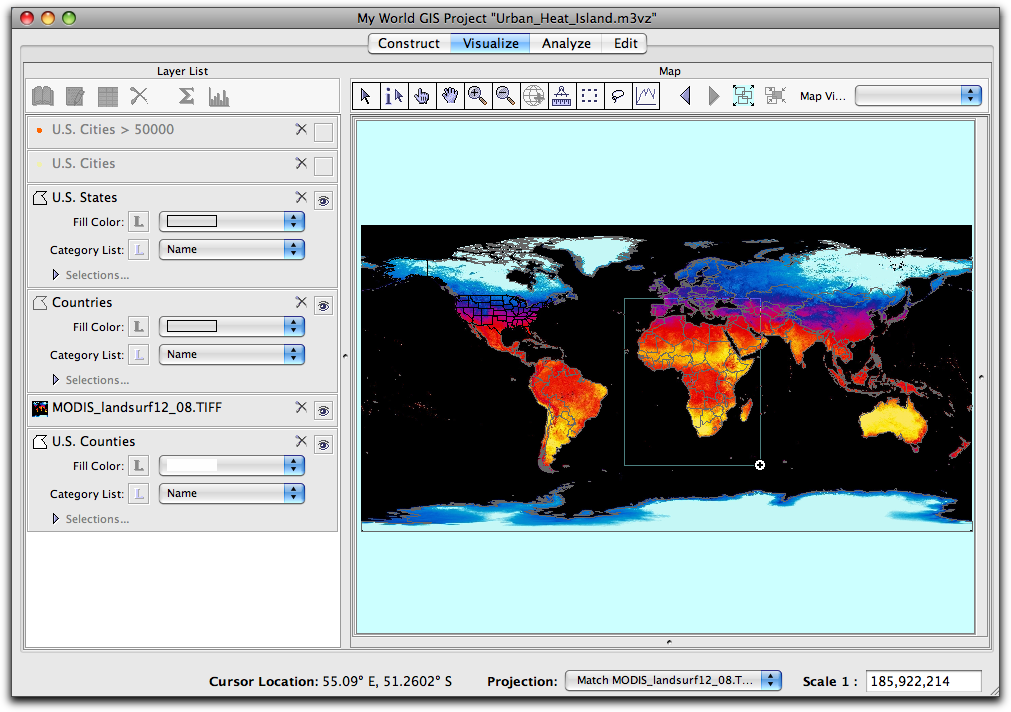

    1. Click and drag a box around Africa.
      13 zoomed around africa

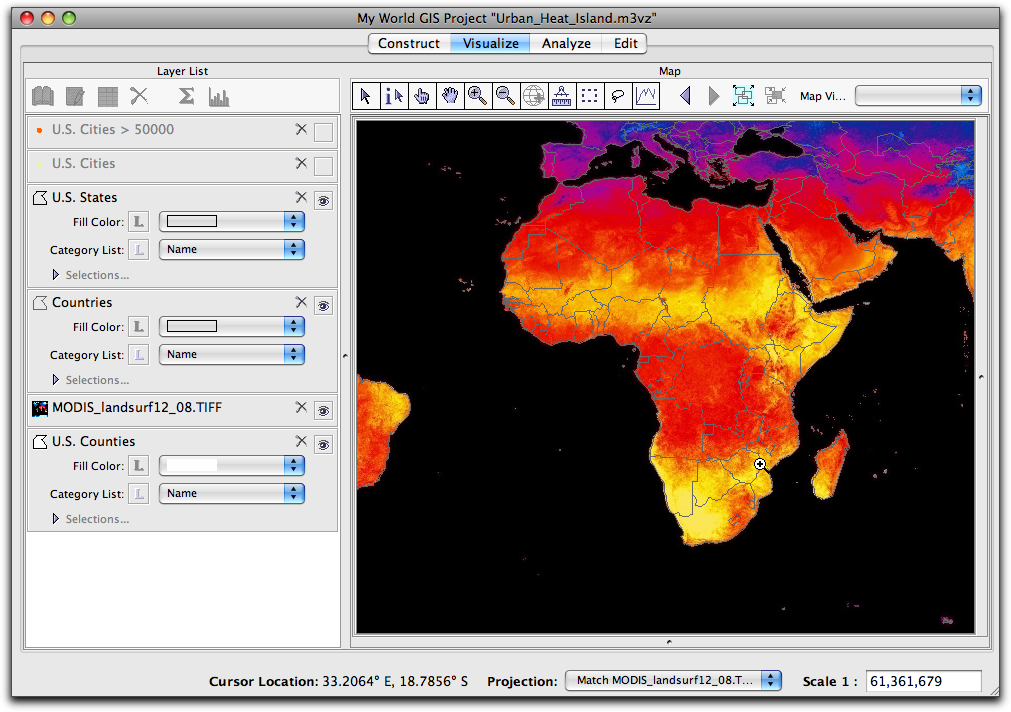

    2. After zooming, the map shows Africa in the center.
      14 zoomed around Africa results

  12. Click the Zoom to All tool to return to the full map view.
  13. Two other buttons help you navigate on screen. They are the Zoom to Previous Extents Zoom to Previous and Zoom to Next Extents zom to next buttons. Try zooming in and then experimenting with these buttons. The Zoom to Previous Extents button lets you go back to a previous level of focus. Both of these buttons give you unlimited zooms back and forth between levels.

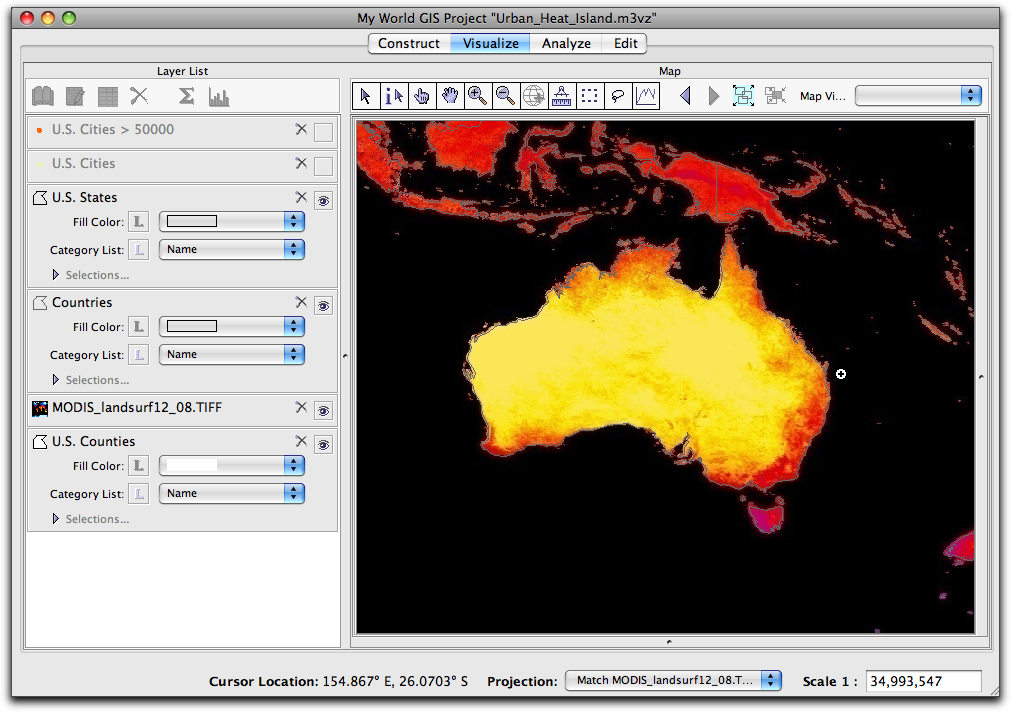

    1. Zoom in around Australia.
      15 zoomed around Australia

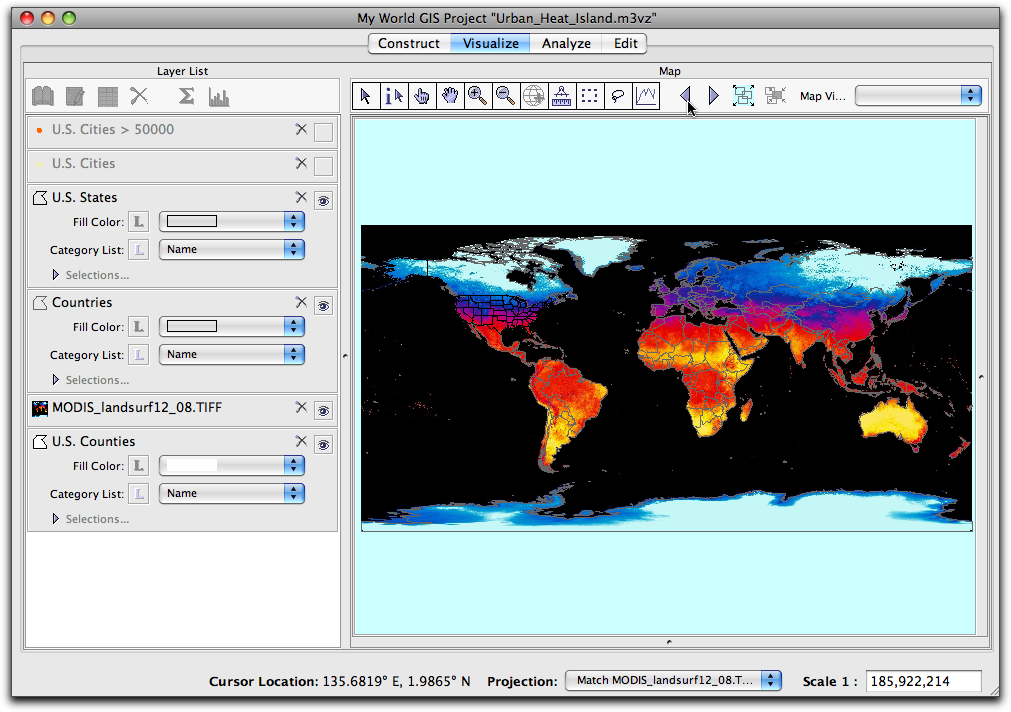

    2. Return to previous extent.
      16 Zoomed to previous
    3. And back again.
      15 zoomed around Australia

  14. When you are zoomed in, you can use the Move Map tool pan tool tool to adjust your view. Click and hold the Move Map tool and drag your mouse to center your map on another place.

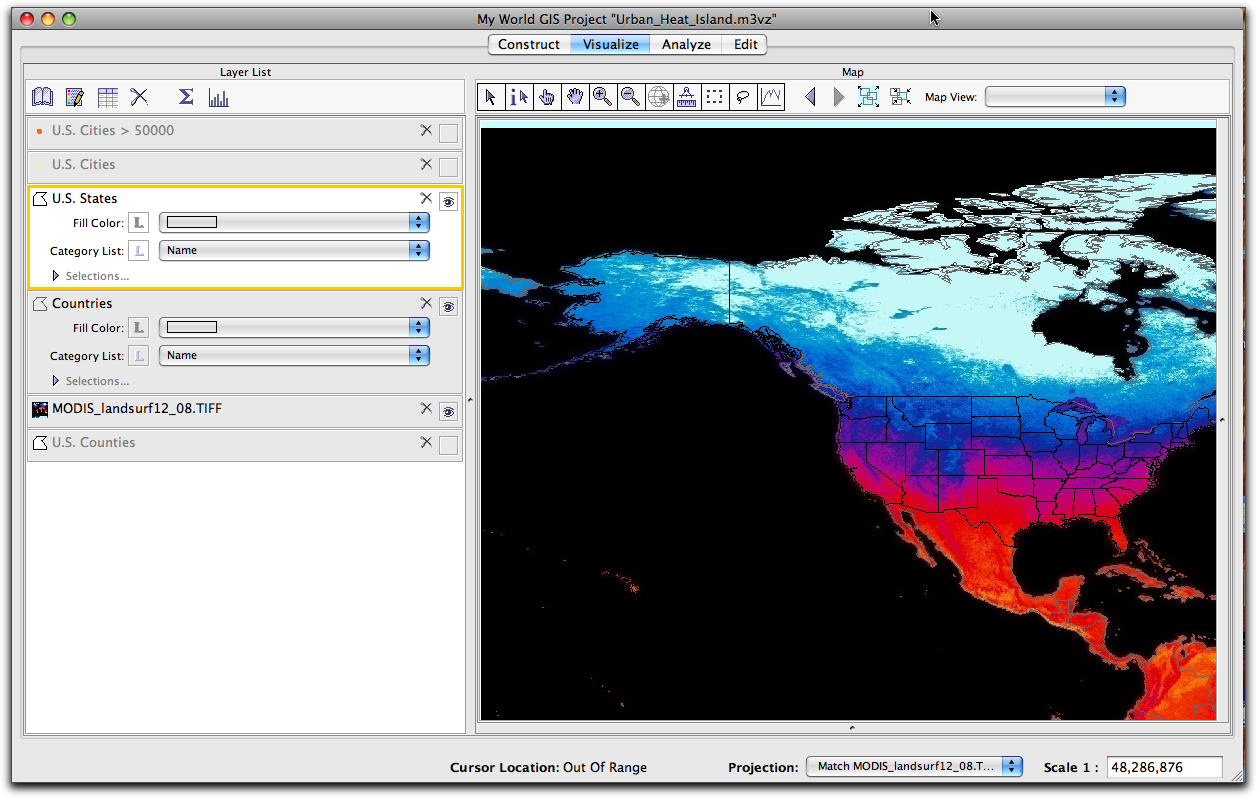

  15. When you are done exploring zooming, zoom to North America and use the move map tool to center the map on the United States.

Explore Turning Layers On and Off and Making Them Active.


To the left of the map view is a listing of Layers, called the Layer List. In the Layer List, notice the check box to the right of the name of a layer. Click once in this box to turn a layer on and make it visible. Notice that when a layer is on, there is an eye in the check box.
  1. Turn on U.S. Cities by clicking in the box next to its name. Layers that are on have an Eye eye check in the check box.
  2. Turn on the Cities > 50000 layer.
  3. Notice that as you turn on a layer there is a legend for that Layer. To turn a legend on and off, click on the L symbol next to the words "Category List".

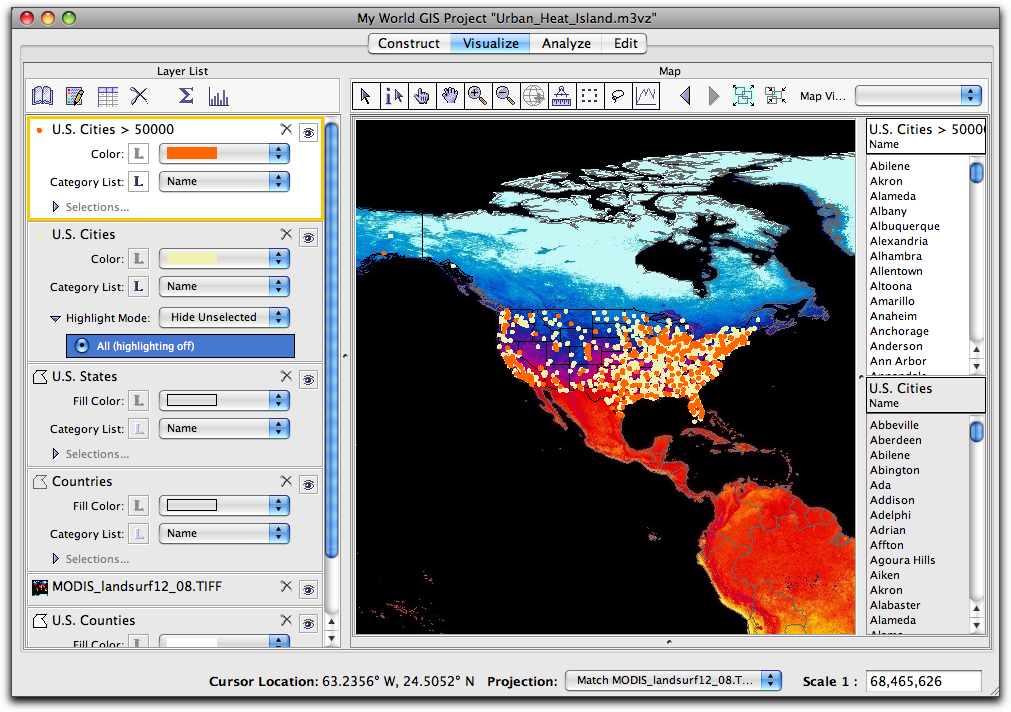

  4. Click anywhere in the box next to the name of a layer. The box will turn white and have a yellow highlight. This indicates that this layer is the Active layer. In the image below, U.S. Cities > 50000 layer is the active layer.
    19 US Cities > 50,000

  5. Make Countries active and click the Zoom to Active layer zoom to active layer button. Your map will zoom out to the extent of this layer.
  6. Click on the Zoom to Previous Extents button Zoom to Previous to recenter your map on North America.
When you click on the name of a layer, it is highlighted and becomes active, which tells My World GIS to pay attention to it. Understanding the difference between a layer that is turned on and one that is active can save you time and help prevent frustration. A layer may be on or off as well as active or not. Layers that are on have a checked box while layers that are active are highlighted white with a yellow border. More than one layer can be on but only one layer can be active.

Explore Moving Layers in the Layer List

Look again at the map and the Layer List. Notice that the U.S. Counties layer is on (checked) but not visible. Why might this be?
  1. In the Layer List, select the U.S. Counties layer by clicking and holding its name. Drag the U.S. Counties layer up the list and place it between the Countries and U.S. States layers.

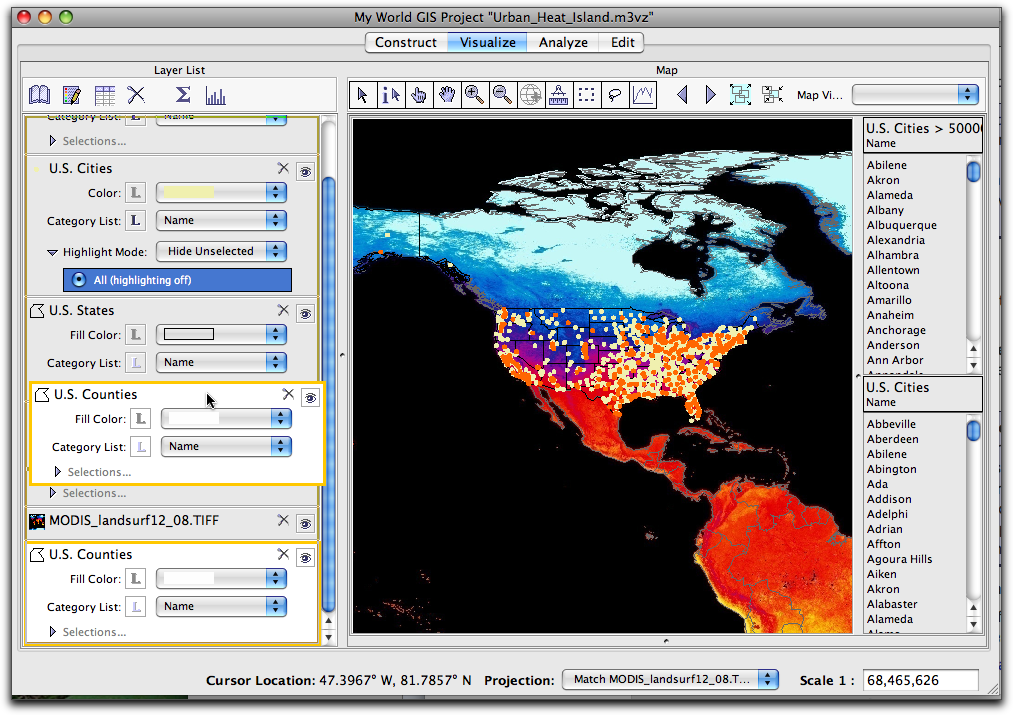

    1. Click and hold on the U.S. Counties layer in the Layer List.
      22 Dragging layer up list
    2. Drag it up the list. Place it between the Countries and U.S. States layers and release your cursor.
    3. U.S. Counties is now visible on top of the image and Countries. Before you did this, the other layers that were on top of it hid it from view.

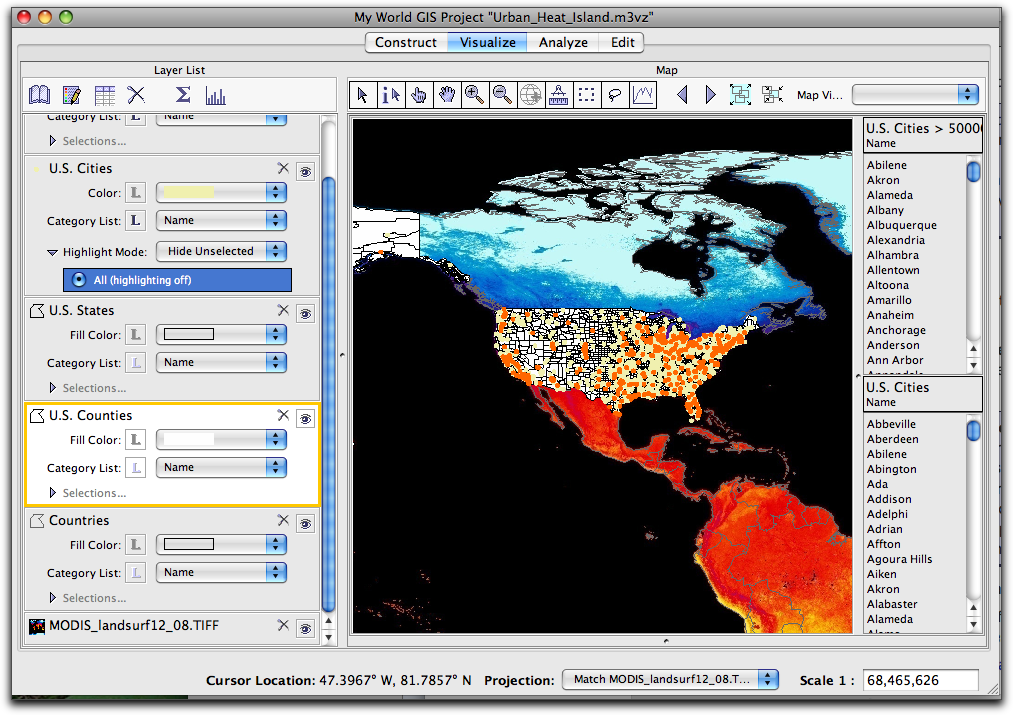

    4. This is what the map looks like with the U.S. Counties on top of Countries.
      23 Dragging layer up list results

  2. Each layer in a GIS builds the map. The data that make up the layers are shown as either points, lines, or polygons. These layers come from shapefiles, a standard GIS data format. (It is also possible to add images to a GIS as is shown here.) The layers are drawn from the bottom to the top as they appear in the Layer List. If not positioned properly, some layers may cover up others. In general, images and polygons should be placed at the bottom, while lines and points should be arranged near the top.
  3. Practice turning other layers on and off and moving them up and down in the layer list.
  4. When you are finished exploring, turn off (uncheck) the MODIS_landsurf_12_08.TIFF and Cities > 50000. Then turn on U.S. Cities and Zoom in to the U.S. States.
    At this point, it is easiest just to quit My World GIS and NOT save any changes. Then relaunch the program and reopen the project file. When the project opens again, all the data will be there.

Step 4 Import GLOBE Surface Temperature Data as a Layer

  1. Choose File > Import Layer from File and locate the .shp file in the un-zipped folder that you downloaded from the GLOBE website or else use the one at the end of Part 1. Single click to select the file, ATM_4bf04b80_014396b8.shp, and then click Open. (Note: if you use the file you downloaded, it will begin with ATM, but will have a different numerical sequence.)
  2. The Check Projection window asks if your data is in Latitude and Longitude which it is, so click OK. My World GIS imports the shape file, places it on the map and saves a copy in the My World "data" folder on your computer.
  3. The new data layer should now be visible on the map and in the Layer List. Make it the Active layer and click the Zoom to Active Layer zoom to active layer button in the toolbar.
  4. You will see that the layer includes data from a larger area than just the United States.

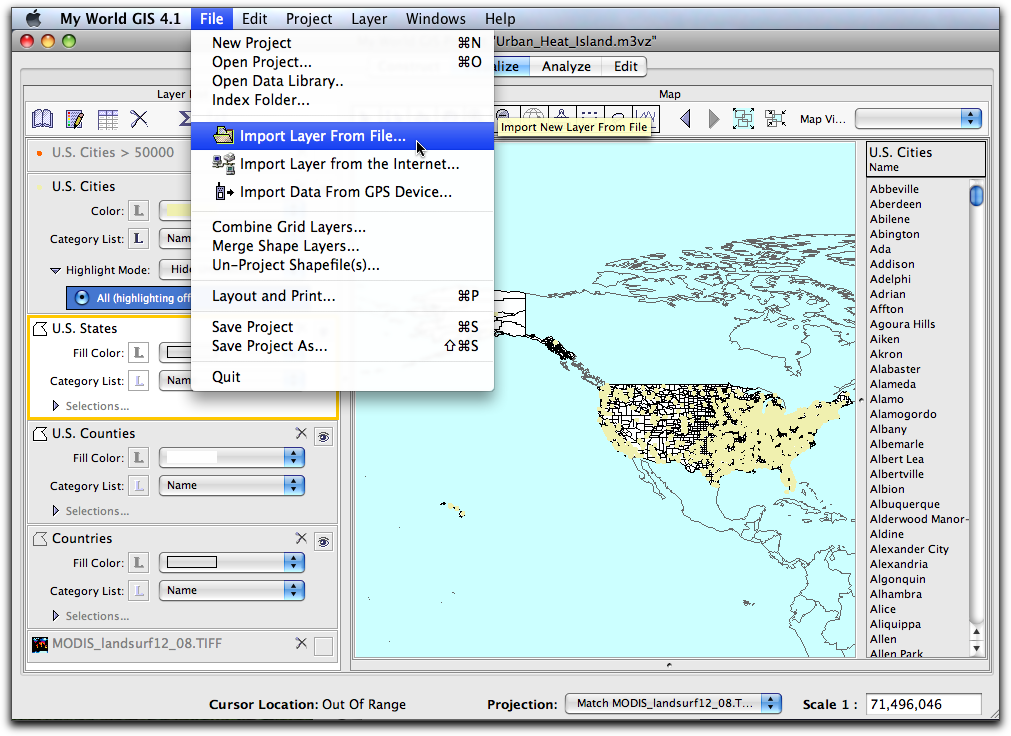

    1. Choose File > Import Layer from File..
      25 import layer from file

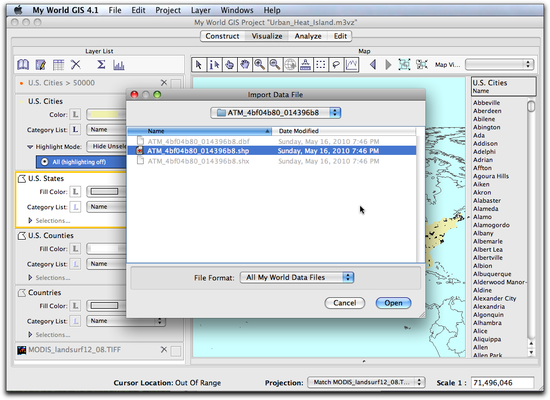

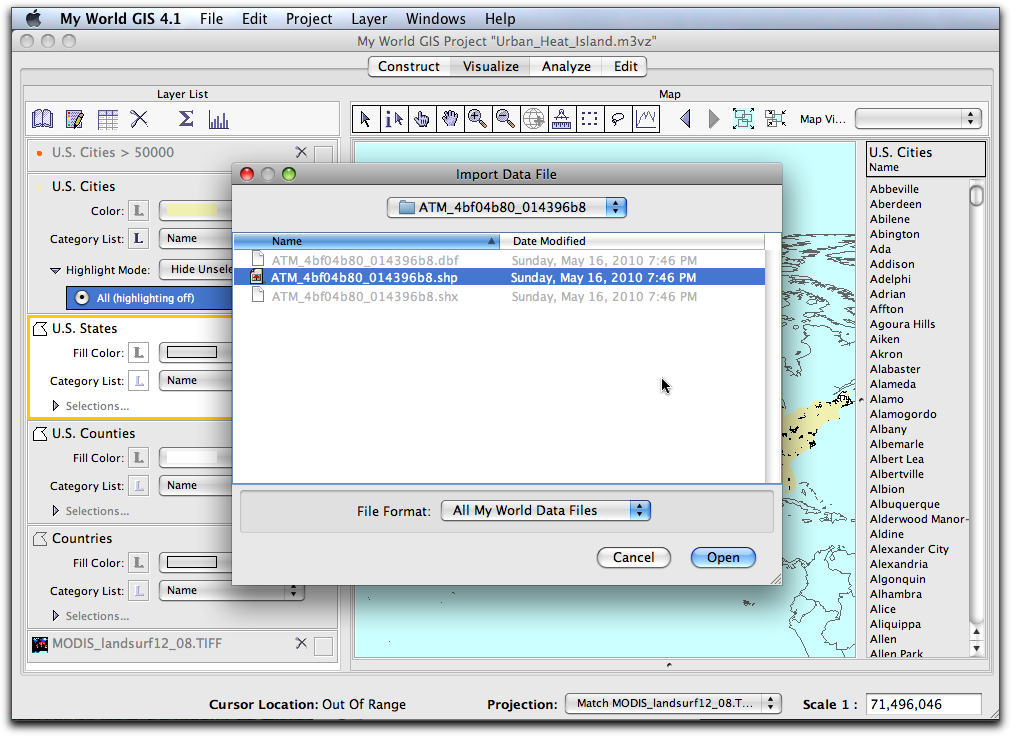

    2. Locate the .shp file in the unzipped folder you that downloaded from the GLOBE website. Single click to select the file, ATM_4bf04b80_014396b8.shp, and then click Open.
      27 import layer from file selected

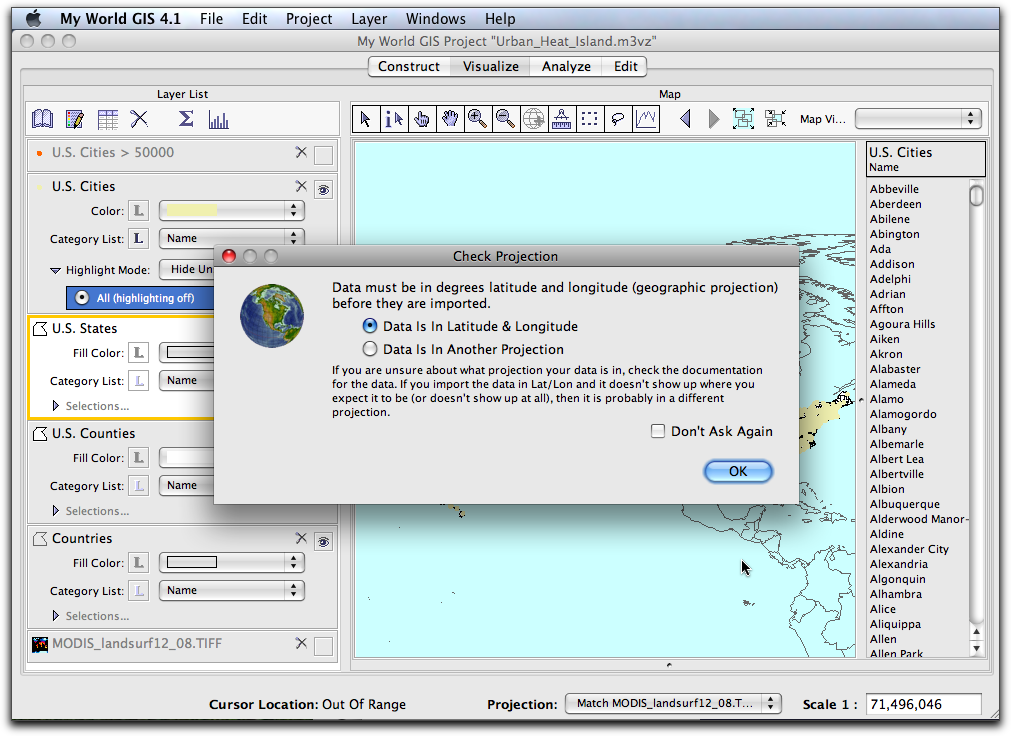

    3. The Check Projection window asks if your data is in Latitude and Longitude which it is, so click OK.
      28 Porjection check

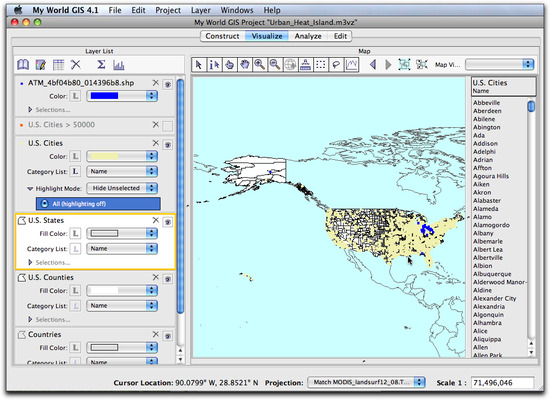

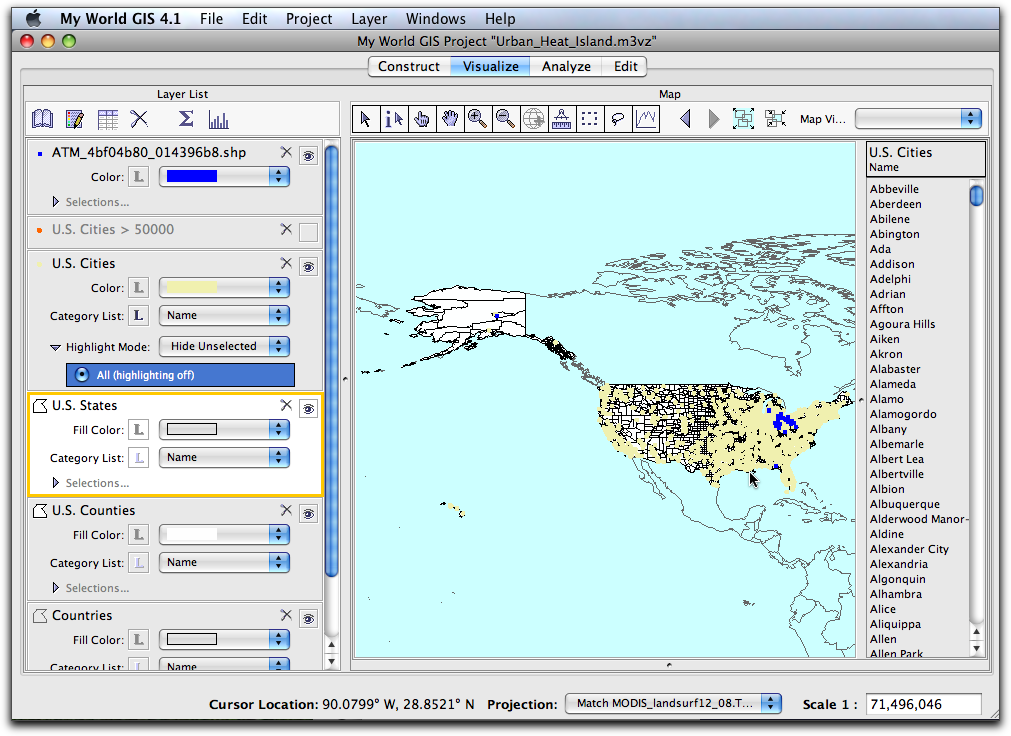

    The map now displays the GLOBE data in blue dots. (Note: your color may be different.)

    29 layer on map

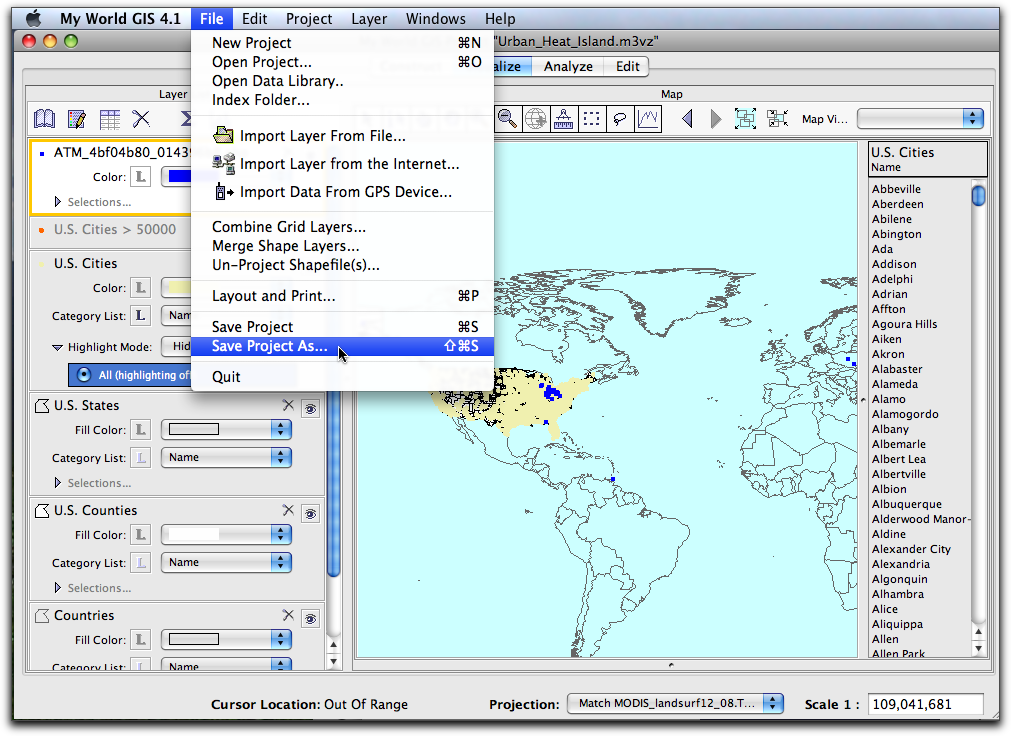

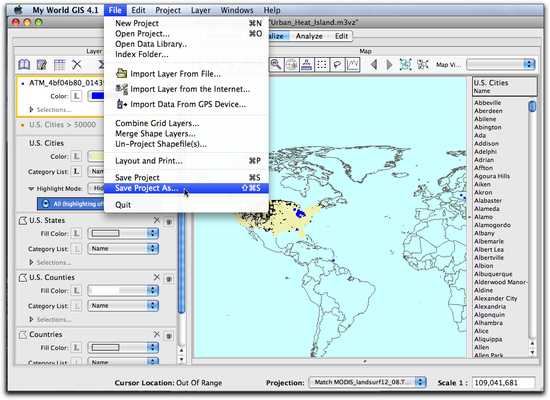

  5. Now that you have added the new data, choose File > Save Project As... and name your project Urban_Heat_Island_Part_2, or some other unique name. Then click the Save button.
  6. Quit My World GIS.
If you have trouble downloading data or saving the project file, then use this completed (and saved) project file.
Urban_Heat_Island_Part_2.m3vz ( 3.4MB Jun2 10)
Right-click (PC) or control-click (Mac) the link above to download the file.
