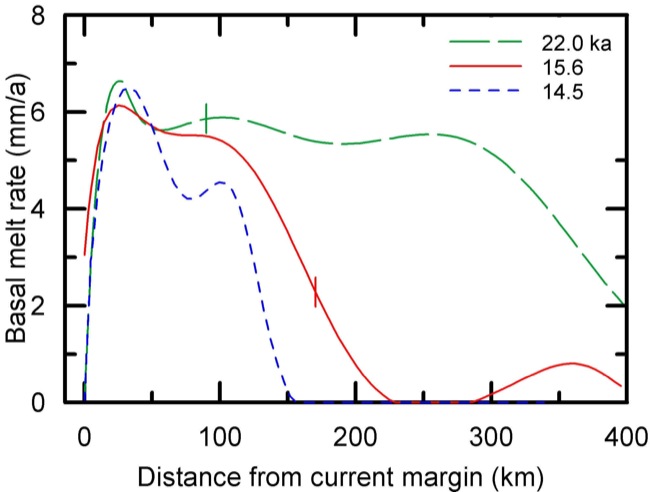

Figure 4. Basal melt rate at various times as a function of distance from margin. Tick marks show positions of equilibrium lines.
