Figure 1


View Original Image at Full Size

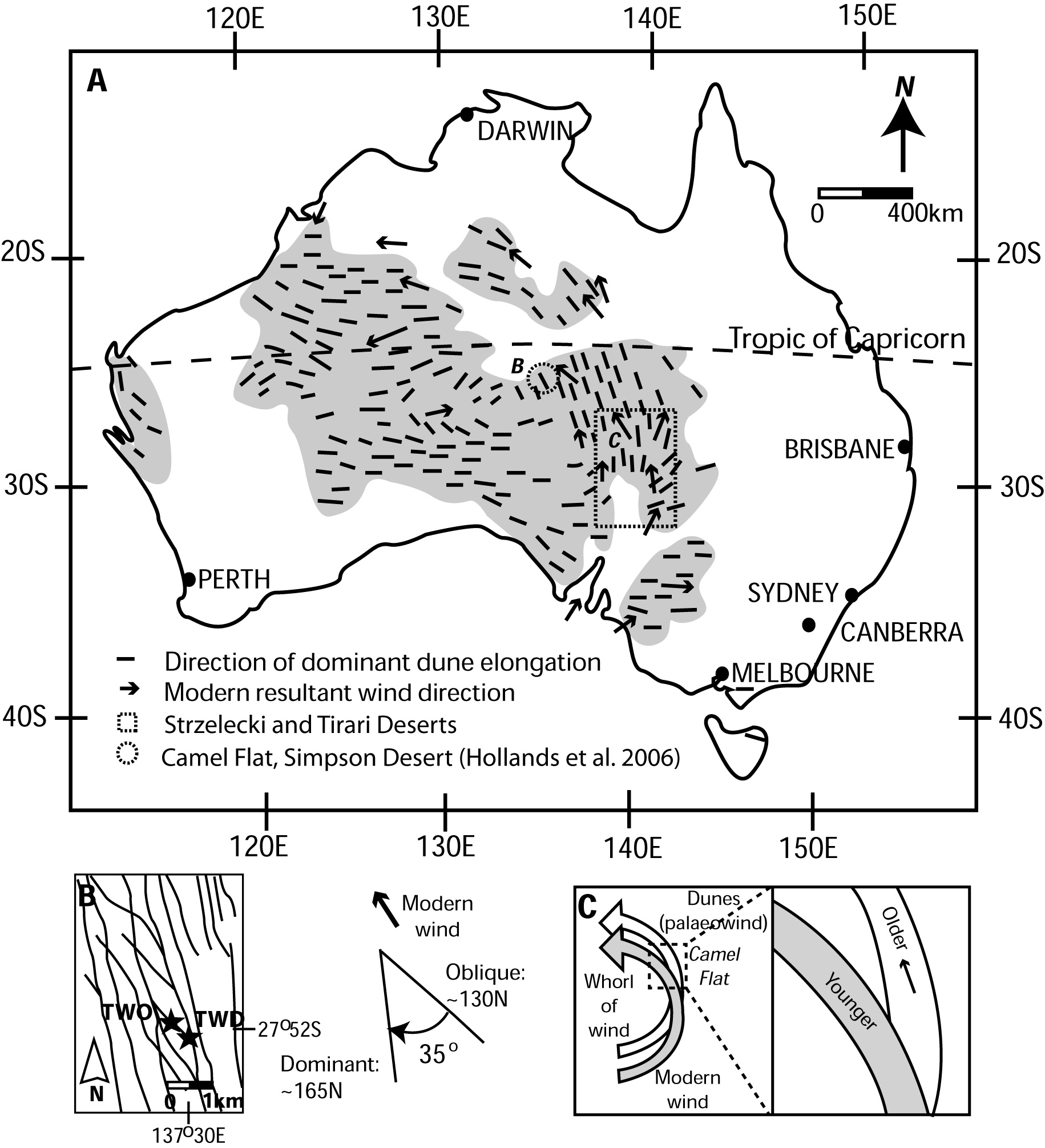

Figure 1 (A) Linear dune orientations and modern resultant wind directions in Australia, with (B) obliquely oriented dunes compared with the dominant trends and modern wind directions in the northern Tirari Desert. TWD is a dune in the dominant orientation which directly overlies the TWO obliquely oriented dune, and (C) the difference between dune/interpreted palaeowind trend and modern winds at Camel Flat in the Simpson Desert (adapted from Hollands et al., 2006).

Image 16948 is a 2011 by 1831 pixel JPEG
Uploaded: Sep11 09


Last Modified: 2009-09-11 02:05:19
The file is referred to in 1 page
Provenance
Kathryn Fitzsimmons
