Deltas and Plumes Visualizations
Compiled by Jen Millner at Montana State University
Find images showing geomorphological features resulting from the deposition of sediments into open water.
Click here to browse the complete set of Visualization Collections.
If you have a visualization that would be helpful for teaching about earth science, please contribute to our continually expanding collections.
This Landsat-7 false-color composite image shows sediment from the Ganges River as it flows through the Sunderbans, which refers the delta area, and into the Bay of Bengal.
This MODIS satellite image shows sediment plumes from the main branch of the Mississippi River as they move through the bayou region and into the Gulf of Mexico.

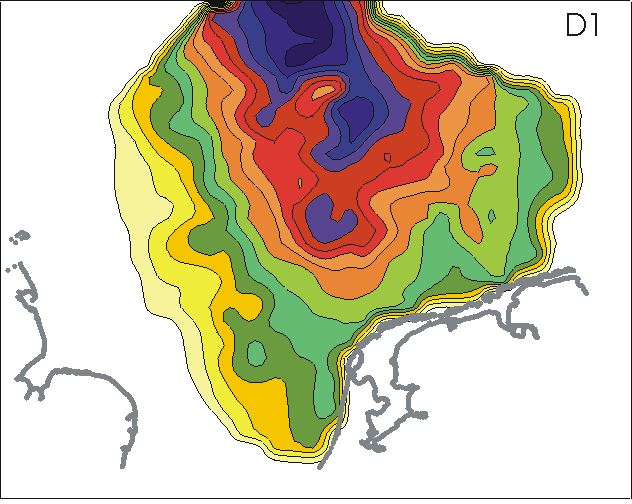

This animation from INSTARR is based on seismographic interpretation of Neogene basin fill of the North Sea. It shows the seaward migration of the Eridanos Delta over nine million years as it deposited 1500 meters of sediment in the North Sea Basin. Clicking on the back button on your browser gives more information about the delta and provides a link to an accompanying journal article.

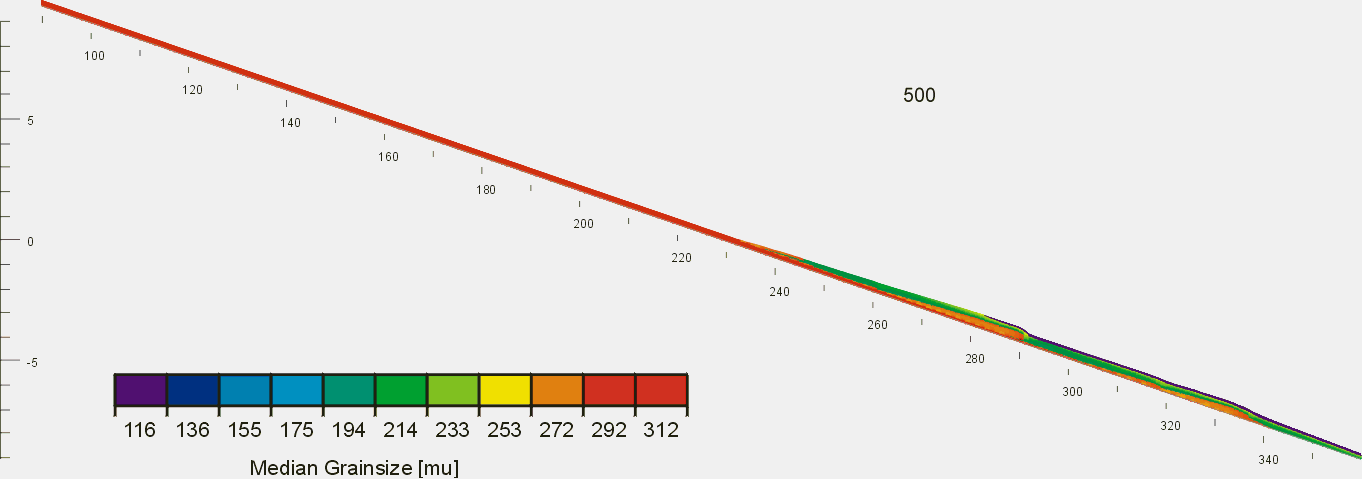

This INSTAAR animation, derived from numerical simulation, depicts Holocene evolution of the Volga delta over the last 10,000 years. The animation shows how the depocentre of the delta migrated up to 120 km along the coast of the Caspian Sea.
